WLB92ZCB1100PBQMB Banner Electronic Components
Part#:WLB92ZCB1100PBQMB
Manufacturer:Banner
Product Lifecycle:Active
Get a quick Quote!

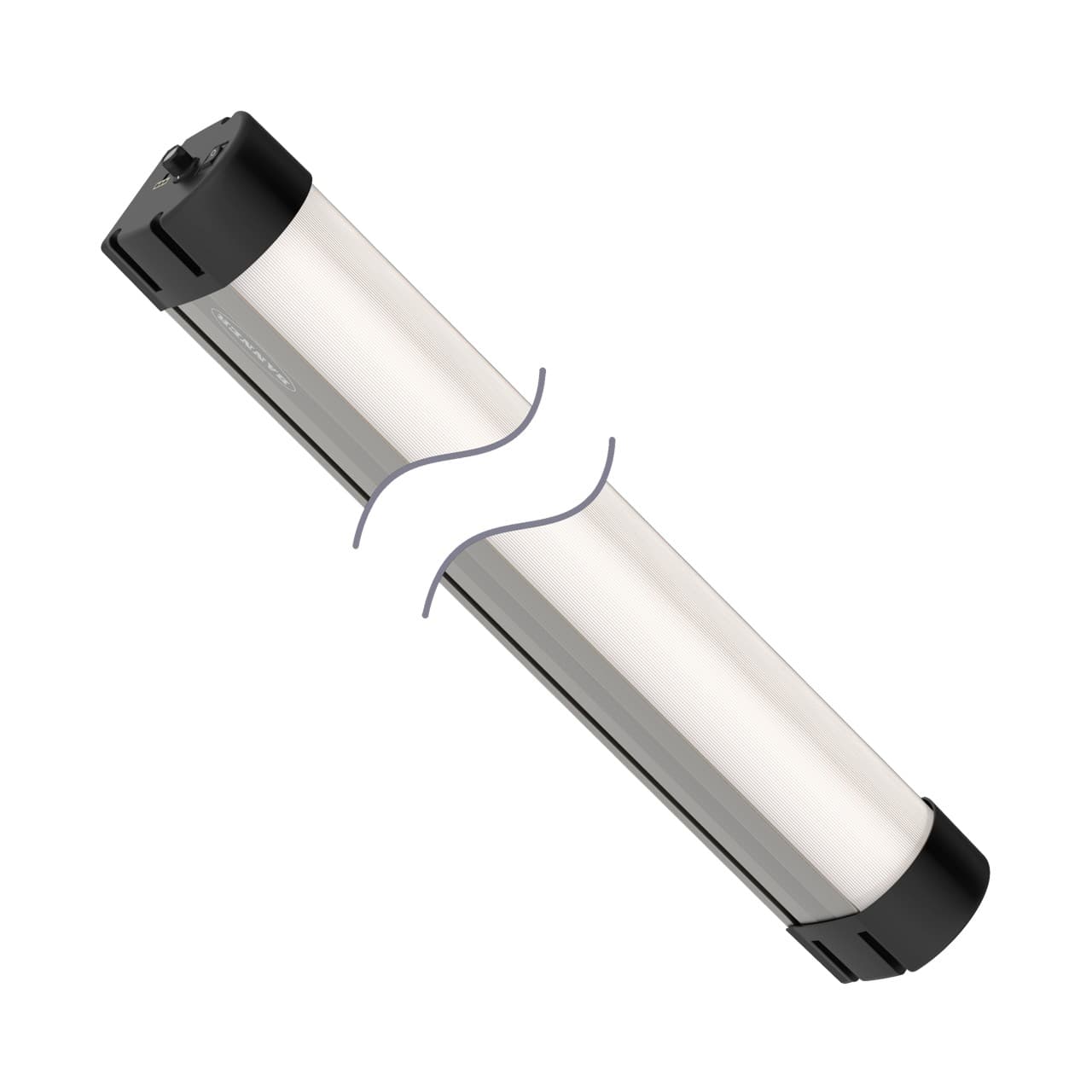

Banner Engineering WLB92ZCB1100PBQMB is a cascadable industrial large ultra-bright LED task light strip/bar designed for a variety of lighting tasks. It features type B power cord with 1-color blue LED illumination and operates on a supply voltage of 100Vac-277Vac, accommodating 120Vac, 220Vac, 230Vac, and 240Vac. The dimensions of this product are L1100mm x W92mm, constructed with a polycarbonate (PC) diffused window and an aluminium housing for durability. It comes pre-wired with a 1.8m / 5.9ft power cord terminated with a plug suitable for North & Central America, Japan, and Taiwan. The linear lighting shape of this task light is designed for surface or wall mounting, offering a degree of protection rated at IP40. It can operate in ambient air temperatures ranging from -40°C to +45°C and includes 1 x digital input (100-240Vac) for color control.
About the manufacturer: Banner is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the WLB92ZCB1100PBQMB Banner price in the box on the right side or send a quick quote.
Product Details
- Mounting Thread No Thread
- Product Size (mm) 92
- Connection Integral QD
- Dimming Option Dimmer Knob
- Max Op. Temperature (°C) 45
- Min Op. Temperature (°C) -40
- Feature: Chemical Resistant No
- Pro-Editor Compatible (Discrete) No
- Housing Style Linear Strip
- Power AC
- Lumens Color 1 840
- Feature: Hazardous Area No
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Number of Input Pins/Conductors 3
- Primary Window Material Polycarbonate Diffused
- Color Option 1 Blue
- Illuminated Length (LxWxH mm) 1097.0
- Feature: Audible No
- Number of Colors / Segments 1
- Supply Voltage 100-277 V ac
- Storage Temp (°C) -40 to 70
- Wireless No
- Primary Housing Material Aluminum
- Color 1 - Wavelength/Color Temp/Coordinates 470 nm
- Illumination Switch Function O=OFF; I=ON
- Modbus RTU No
- Power Source AC
- Color Technology Standard LED
- Environmental Rating IP40
- IO Link No
- Illumination Yes
- Animation Option 1 Solid On
- Physical Dimensions (LxWxH or DxH mm) 1220.0 x 97.0 x 104.0
- Feature: Cascade Yes
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
1-year warranty
