WLB92ZC550PBQMB Banner Light Bars
Part#:WLB92ZC550PBQMB
Manufacturer:Banner
Alt. Part#:93262
Product Lifecycle:Active
Get a quick Quote!
WLB92 Work Light Bar; Switched On/Off; Dimming Potentiometer; Length: 550 mm; Voltage: 100-277 V ac; Environmental Rating: IP40; Color: White; Cascadable; QD - Includes Type B Power cord; Diffuse window
About the manufacturer: Banner is one of the manufacturers that offers Light Bars that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the WLB92ZC550PBQMB Banner price in the box on the right side or send a quick quote.
Product Details
- Weight3175.144 g
- Country Of OriginMX
- Mounting Thread No Thread
- Modbus RTU No
- Product Size (mm) 92
- Environmental Rating IP40
- Illumination Switch Function O=OFF; I=ON
- Number of Colors / Segments 1
- Max Op. Temperature (°C) 50
- Feature: Hazardous Area No
- Illumination Yes
- Color 1 - Wavelength/Color Temp/Coordinates 5000K (Daylight)
- Storage Temp (°C) -40 to 70
- Wireless No
- Color Technology Standard LED
- Power AC
- Dimming Option Dimmer Knob
- Feature: Audible No
- Power Source AC
- Color Option 1 White
- Number of Input Pins/Conductors 3
- IO Link No
- Housing Style Linear Strip
- Connection Integral QD
- Lumens Color 1 3510
- Feature: Chemical Resistant No
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Physical Dimensions (LxWxH or DxH mm) 665.0 x 97.0 x 104.0
- Min Op. Temperature (°C) -35
- Feature: Quick Disconnect Yes
- Primary Housing Material Aluminum
- Animation Option 1 Solid On
- Supply Voltage 100-277 V ac
- Feature: Cascade Yes
- Illuminated Length (LxWxH mm) 542.0
- Primary Window Material Polycarbonate Diffused
- Pro-Editor Compatible (Discrete) No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
WLB92ZC550PBQMB Description

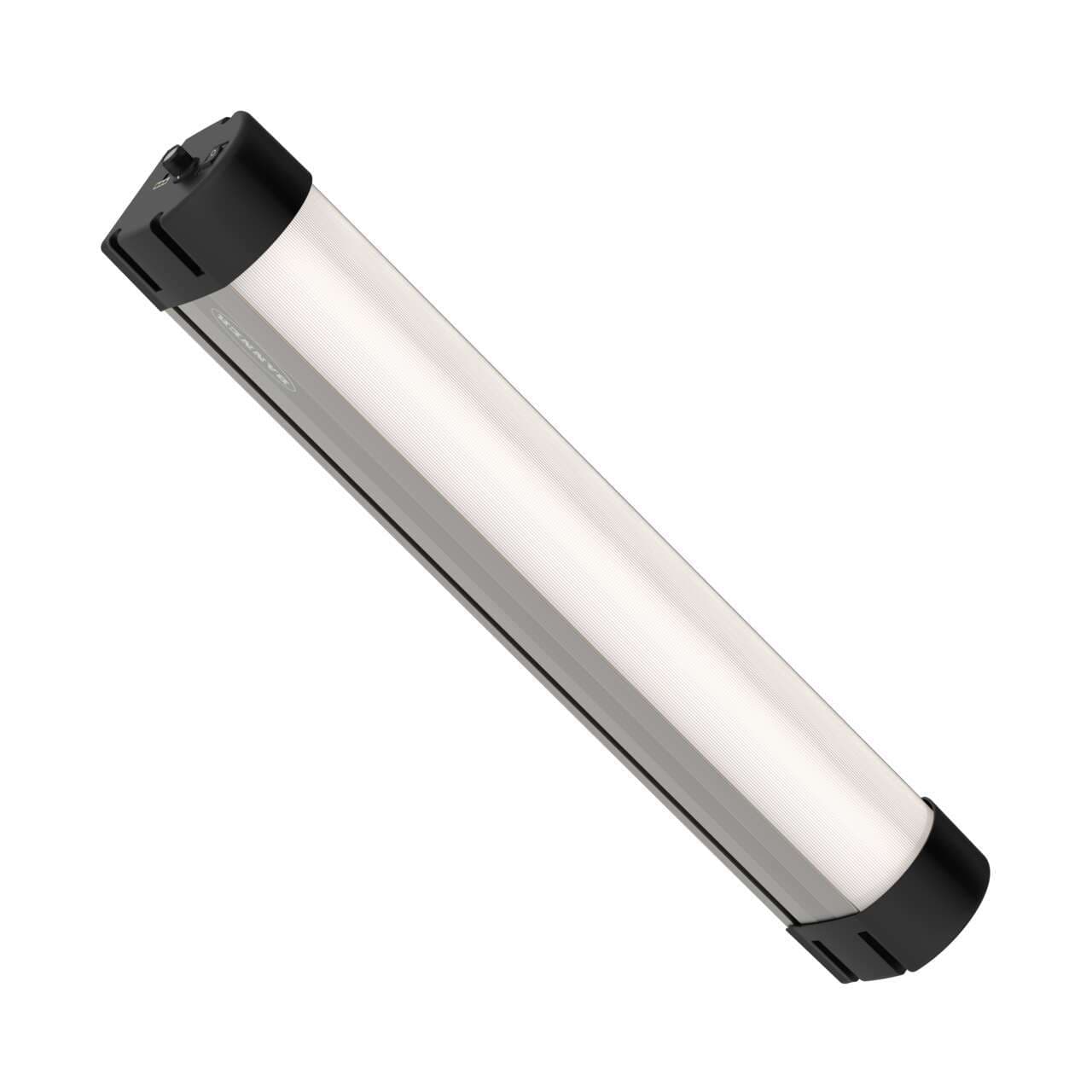

Banner Engineering WLB92ZC550PBQMB is a cascadable industrial large ultra-bright LED task light strip/bar designed for a variety of lighting needs. It features type B power cord 1-color Daylight White (DW) LED illumination, suitable for providing clear visibility in industrial environments. This task light operates on a supply voltage range of 100Vac-277Vac, accommodating multiple international standards such as 120Vac, 220Vac, 230Vac, and 240Vac. The dimensions of this product are L550mm x W92mm, constructed with a polycarbonate (PC) diffused window and an aluminium housing for durability. It comes pre-wired with a 1.8m / 5.9ft power cord terminated with a plug compatible in North & Central America, Japan, and Taiwan. The linear lighting shape of this product, combined with an IP40 degree of protection, makes it suitable for surface or wall mounting in various settings. It can operate within an ambient air temperature range of -35°C to +50°C and includes 1 x digital input (100-240Vac) for color control, enhancing its versatility in task lighting applications.
Related documents WLB92ZC550PBQMB Specs
