T18SP6RQ Banner Electronic Components
Part#:T18SP6RQ
Manufacturer:Banner
Product Lifecycle:Active
Get a quick Quote!

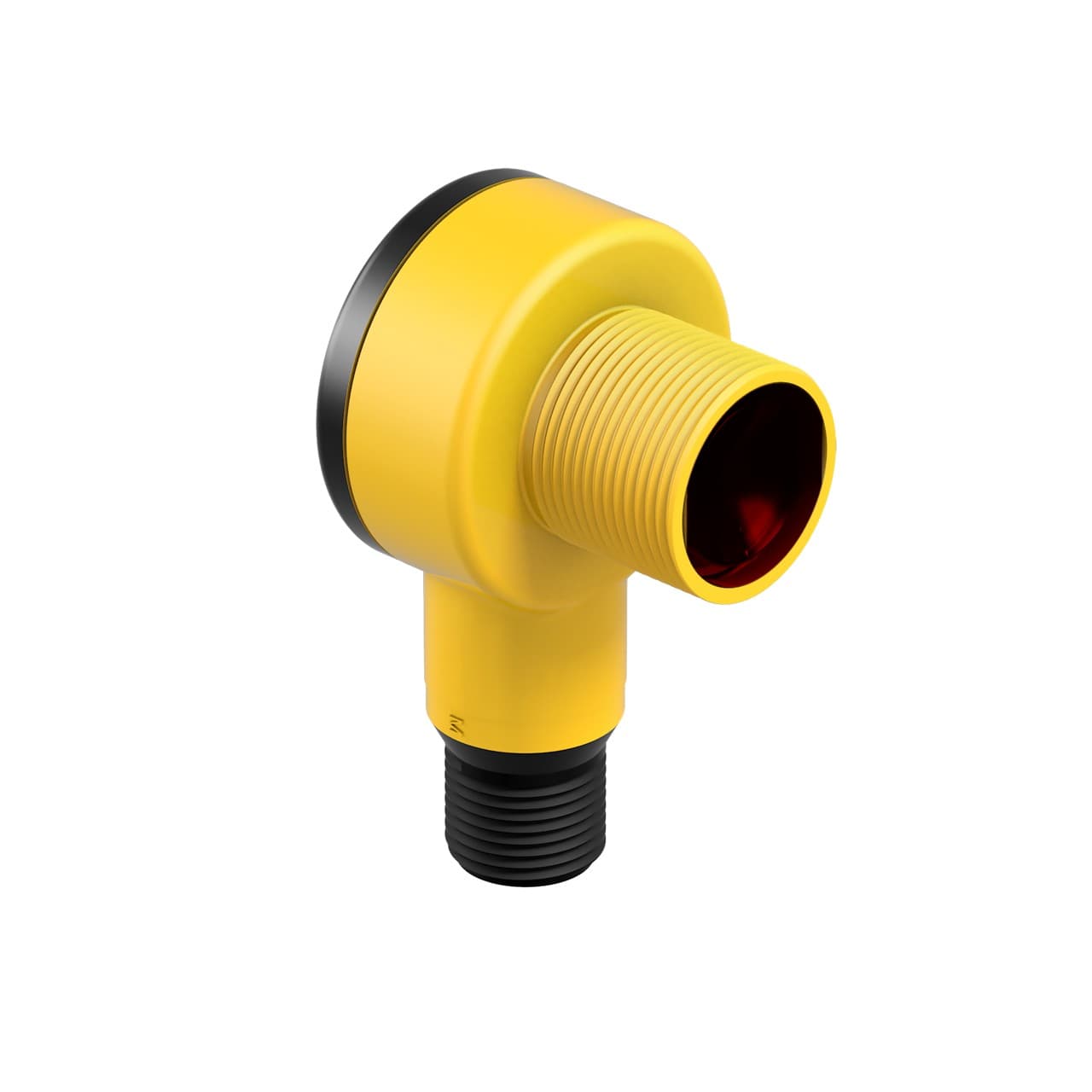

Photo-electric sensor receiver with through-beam system / opposed mode - Banner Engineering (EZ-BEAM series - T18 series) - Part #33422 - Sensing range 20m - Infrared (IR) light (950nm) - 1 x digital output (PNP transistor) (Light-ON or Dark-ON operation)
About the manufacturer: Banner is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the T18SP6RQ Banner price in the box on the right side or send a quick quote.
Product Details
- Main function Sensor (Photo-electric)
- Wavelength 950 nm
- Thread size M18
- Operating mode Light-ON Dark-ON
- Material thermoplastic housing Polycarbonate lns.
- Light Color Infrared (IR)
- Mounting mode Threaded mount
- Order code / Manufacturer SKU 33422
- Primary brand Banner Engineering
- Functions Photo-electric sensor receiver green LED (power ON) amber LED (output state)
- Shape Cylindrical smooth
- Response time 3ms / 0.003 s
- Ambient air temperature for operation -40...+70 °C
- Sub-range name T18 series
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Design through-beam system / opposed mode
- Connection type Pre-equipped with 4-pin Euro-style M12 connector
- Digital outputs 1 x digital output (PNP transistor)
- Compliant with standard(s) cULus CSA CE
- Product series / family name EZ-BEAM series
- Sensing distance 20m
- Degree of protection IP67 IP69K NEMA 6P
- Input/Output Discrete
- Special Feature: Remote Teach No
- Max Op. Relative Humidity [%] 90% @ 50°C
- Feature: Health/ Marginal Signal Output Yes
- Sensing Beam Infrared LED
- Power Supply/Supply Voltage 10-30 V dc
- Delay at Power-up (ms) 100
- Indicator LEDs
- DeviceNet No
- Outputs PNP
- Min Op. Temp. (°C) -40
- Adjustments N/A
- Feature: Encapsulated Yes
- Max Sensing Distance (mm) 20000
- Quick Disconnect Type M12 (Euro)
- Lens Material Polycarbonate
- Feature: Ecolab Certified Yes
- Power DC
- Max Op. Temp. (°C) 70
- Special Feature: Intrinsically Safe No
- Feature: Hazardous Area No
- Primary Housing Material Thermoplastic
- Connection Integral QD
- NEMA Rating NEMA 6P
- Feature: Timing (Hold/Delay) No
- Housing Style Barrel
- Output response time (ms) 3 ON/1.5 OFF
- Repeatability (µs) 375
- Barrel Diameter (mm) 18
- Feature: Chemical Resistant Yes
- Sensing Mode (Detailed) Receiver
- Special Feature: Water Detection No
- IP Rating IP67, IP69
- Sensing Mode (General) Opposed
- Operation Light/Dark Operate
- Number of Pins 4
- Feature: Washdown Rated Yes
- Feature: Audible No
- IO Link No
- Opposed Mode Emitter/Receiver Receiver
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents T18SP6RQ Specs
1-year warranty
