T18SP6FF100 Banner Electronic Components
Part#:T18SP6FF100
Manufacturer:Banner
Product Lifecycle:Active
Get a quick Quote!

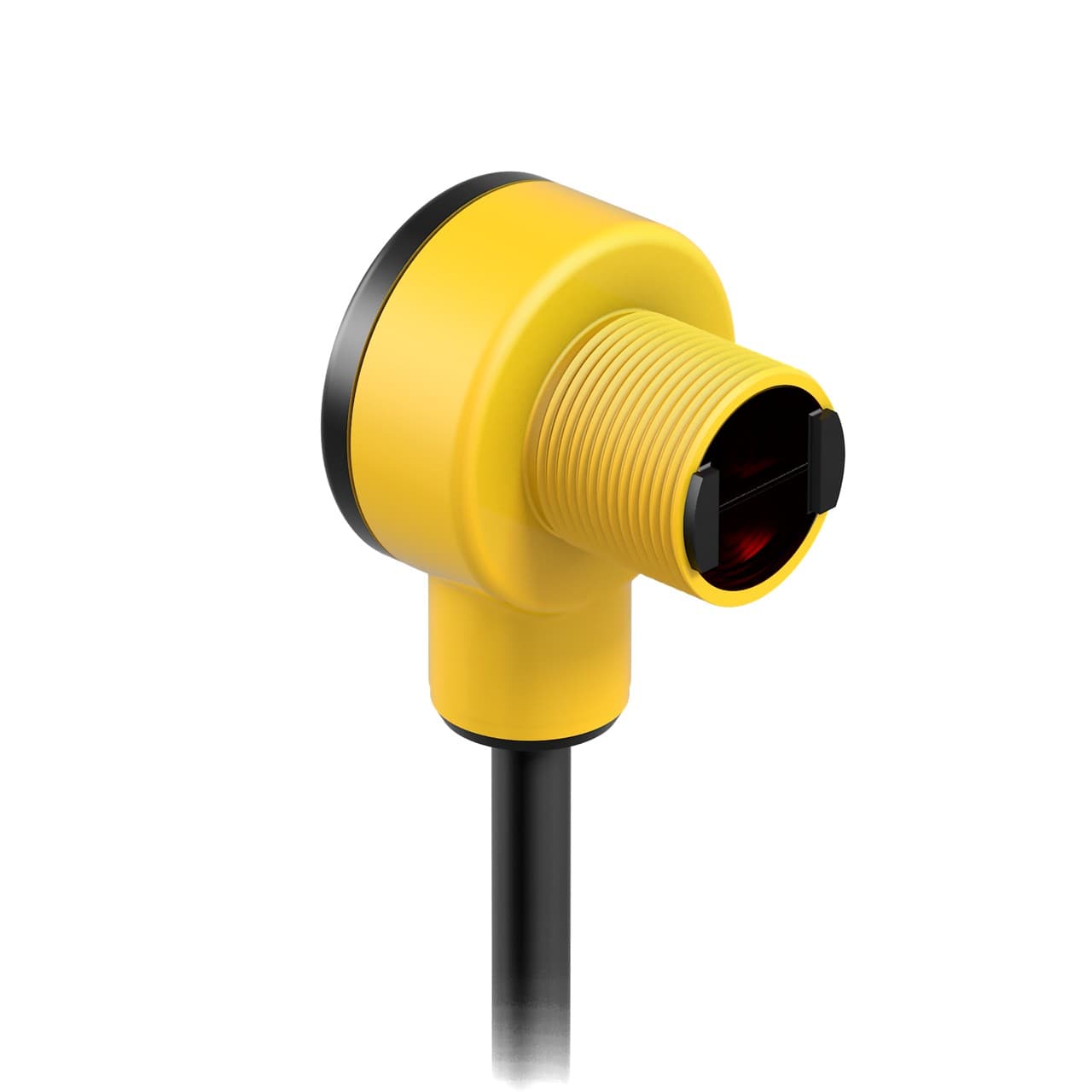

Fixed-field photo-electric sensor with background suppression system - Banner Engineering (EZ-BEAM series - T18 series) - Part #32471 - Sensing range 100mm - Infrared (IR) light (880nm) - 1 x digital output (PNP transistor) (Light-ON or Dark-ON operation)
About the manufacturer: Banner is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the T18SP6FF100 Banner price in the box on the right side or send a quick quote.
Product Details
- Digital outputs 1 x digital output (PNP transistor)
- Mounting mode Threaded mount
- Material thermoplastic housing Acrylic lns.
- Thread size M18
- Operating mode Light-ON Dark-ON
- Ambient air temperature for operation -40...+70 °C
- Connection type Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
- Degree of protection IP67 IP69K NEMA 6P
- Compliant with standard(s) cULus CSA CE
- Sub-range name T18 series
- Response time 3ms / 0.003 s
- Order code / Manufacturer SKU 32471
- Main function Sensor (Photo-electric)
- Sensing distance 100mm
- Product series / family name EZ-BEAM series
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Light Color Infrared (IR)
- Primary brand Banner Engineering
- Functions Fixed-field photo-electric sensor green LED (power ON) amber LED (output state)
- Wavelength 880 nm
- Design background suppression system
- Shape Cylindrical smooth
- Max Op. Relative Humidity [%] 90% @ 50°C
- Feature: Encapsulated Yes
- Max Sensing Distance (mm) 100
- Special Feature: Intrinsically Safe No
- NEMA Rating NEMA 6P
- Feature: Ecolab Certified Yes
- Input/Output Discrete
- Output response time (ms) 3
- IP Rating IP67, IP69
- Feature: Washdown Rated Yes
- Sensing Beam Infrared LED
- Operation Light/Dark Operate
- Outputs PNP
- Lens Material Acrylic
- Feature: Audible No
- Sensing Mode (Detailed) Background Suppression (Fixed)
- Cable Length (m) 2
- Min Op. Temp. (°C) -40
- Number of Pins 4
- Feature: Timing (Hold/Delay) No
- Repeatability (µs) 750
- Indicator LEDs
- IO Link No
- Housing Style Barrel
- Connection Cable
- Special Feature: Water Detection No
- Barrel Diameter (mm) 18
- Feature: Chemical Resistant Yes
- Power DC
- Special Feature: Remote Teach No
- Adjustments N/A
- Feature: Hazardous Area No
- Primary Housing Material Thermoplastic
- Quick Disconnect Type No QD
- Delay at Power-up (ms) 100
- Opposed Mode Emitter/Receiver N/A
- Feature: Health/ Marginal Signal Output Yes
- Sensing Mode (General) Proximity
- Power Supply/Supply Voltage 10-30 V dc
- Max Op. Temp. (°C) 70
- DeviceNet No
