T18SP6LPQ Banner Electronic Components
Part#:T18SP6LPQ
Manufacturer:Banner
Product Lifecycle:Active
Get a quick Quote!

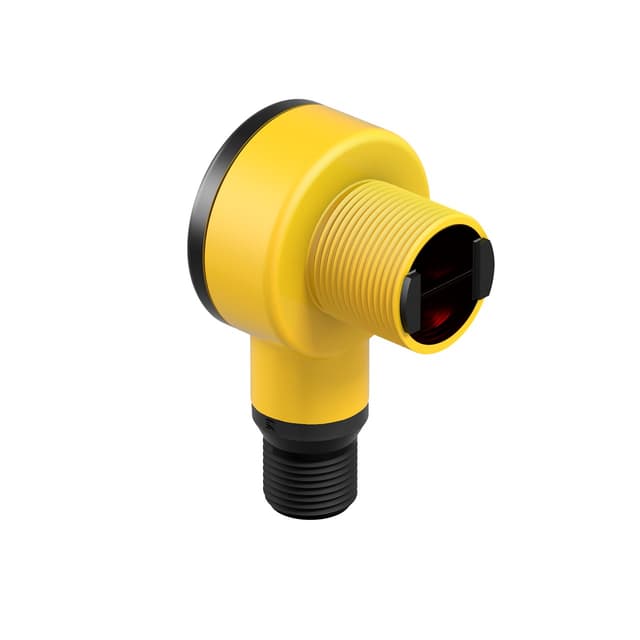

Polarized photo-electric sensor with retro-reflective mode - Banner Engineering (EZ-BEAM series - T18 series) - Part #33417 - Sensing range 2m - Visible red light (680nm) - 1 x digital output (PNP transistor) (Light-ON or Dark-ON operation) - Supply volta
About the manufacturer: Banner is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the T18SP6LPQ Banner price in the box on the right side or send a quick quote.
Product Details
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Connection type Pre-equipped with 4-pin Euro-style M12 connector
- Degree of protection IP67 IP69K NEMA 6P
- Sub-range name T18 series
- Thread size M18
- Digital outputs 1 x digital output (PNP transistor)
- Compliant with standard(s) cULus CSA CE
- Material thermoplastic housing Acrylic lns.
- Light Color Visible red
- Operating mode Light-ON Dark-ON
- Ambient air temperature for operation -40...+70 °C
- Design retro-reflective mode
- Mounting mode Threaded mount
- Response time 3ms / 0.003 s
- Order code / Manufacturer SKU 33417
- Primary brand Banner Engineering
- Main function Sensor (Photo-electric)
- Sensing distance 2m
- Product series / family name EZ-BEAM series
- Functions Polarized photo-electric sensor green LED (power ON) amber LED (output state)
- Wavelength 680 nm
- Shape Cylindrical smooth
- Max Sensing Distance (mm) 2000
- Quick Disconnect Type M12 (Euro)
- Delay at Power-up (ms) 100
- Feature: Timing (Hold/Delay) No
- Connection Integral QD
- Repeatability (µs) 750
- Opposed Mode Emitter/Receiver N/A
- DeviceNet No
- Primary Housing Material Thermoplastic
- Min Op. Temp. (°C) -40
- Lens Material Acrylic
- Feature: Hazardous Area No
- Input/Output Discrete
- Max Op. Temp. (°C) 70
- IP Rating IP67, IP69
- Feature: Washdown Rated Yes
- IO Link No
- Sensing Mode (General) Retroreflective
- Operation Light/Dark Operate
- Number of Pins 4
- Barrel Diameter (mm) 18
- Feature: Audible No
- Power DC
- Power Supply/Supply Voltage 10-30 V dc
- Special Feature: Remote Teach No
- Adjustments N/A
- Feature: Health/ Marginal Signal Output Yes
- Housing Style Barrel
- Output response time (ms) 3
- Max Op. Relative Humidity [%] 90% @ 50°C
- Feature: Encapsulated Yes
- Sensing Mode (Detailed) Polarized
- Special Feature: Intrinsically Safe No
- NEMA Rating NEMA 6P
- Feature: Ecolab Certified Yes
- Outputs PNP
- Sensing Beam Visible Red LED
- Special Feature: Water Detection No
- Indicator LEDs
- Feature: Chemical Resistant Yes
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents T18SP6LPQ Specs
1-year warranty
