T18SN6FF25 Banner Electronic Components
Part#:T18SN6FF25
Manufacturer:Banner
Product Lifecycle:Active
Get a quick Quote!

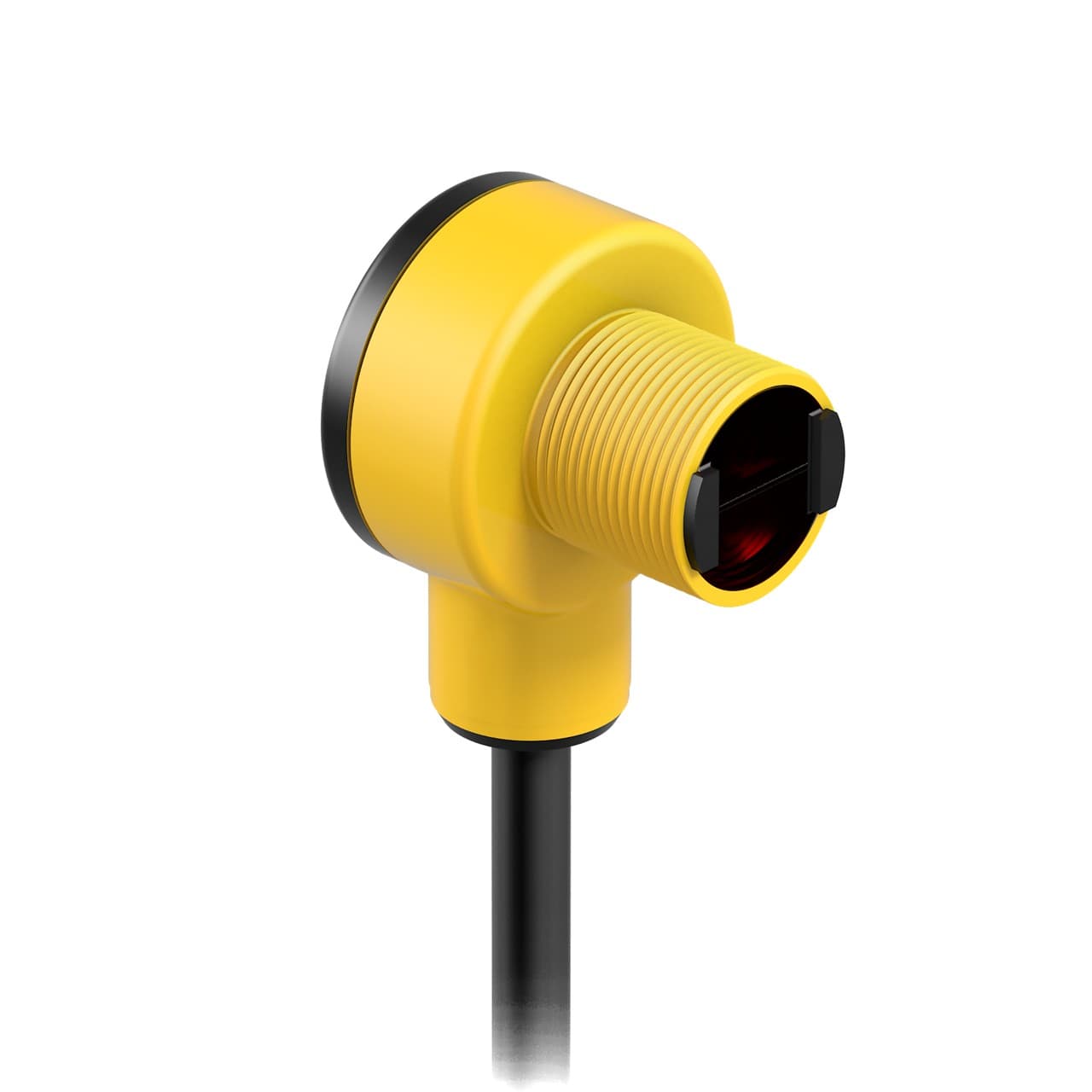

Fixed-field photo-electric sensor with background suppression system - Banner Engineering (EZ-BEAM series - T18 series) - Part #58110 - Sensing range 25mm - Infrared (IR) light (880nm) - 1 x digital output (NPN transistor) (Light-ON or Dark-ON operation)
About the manufacturer: Banner is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the T18SN6FF25 Banner price in the box on the right side or send a quick quote.
Product Details
- Functions Fixed-field photo-electric sensor green LED (power ON) amber LED (output state)
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Mounting mode Threaded mount
- Digital outputs 1 x digital output (NPN transistor)
- Compliant with standard(s) cULus CSA CE
- Sub-range name T18 series
- Sensing distance 25mm
- Wavelength 880 nm
- Operating mode Light-ON Dark-ON
- Ambient air temperature for operation -40...+70 °C
- Primary brand Banner Engineering
- Light Color Infrared (IR)
- Degree of protection IP67 IP69K NEMA 6P
- Product series / family name EZ-BEAM series
- Thread size M18
- Response time 3ms / 0.003 s
- Main function Sensor (Photo-electric)
- Design background suppression system
- Shape Cylindrical smooth
- Connection type Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
- Material thermoplastic housing Acrylic lns.
- Order code / Manufacturer SKU 58110
- Power DC
- NEMA Rating NEMA 6P
- Feature: Ecolab Certified Yes
- Housing Style Barrel
- Operation Light/Dark Operate
- Number of Pins 4
- Opposed Mode Emitter/Receiver N/A
- Max Sensing Distance (mm) 25
- Special Feature: Intrinsically Safe No
- Adjustments N/A
- Feature: Chemical Resistant Yes
- Sensing Mode (Detailed) Background Suppression (Fixed)
- Outputs NPN
- Special Feature: Remote Teach No
- Indicator LEDs
- IO Link No
- Sensing Mode (General) Proximity
- Connection Cable
- Lens Material Acrylic
- Feature: Audible No
- Cable Length (m) 2
- Min Op. Temp. (°C) -40
- Delay at Power-up (ms) 100
- Barrel Diameter (mm) 18
- Feature: Health/ Marginal Signal Output Yes
- Primary Housing Material Thermoplastic
- Power Supply/Supply Voltage 10-30 V dc
- Special Feature: Water Detection No
- Feature: Washdown Rated Yes
- Input/Output Discrete
- Quick Disconnect Type No QD
- Repeatability (µs) 750
- Feature: Encapsulated Yes
- Sensing Beam Infrared LED
- Max Op. Temp. (°C) 70
- IP Rating IP67, IP69
- Feature: Hazardous Area No
- Output response time (ms) 3
- Max Op. Relative Humidity [%] 90% @ 50°C
- Feature: Timing (Hold/Delay) No
- DeviceNet No
