T18SP6FF100Q Banner Electronic Components
Part#:T18SP6FF100Q
Manufacturer:Banner
Product Lifecycle:Active
Get a quick Quote!

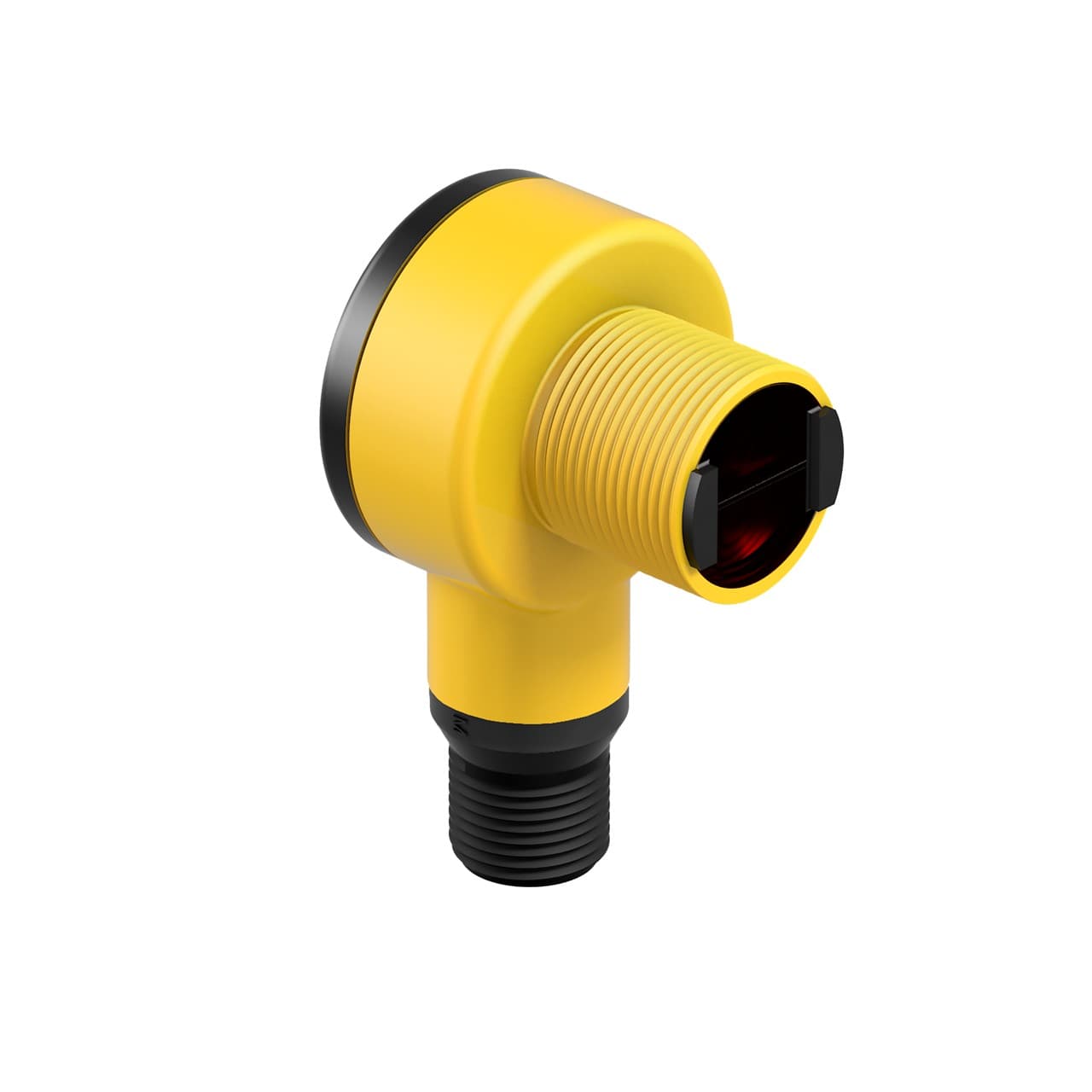

Fixed-field photo-electric sensor with background suppression system - Banner Engineering (EZ-BEAM series - T18 series) - Part #33415 - Sensing range 100mm - Infrared (IR) light (880nm) - 1 x digital output (PNP transistor) (Light-ON or Dark-ON operation)
About the manufacturer: Banner is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the T18SP6FF100Q Banner price in the box on the right side or send a quick quote.
Product Details
- Primary brand Banner Engineering
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Functions Fixed-field photo-electric sensor green LED (power ON) amber LED (output state)
- Shape Cylindrical smooth
- Digital outputs 1 x digital output (PNP transistor)
- Ambient air temperature for operation -40...+70 °C
- Product series / family name EZ-BEAM series
- Light Color Infrared (IR)
- Mounting mode Threaded mount
- Material thermoplastic housing Acrylic lns.
- Main function Sensor (Photo-electric)
- Sensing distance 100mm
- Connection type Pre-equipped with 4-pin Euro-style M12 connector
- Degree of protection IP67 IP69K NEMA 6P
- Sub-range name T18 series
- Design background suppression system
- Thread size M18
- Response time 3ms / 0.003 s
- Compliant with standard(s) cULus CSA CE
- Wavelength 880 nm
- Operating mode Light-ON Dark-ON
- Order code / Manufacturer SKU 33415
- Max Sensing Distance (mm) 100
- Output response time (ms) 3
- Max Op. Relative Humidity [%] 90% @ 50°C
- Feature: Washdown Rated Yes
- IO Link No
- Power DC
- Connection Integral QD
- Number of Pins 4
- Indicator LEDs
- DeviceNet No
- Outputs PNP
- Special Feature: Intrinsically Safe No
- Adjustments N/A
- Feature: Chemical Resistant Yes
- Operation Light/Dark Operate
- Sensing Mode (Detailed) Background Suppression (Fixed)
- IP Rating IP67, IP69
- Opposed Mode Emitter/Receiver N/A
- Input/Output Discrete
- Special Feature: Remote Teach No
- NEMA Rating NEMA 6P
- Feature: Ecolab Certified Yes
- Primary Housing Material Thermoplastic
- Min Op. Temp. (°C) -40
- Lens Material Acrylic
- Feature: Hazardous Area No
- Housing Style Barrel
- Quick Disconnect Type M12 (Euro)
- Delay at Power-up (ms) 100
- Feature: Timing (Hold/Delay) No
- Sensing Beam Infrared LED
- Power Supply/Supply Voltage 10-30 V dc
- Special Feature: Water Detection No
- Barrel Diameter (mm) 18
- Feature: Audible No
- Sensing Mode (General) Proximity
- Max Op. Temp. (°C) 70
- Repeatability (µs) 750
- Feature: Encapsulated Yes
- Feature: Health/ Marginal Signal Output Yes
