T18SP6LP Banner Electronic Components
Part#:T18SP6LP
Manufacturer:Banner
Product Lifecycle:Active
Get a quick Quote!

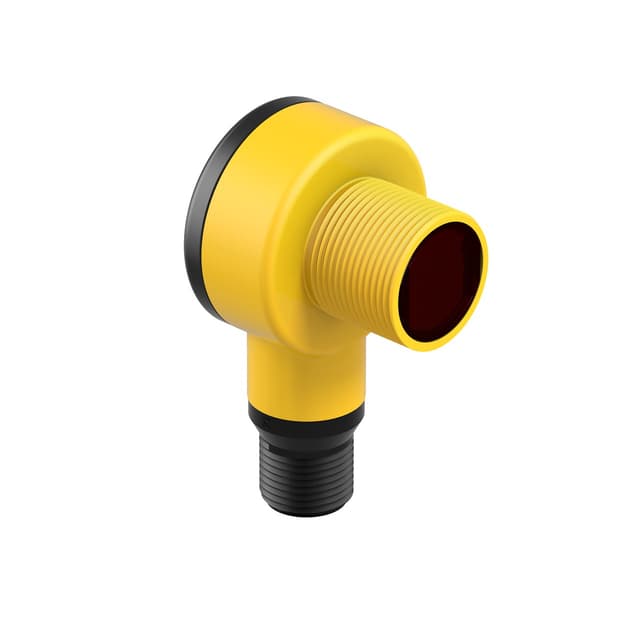

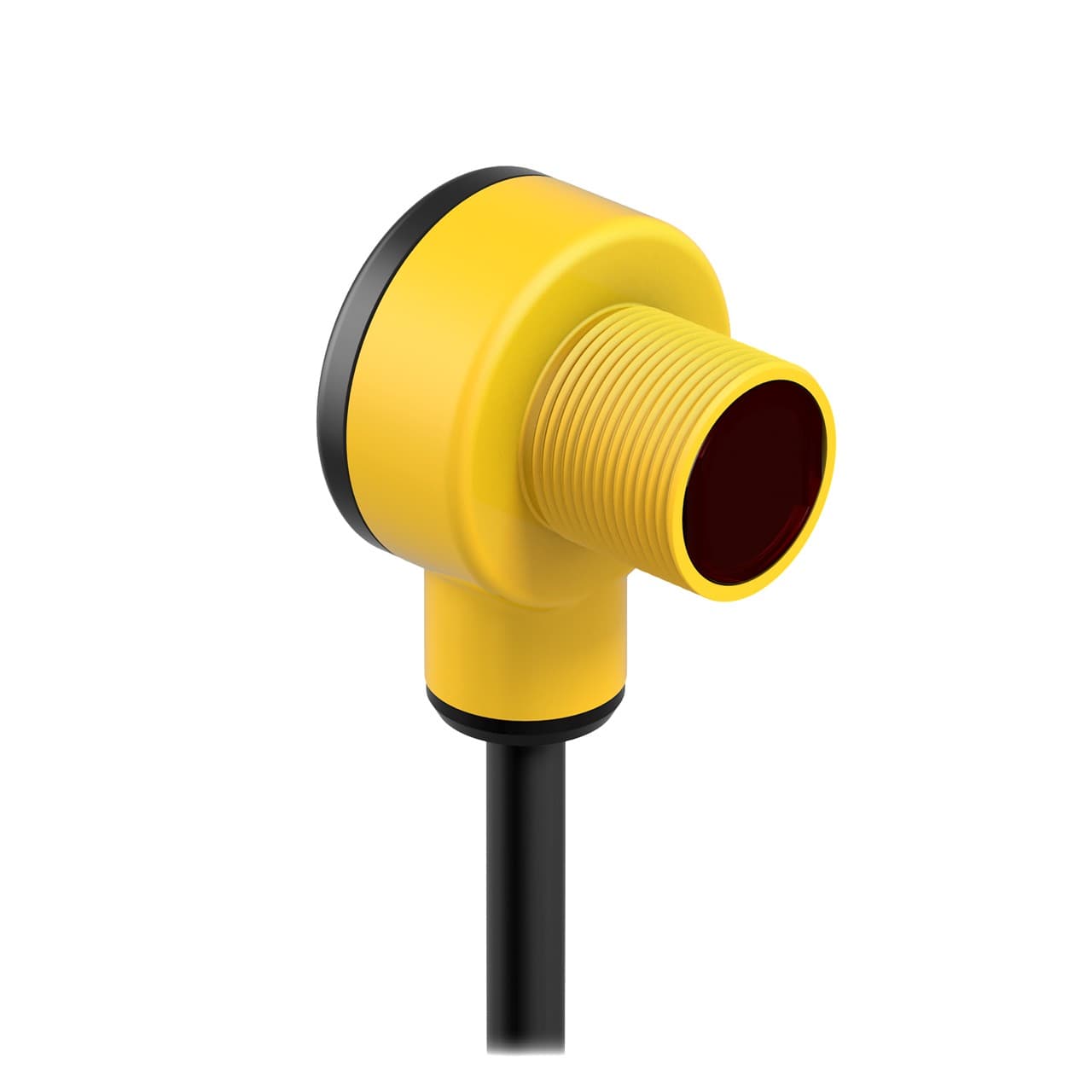

Polarized photo-electric sensor with retro-reflective mode - Banner Engineering (EZ-BEAM series - T18 series) - Part #32472 - Sensing range 2m - Visible red light (680nm) - 1 x digital output (PNP transistor) (Light-ON or Dark-ON operation) - Supply volta
About the manufacturer: Banner is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the T18SP6LP Banner price in the box on the right side or send a quick quote.
Product Details
- Sub-range name T18 series
- Shape Cylindrical smooth
- Response time 3ms / 0.003 s
- Order code / Manufacturer SKU 32472
- Sensing distance 2m
- Connection type Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
- Material thermoplastic housing Acrylic lns.
- Primary brand Banner Engineering
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Light Color Visible red
- Mounting mode Threaded mount
- Degree of protection IP67 IP69K NEMA 6P
- Main function Sensor (Photo-electric)
- Functions Polarized photo-electric sensor green LED (power ON) amber LED (output state)
- Wavelength 680 nm
- Operating mode Light-ON Dark-ON
- Compliant with standard(s) cULus CSA CE
- Product series / family name EZ-BEAM series
- Design retro-reflective mode
- Thread size M18
- Digital outputs 1 x digital output (PNP transistor)
- Ambient air temperature for operation -40...+70 °C
- Input/Output Discrete
- Min Op. Temp. (°C) -40
- Special Feature: Intrinsically Safe No
- Barrel Diameter (mm) 18
- Feature: Chemical Resistant Yes
- Connection Cable
- Number of Pins 4
- Feature: Timing (Hold/Delay) No
- IO Link No
- Max Sensing Distance (mm) 2000
- Sensing Mode (General) Retroreflective
- Special Feature: Remote Teach No
- IP Rating IP67, IP69
- Sensing Mode (Detailed) Polarized
- Max Op. Temp. (°C) 70
- Indicator LEDs
- Lens Material Acrylic
- Sensing Beam Visible Red LED
- Operation Light/Dark Operate
- Repeatability (µs) 750
- Opposed Mode Emitter/Receiver N/A
- Power DC
- Outputs PNP
- Special Feature: Water Detection No
- Max Op. Relative Humidity [%] 90% @ 50°C
- Feature: Encapsulated Yes
- Cable Length (m) 2
- Power Supply/Supply Voltage 10-30 V dc
- Delay at Power-up (ms) 100
- Housing Style Barrel
- Output response time (ms) 3
- Adjustments N/A
- Feature: Audible No
- Primary Housing Material Thermoplastic
- Quick Disconnect Type No QD
- NEMA Rating NEMA 6P
- Feature: Hazardous Area No
- Feature: Washdown Rated Yes
- DeviceNet No
- Feature: Health/ Marginal Signal Output Yes
- Feature: Ecolab Certified Yes
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents T18SP6LP Specs
