T18RW3FF25 Banner Electronic Components
Part#:T18RW3FF25
Manufacturer:Banner
Product Lifecycle:Active
Get a quick Quote!

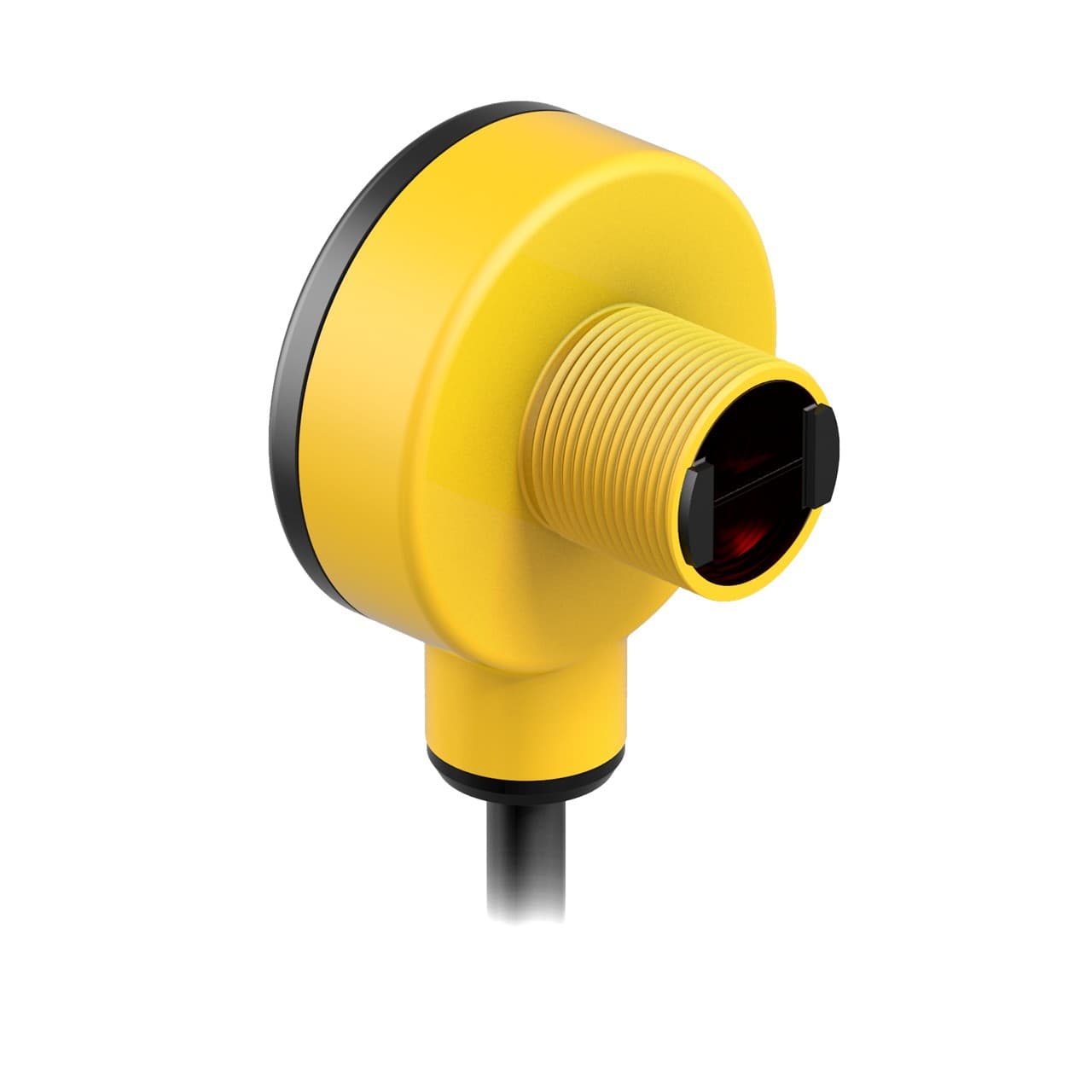

Fixed-field photo-electric sensor with background suppression system - Banner Engineering (EZ-BEAM series - T18 series) - Part #58387 - 40mm diameter - Sensing range 25mm - Infrared (IR) light (880nm) - 1 x digital output (Solid-state AC output; SPST cont
About the manufacturer: Banner is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the T18RW3FF25 Banner price in the box on the right side or send a quick quote.
Product Details
- Sensing distance 25mm
- Thread size M18
- Operating mode Dark-ON
- Ambient air temperature for operation -40...+70 °C
- Sub-range name T18 series
- Primary brand Banner Engineering
- Supply voltage (AC) 20Vac-250Vac (200Vac / 220Vac / 240Vac nom.)
- Shape Cylindrical smooth
- Mounting mode Threaded mount
- Material thermoplastic housing Acrylic lns.
- Main function Sensor (Photo-electric)
- Functions Fixed-field photo-electric sensor green LED (power ON) amber LED (output state)
- Product series / family name EZ-BEAM series
- Design background suppression system
- Wavelength 880 nm
- Connection type Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
- Degree of protection IP67 IP69K NEMA 6P
- Order code / Manufacturer SKU 58387
- Light Color Infrared (IR)
- Response time 16ms / 0.016 s
- Diameter 40mm
- Digital outputs 1 x digital output (Solid-state AC output; SPST contact type)
- Compliant with standard(s) cULus CSA CE
- Primary Housing Material Thermoplastic
- Output response time (ms) 16
- IP Rating IP67, IP69
- Feature: Chemical Resistant Yes
- Cable Length (m) 2
- Max Op. Temp. (°C) 70
- Min Op. Temp. (°C) -40
- Barrel Diameter (mm) 18
- Feature: Timing (Hold/Delay) No
- Power Supply/Supply Voltage 20-250 V ac
- Power AC
- Number of Pins 3
- Feature: Audible No
- Sensing Mode (General) Proximity
- Connection Cable
- Delay at Power-up (ms) 100
- Feature: Ecolab Certified Yes
- IO Link No
- Sensing Beam Infrared LED
- Special Feature: Remote Teach No
- Lens Material Acrylic
- DeviceNet No
- Input/Output Solid-State AC Switch
- Special Feature: Intrinsically Safe No
- Max Op. Relative Humidity [%] 90% @ 50°C
- Indicator LEDs
- Max Sensing Distance (mm) 25
- Operation Dark Operate
- NEMA Rating NEMA 6P
- Feature: Washdown Rated Yes
- Housing Style Barrel
- Quick Disconnect Type No QD
- Repeatability (µs) 4000
- Feature: Encapsulated Yes
- Sensing Mode (Detailed) Background Suppression (Fixed)
- Outputs Solid-State AC Switch
- Special Feature: Water Detection No
- Opposed Mode Emitter/Receiver N/A
- Feature: Hazardous Area No
- Adjustments N/A
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents T18RW3FF25 Specs
1-year warranty
