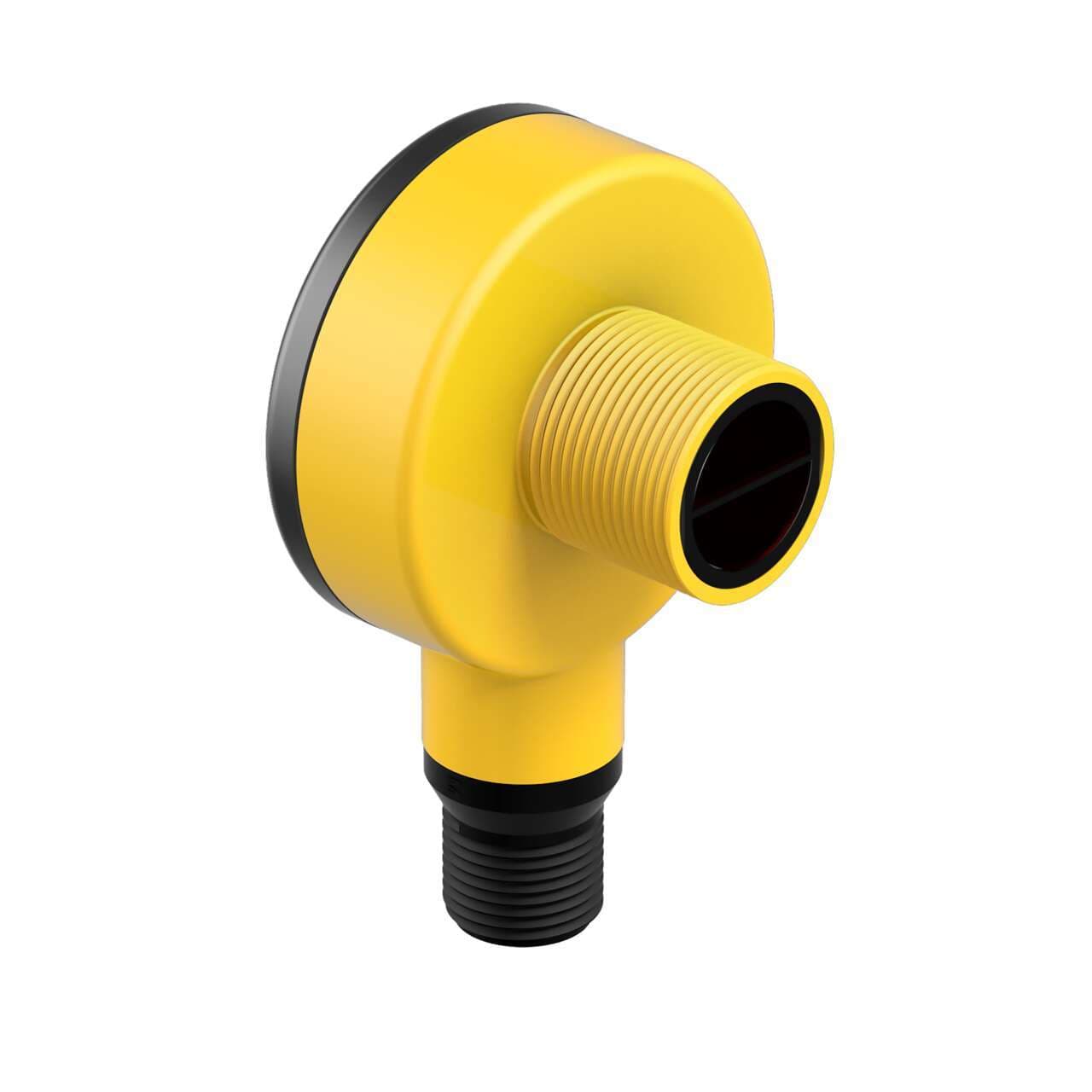

T18RW3DQ1 Banner Proximity Sensors
Part#:T18RW3DQ1
Manufacturer:Banner
Alt. Part#:34925
Product Lifecycle:Active
Get a quick Quote!
EZ-BEAM T18 Series: Diffuse; Range: 300 mm; Input: 20-250 V ac; Output: SPST Solid-state Dark Operate; 4-pin Micro Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the T18RW3DQ1 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight56.699 g
- Country Of OriginUS
- Main function Sensor (Photo-electric)
- Supply voltage (AC) 20Vac-250Vac (200Vac / 220Vac / 240Vac nom.)
- Light Color Infrared (IR)
- Shape Cylindrical smooth
- Digital outputs 1 x digital output (Solid-state AC output; SPST contact type)
- Ambient air temperature for operation -40...+70 °C
- Sub-range name T18 series
- Thread size M18
- Material thermoplastic housing Acrylic lns.
- Primary brand Banner Engineering
- Design diffuse mode
- Diameter 40mm
- Response time 16ms / 0.016 s
- Compliant with standard(s) cULus CSA CE
- Product series / family name EZ-BEAM series
- Functions Photo-electric sensor green LED (power ON) amber LED (output state) potentiometer adjustment
- Wavelength 880 nm
- Connection type Pre-equipped with 4-pin 1/2" Micro connector
- Operating mode Dark-ON
- Sensing distance 300mm
- Mounting mode Threaded mount
- Degree of protection IP67 IP69K NEMA 6P
- Order code / Manufacturer SKU 34925
- Primary Housing Material Thermoplastic
- Operation Dark Operate
- Special Feature: Water Detection No
- Indicator LEDs
- Power AC
- Special Feature: Intrinsically Safe No
- Housing Style Barrel
- Max Op. Temp. (°C) 70
- IP Rating IP67, IP69
- Feature: Timing (Hold/Delay) No
- Sensing Beam Infrared LED
- Connection Integral QD
- Delay at Power-up (ms) 100
- Feature: Washdown Rated Yes
- DeviceNet No
- Outputs Solid-State AC Switch
- Output response time (ms) 16
- Sensing Mode (General) Proximity
- Power Supply/Supply Voltage 20-250 V ac
- NEMA Rating NEMA 6P
- Feature: Ecolab Certified Yes
- Input/Output Solid-State AC Switch
- Special Feature: Remote Teach No
- Adjustments Potentiometer
- Feature: Audible No
- Max Sensing Distance (mm) 300
- Quick Disconnect Type 1/2 in. (Micro)
- Opposed Mode Emitter/Receiver N/A
- Number of Pins 4
- IO Link No
- Sensing Mode (Detailed) Diffuse
- Min Op. Temp. (°C) -40
- Barrel Diameter (mm) 18
- Repeatability (µs) 4000
- Max Op. Relative Humidity [%] 90% @ 50°C
- Feature: Encapsulated Yes
- Lens Material Acrylic
- Feature: Hazardous Area No
- Feature: Chemical Resistant Yes
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
T18RW3DQ1 Description
Banner Engineering T18RW3DQ1 is a photo-electric sensor from the T18 series, designed with a diffuse mode potentiometer adjustment. This sensor features a thermoplastic housing with an acrylic lens and has an M18 cylindrical threaded/barrel shape. It is pre-equipped with a 4-pin 1/2" micro connector for connectivity and operates on a supply voltage ranging from 20Vac to 250Vac (with nominal voltages of 200Vac, 220Vac, and 240Vac). The T18RW3DQ1 offers a threaded mount for installation and can operate within an ambient air temperature range of -40 to +70°C. It boasts a degree of protection rated at IP67, IP69K, and NEMA 6P, ensuring durability in various environments. The sensor has a 40mm diameter, a sensing distance of 300mm, and utilizes infrared light with a wavelength of 880 nm for detection. It features 1 x digital output (Solid-state AC output; SPST contact type) and has a response time of 16ms (0.016 s). The operating mode is Dark-ON, suitable for applications requiring the detection of objects in the absence of light.
