T18RGXPQ Banner Electronic Components
Part#:T18RGXPQ
Manufacturer:Banner
Product Lifecycle:Active
Get a quick Quote!

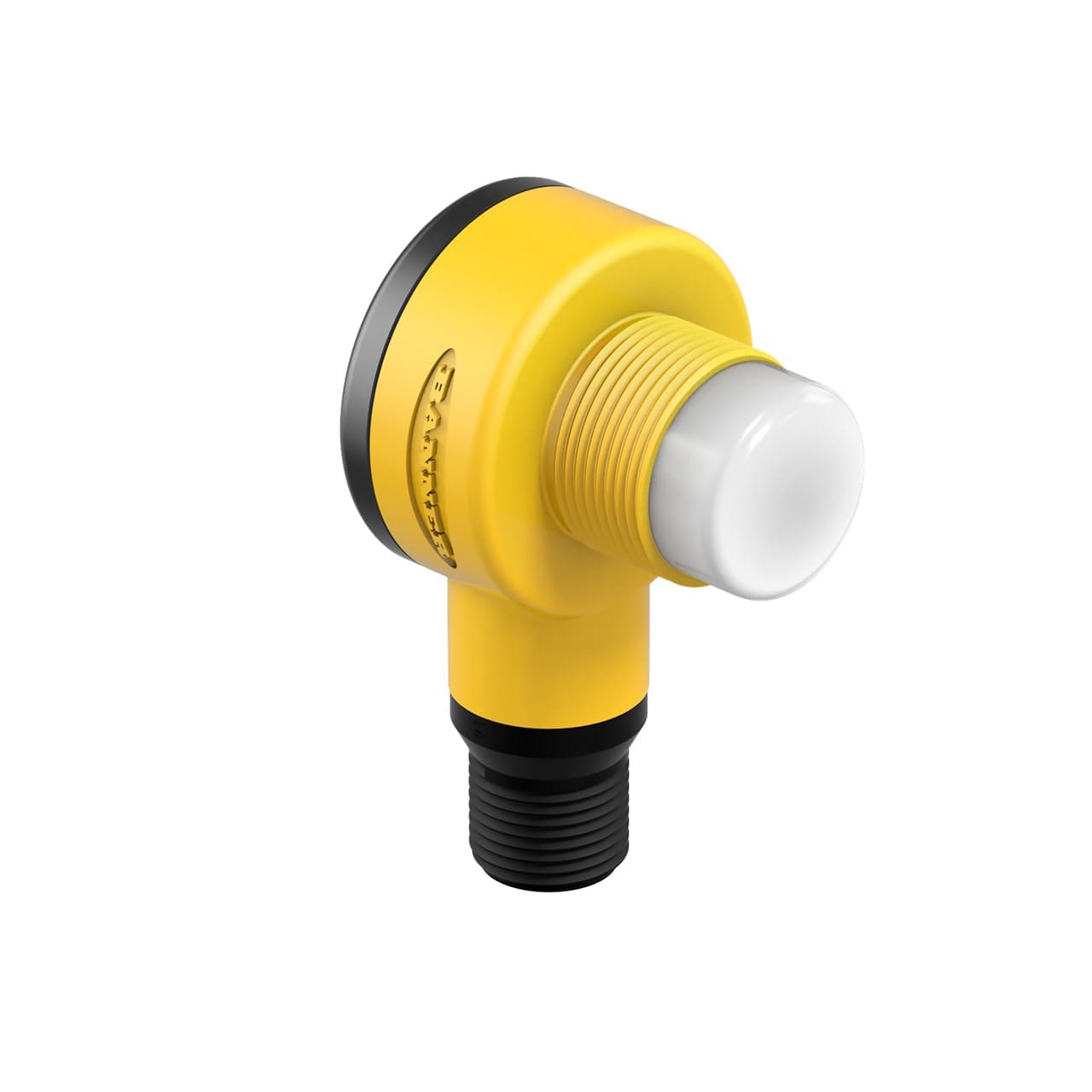

EZ-LIGHT:Right-angle 18 mm Thermoplastic Housing, 2-Color For Use With Sensors, PNP Hookup, Quick-Disconnect Connector; Y Splitter Cable
About the manufacturer: Banner is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the T18RGXPQ Banner price in the box on the right side or send a quick quote.
Product Details
- Housing Style T-Style
- Primary Window Material Thermoplastic Diffused
- Power DC
- Animation Option 1 Solid On
- Max Op. Temperature (°C) 50
- Wireless No
- Indication Yes
- Input Type PNP
- Min Op. Temperature (°C) -40
- Modbus RTU No
- Primary Housing Material Thermoplastic Polyester
- Quick Disconnect Type M12 (Euro)
- Physical Dimensions (LxWxH or DxH mm) 53.5 x 30.1 x 32.4
- Multi-Color Device Single Color On
- Cable Length (m) 2
- Connection Integral QD
- Supply Voltage 10-30 V dc
- IO Link No
- Mounting Thread M18 x 1.0
- Number of Input Pins/Conductors 4
- Application: Photoelectric Sensors Yes
- Number of Colors / Segments 2
- Product Size (mm) 18
- Max Input Response Time (ms) 1
- Feature: Audible No
- Pro-Editor Compatible (Discrete) No
- Color Option 1 Red
- Color Option 2 Green
- Feature: Hazardous Area No
- Feature: Chemical Resistant No
- Power Source DC
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Color Technology Standard LED
- Max Current Color (mA) 25
- Primary Housing Color Yellow
- Environmental Rating IP67
- Feature: Quick Disconnect Yes
