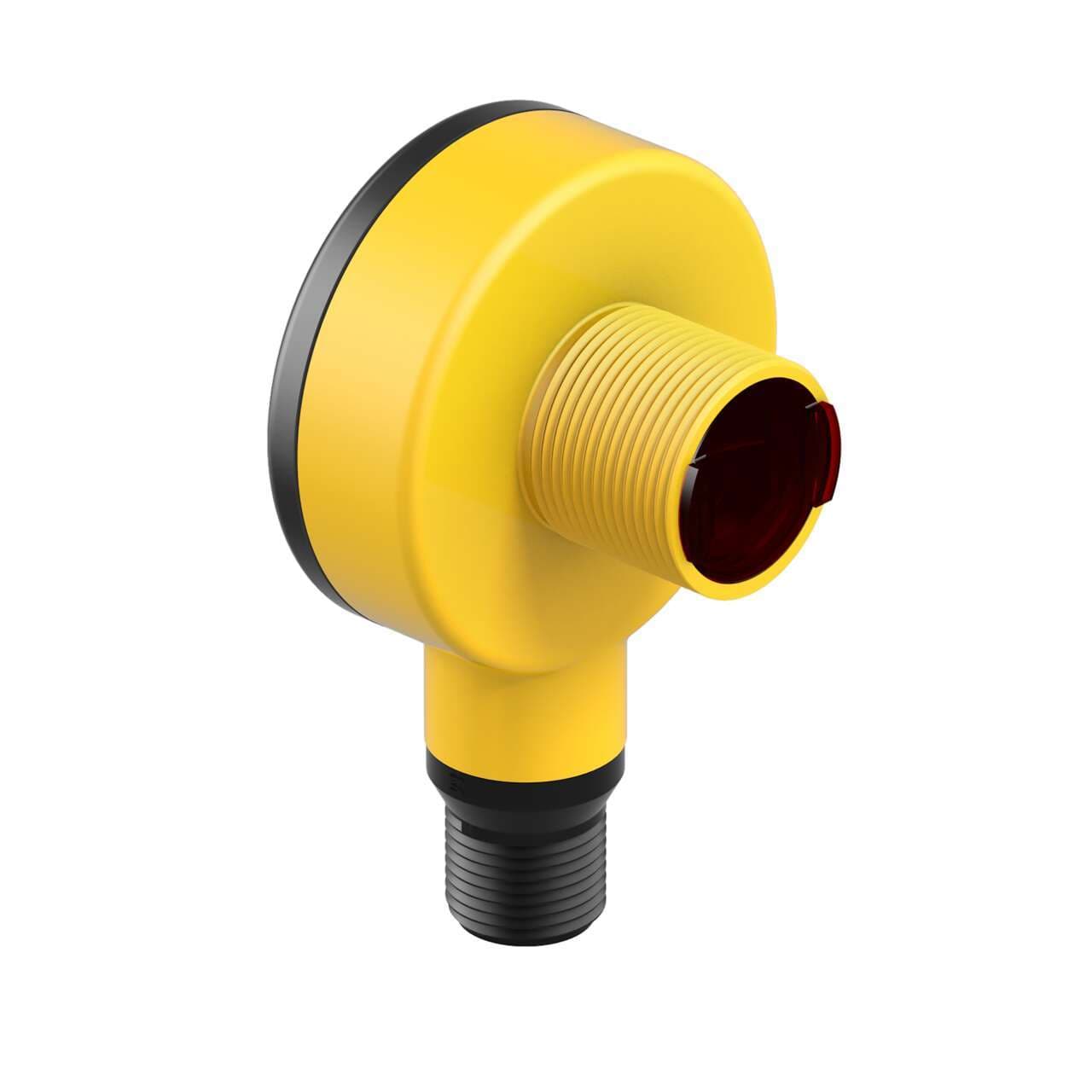

T18RW3FF100Q3 Banner Proximity Sensors
Part#:T18RW3FF100Q3
Manufacturer:Banner
Alt. Part#:36926
Product Lifecycle:Active
Get a quick Quote!
EZ-BEAM T18 Series: Threaded R-Angle Fixed-Field; Range: 0-100 mm Cutoff; Output: Dark Operate; QD uses Turck cordset: WAKW4.5T-2
About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the T18RW3FF100Q3 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight63.50288 g
- Country Of OriginUS
- Product series / family name EZ-BEAM series
- Light Color Infrared (IR)
- Primary brand Banner Engineering
- Design background suppression system
- Mounting mode Threaded mount
- Supply voltage (AC) 20Vac-250Vac (200Vac / 220Vac / 240Vac nom.)
- Wavelength 880 nm
- Response time 16ms / 0.016 s
- Main function Sensor (Photo-electric)
- Functions Fixed-field photo-electric sensor green LED (power ON) amber LED (output state)
- Sensing distance 100mm
- Diameter 40mm
- Operating mode Dark-ON
- Compliant with standard(s) cULus CSA CE
- Order code / Manufacturer SKU 36926
- Sub-range name T18 series
- Shape Cylindrical smooth
- Thread size M18
- Material thermoplastic housing Acrylic lns.
- Connection type Pre-equipped with 5-pin Euro-style M12 connector
- Degree of protection IP67 IP69K NEMA 6P
- Ambient air temperature for operation -40...+70 °C
- Digital outputs 1 x digital output (Solid-state AC output; SPST contact type)
- Primary Housing Material Thermoplastic
- Max Op. Temp. (°C) 70
- Delay at Power-up (ms) 100
- Opposed Mode Emitter/Receiver N/A
- Input/Output Solid-State AC Switch
- Special Feature: Intrinsically Safe No
- Lens Material Acrylic
- Feature: Washdown Rated Yes
- Sensing Beam Infrared LED
- Max Sensing Distance (mm) 100
- Min Op. Temp. (°C) -40
- IP Rating IP67, IP69
- Feature: Timing (Hold/Delay) No
- Feature: Hazardous Area No
- Housing Style Barrel
- Outputs Solid-State AC Switch
- Operation Dark Operate
- NEMA Rating NEMA 6P
- Adjustments N/A
- Feature: Chemical Resistant Yes
- Quick Disconnect Type M12 (Euro)
- Output response time (ms) 16
- Number of Pins 5
- Indicator LEDs
- Feature: Audible No
- Sensing Mode (Detailed) Background Suppression (Fixed)
- Sensing Mode (General) Proximity
- Special Feature: Water Detection No
- Barrel Diameter (mm) 18
- Feature: Encapsulated Yes
- Power Supply/Supply Voltage 20-250 V ac
- Repeatability (µs) 4000
- DeviceNet No
- Power AC
- Connection Integral QD
- Special Feature: Remote Teach No
- Max Op. Relative Humidity [%] 90% @ 50°C
- Feature: Ecolab Certified Yes
- IO Link No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
T18RW3FF100Q3 Description
Banner Engineering T18RW3FF100Q3 is a fixed-field photo-electric sensor within the T18 series, designed with a background suppression system. This sensor features a thermoplastic housing and an acrylic lens, with a diameter of 40mm. It is pre-equipped with a 5-pin Euro-style M12 connector for connectivity. The sensor operates on a supply voltage range of 20Vac-250Vac (with nominal voltages of 200Vac, 220Vac, and 240Vac), and it is designed for threaded mount installation. It can operate within an ambient air temperature range of -40 to +70°C. The T18RW3FF100Q3 offers a degree of protection rated at IP67, IP69K, and NEMA 6P, ensuring durability in various environments. Its shape is an M18 cylindrical threaded/barrel, and it includes 1 x digital output (Solid-state AC output; SPST contact type) for signaling. The sensing distance is set at 100mm, utilizing infrared (IR) light with a wavelength of 880 nm. The response time of the sensor is 16ms / 0.016 s, and it operates in a Dark-ON mode. The thread size for mounting is M18.
