T18RW3DQ3 Banner Electronic Components
Part#:T18RW3DQ3
Manufacturer:Banner
Product Lifecycle:Active
Get a quick Quote!

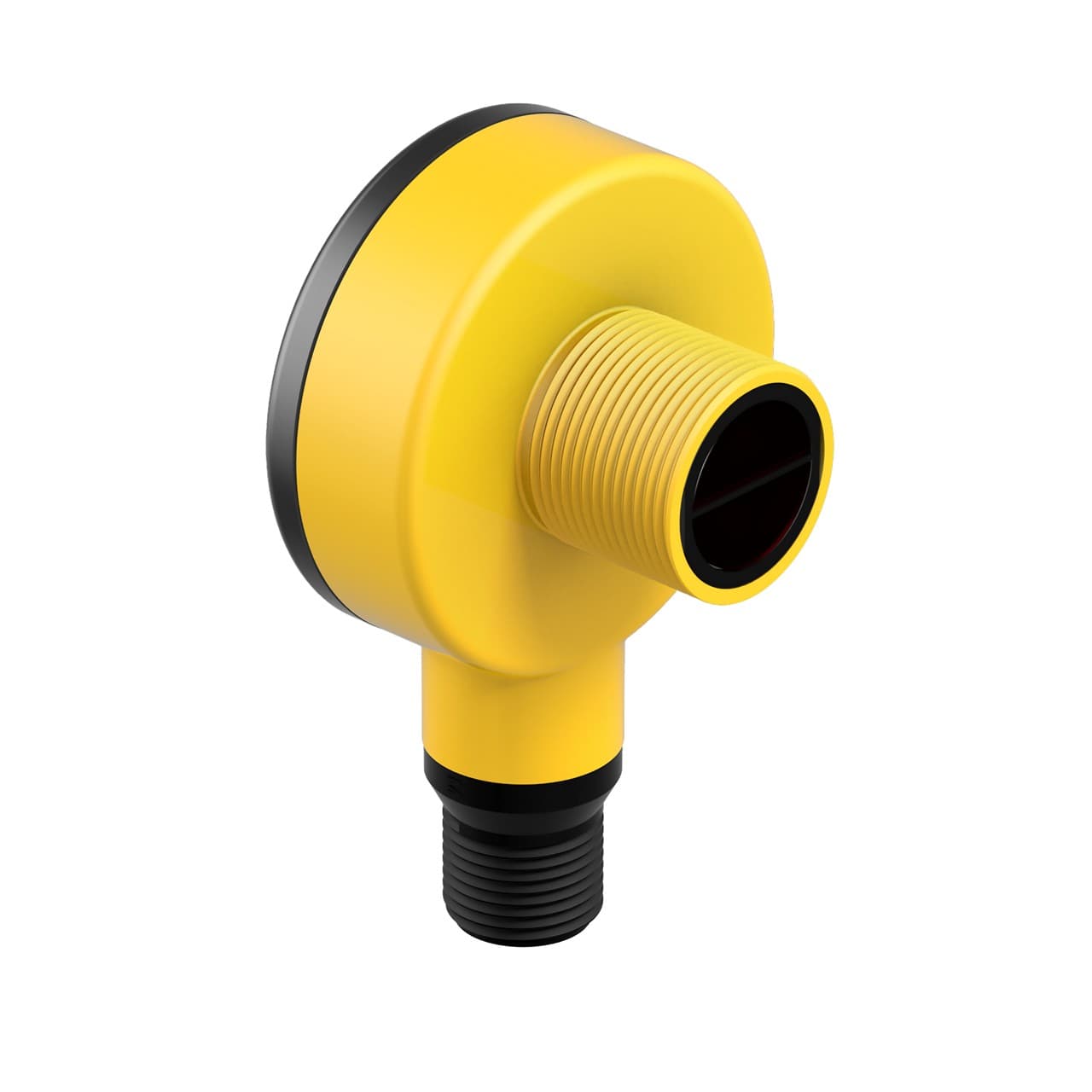

EZ-BEAM T18 Series: Threaded Right-Angle Diffuse, Range: 300 mm; Input: 20-250V ac, Output: Dark Operate, QD uses Turck cordset: WAKW4.5T-2
About the manufacturer: Banner is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the T18RW3DQ3 Banner price in the box on the right side or send a quick quote.
Product Details
- Outputs Solid-State AC Switch
- Min Op. Temp. (°C) -40
- IP Rating IP67, IP69
- Barrel Diameter (mm) 18
- Sensing Mode (Detailed) Diffuse
- Operation Dark Operate
- NEMA Rating NEMA 6P
- Feature: Ecolab Certified Yes
- Max Sensing Distance (mm) 300
- Quick Disconnect Type M12 (Euro)
- Repeatability (µs) 4000
- Opposed Mode Emitter/Receiver N/A
- IO Link No
- Primary Housing Material Thermoplastic
- Special Feature: Remote Teach No
- Indicator LEDs
- Feature: Encapsulated Yes
- Power AC
- Connection Integral QD
- Delay at Power-up (ms) 100
- Feature: Washdown Rated Yes
- DeviceNet No
- Input/Output Solid-State AC Switch
- Special Feature: Intrinsically Safe No
- Max Op. Relative Humidity [%] 90% @ 50°C
- Feature: Chemical Resistant Yes
- Sensing Beam Infrared LED
- Max Op. Temp. (°C) 70
- Number of Pins 5
- Feature: Timing (Hold/Delay) No
- Sensing Mode (General) Proximity
- Output response time (ms) 16
- Adjustments Potentiometer
- Feature: Hazardous Area No
- Housing Style Barrel
- Power Supply/Supply Voltage 20-250 V ac
- Special Feature: Water Detection No
- Lens Material Acrylic
- Feature: Audible No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents T18RW3DQ3 Specs
