SP250YBA120 Banner Signal Beacons
Part#:SP250YBA120
Manufacturer:Banner
Alt. Part#:18364
Product Lifecycle:Active
Get a quick Quote!
EZ-LIGHT Traffic Series: 2-Indicator Daylight Visible; Voltage: 85-130 V ac; Housing: Polycarbonate; IP65; Colors: Yellow Blue; Field Wireable
About the manufacturer: Banner is one of the manufacturers that offers Signal Beacons that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the SP250YBA120 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight571.52592 g
- Country Of OriginUS
- Mounting Thread No Thread
- Lumens Color 1 14.0
- Max Current Color (mA) 16
- Feature: Hazardous Area No
- Cable Length (m) 2
- Color Option 1 Yellow
- Lumens Color 2 12.0
- Max Op. Temperature (°C) 50
- IO Link No
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Color 2 - Wavelength/Color Temp/Coordinates 475 nm
- Feature: Chemical Resistant No
- Wireless No
- Primary Housing Material Polycarbonate
- Color 1 - Wavelength/Color Temp/Coordinates 590 nm
- Supply Voltage 85-130 V ac/75-120 V dc
- Feature: Audible No
- Product Size (mm) Other
- Power DC or AC
- Input Type AC
- Indication Intensity High Brightness & Daylight Visible
- Multi-Color Device Simultaneous Colors On
- Power Source DC or AC
- Color Option 2 Blue
- Environmental Rating IP65
- Modbus RTU No
- Housing Style Flat Mount - Signal Light
- Connection Terminal
- Physical Dimensions (LxWxH or DxH mm) 176.4 x 87.6 x 109.6
- Indication Yes
- Animation Option 1 Solid On
- Number of Input Pins/Conductors 3
- Min Op. Temperature (°C) -40
- Number of Colors / Segments 2
- Color Technology Standard LED
- Max Input Response Time (ms) 10
- Application: Traffic Light Yes
- Pro-Editor Compatible (Discrete) No
- Feature: Quick Disconnect No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
SP250YBA120 Description

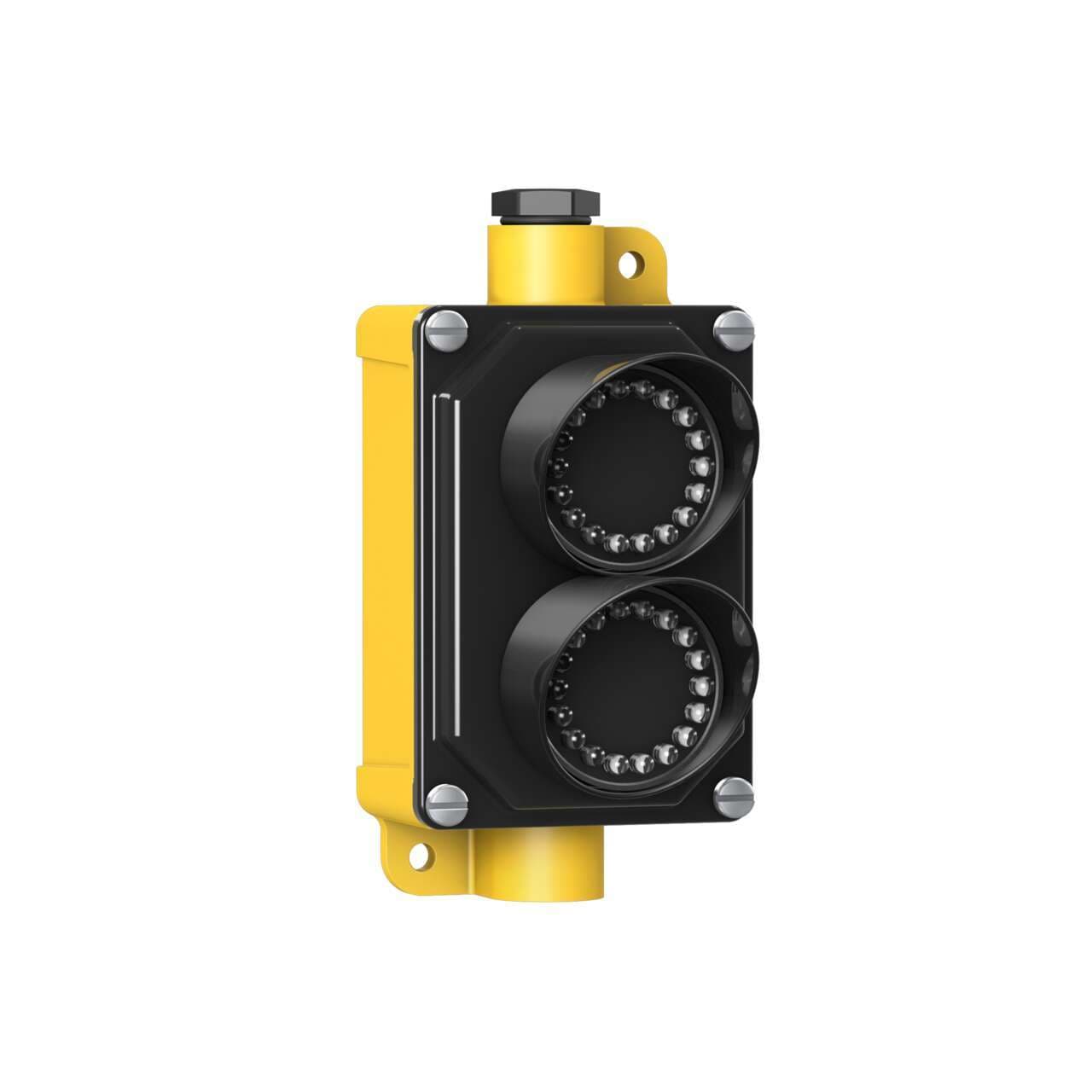

Banner Engineering SP250YBA120, part of the EZ-LIGHT series, is a traffic light designed with a 2-tiers 2-color Y+B color pattern LED illumination. This LED traffic signal light features a polycarbonate (PC) base and a screw-clamp terminal connection. The housing is colored black and yellow, supporting a supply voltage range of 85Vac-130Vac (with 100Vac, 110Vac, and 120Vac nominal) and 75Vdc-120Vdc (110Vdc nominal). It offers flexible mounting options, including surface and wall mounting. The SP250YBA120 operates within an ambient air temperature range of -40°C to +50°C and is rated with a degree of protection of IP65. Its shape is specifically designed for traffic light applications, with a current consumption of 16mA. Additionally, it includes 2 x digital inputs for color control, compatible with both AC (85-130Vac) and DC (75-120Vdc) supply voltages.
Related documents SP250YBA120 Specs
