SP250GYA120 Banner Electronic Components
Part#:SP250GYA120
Manufacturer:Banner
Product Lifecycle:Active
Get a quick Quote!

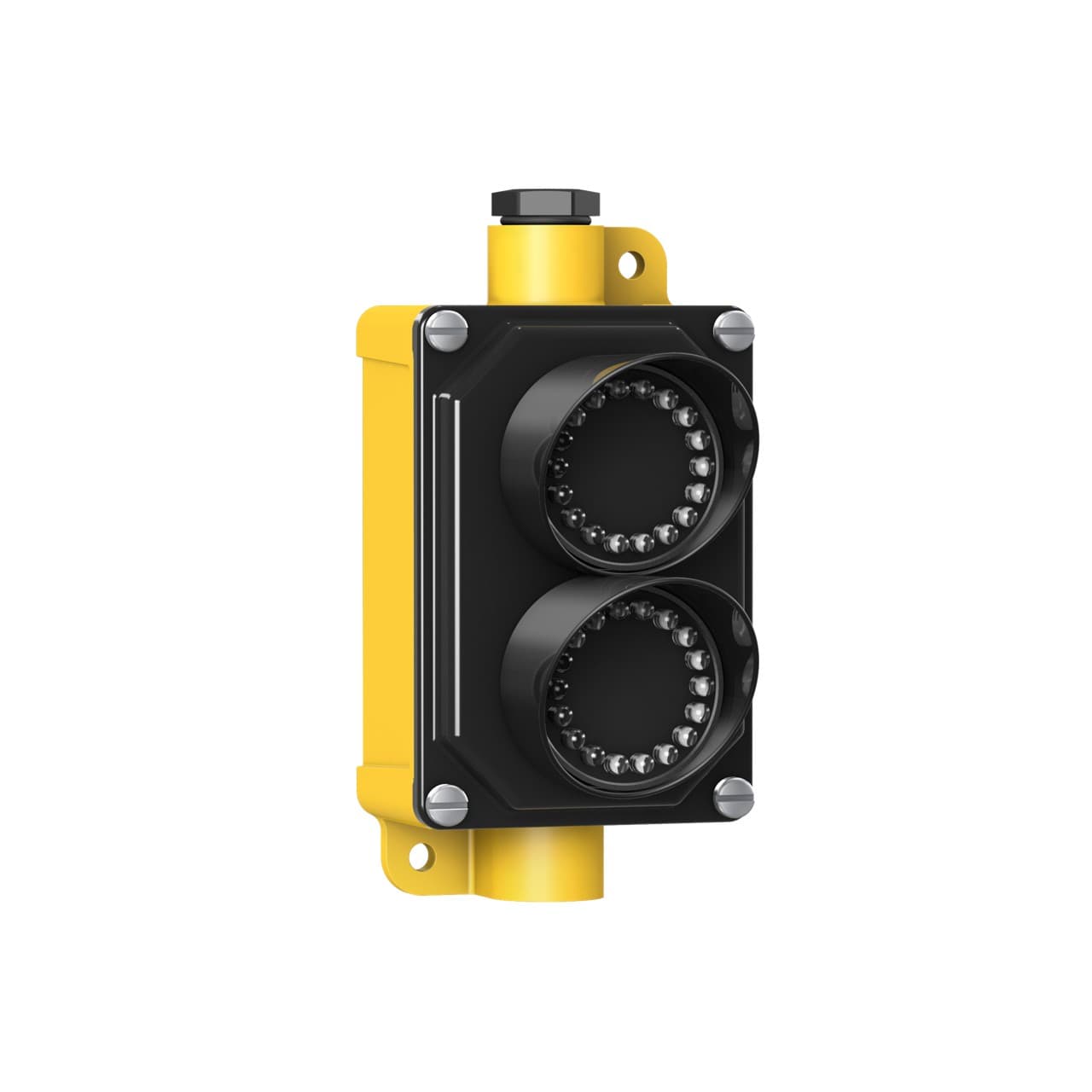

Banner Engineering SP250GYA120, part of the EZ-LIGHT series, is a traffic light designed with a 2-tiers 2-color G+Y color pattern LED illumination. This LED traffic signal light features a polycarbonate (PC) base and a black/yellow housing. It offers screw-clamp terminal connection for secure installation. The SP250GYA120 operates on a supply voltage range of 85Vac-130Vac (with 100Vac, 110Vac, and 120Vac nominal) or 75Vdc-120Vdc (110Vdc nominal), accommodating both AC and DC power sources. It is designed for surface or wall mounting and can operate in ambient air temperatures ranging from -40°C to +50°C. This model is IP65 rated, indicating a high degree of protection against dust and water ingress. It consumes 16mA of current and includes 2 x digital inputs (85-130Vac / 75-120Vdc) for color control.
About the manufacturer: Banner is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the SP250GYA120 Banner price in the box on the right side or send a quick quote.
Product Details
- Product Size (mm) Other
- Lumens Color 1 57.0
- Environmental Rating IP65
- Application: Traffic Light Yes
- Pro-Editor Compatible (Discrete) No
- Power DC or AC
- Color Option 2 Yellow
- Min Op. Temperature (°C) -40
- IO Link No
- Number of Colors / Segments 2
- Color Option 1 Green
- Physical Dimensions (LxWxH or DxH mm) 176.4 x 87.6 x 109.6
- Modbus RTU No
- Mounting Thread No Thread
- Color 1 - Wavelength/Color Temp/Coordinates 528 nm
- Max Op. Temperature (°C) 50
- Wireless No
- Indication Yes
- Lumens Color 2 14.0
- Max Current Color (mA) 16
- Max Input Response Time (ms) 10
- Indication Intensity High Brightness & Daylight Visible
- Primary Housing Material Polycarbonate
- Color Technology Standard LED
- Input Type AC
- Feature: Audible No
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Animation Option 1 Solid On
- Number of Input Pins/Conductors 3
- Feature: Chemical Resistant No
- Power Source DC or AC
- Connection Terminal
- Supply Voltage 85-130 V ac/75-120 V dc
- Feature: Hazardous Area No
- Feature: Quick Disconnect No
- Housing Style Flat Mount - Signal Light
- Color 2 - Wavelength/Color Temp/Coordinates 590 nm
- Multi-Color Device Simultaneous Colors On
