SP250RYPQ Banner Signal Beacons
Part#:SP250RYPQ
Manufacturer:Banner
Alt. Part#:14641
Product Lifecycle:Active
Get a quick Quote!
EZ-LIGHT Traffic Series: 2-Indicator Daylight Visible; Voltage: 15-30 V dc; Housing: Polycarbonate; IP65; Input: PNP; Colors: Red Yellow; 4-pin M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Signal Beacons that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the SP250RYPQ Banner price in the box on the right side or send a quick quote.
Product Details
- Weight589.6696 g
- Country Of OriginUS
- Power DC
- Color 1 - Wavelength/Color Temp/Coordinates 625 nm
- Primary Housing Material Polycarbonate
- Lumens Color 1 20.0
- Max Current Color (mA) 120
- Max Op. Temperature (°C) 50
- Wireless No
- IO Link No
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Color Option 1 Red
- Number of Input Pins/Conductors 4
- Indication Intensity High Brightness & Daylight Visible
- Housing Style Flat Mount - Signal Light
- Color Option 2 Yellow
- Environmental Rating IP65
- Multi-Color Device Simultaneous Colors On
- Indication Yes
- Number of Colors / Segments 2
- Animation Option 1 Solid On
- Lumens Color 2 14.0
- Color 2 - Wavelength/Color Temp/Coordinates 590 nm
- Min Op. Temperature (°C) -40
- Feature: Audible No
- Modbus RTU No
- Mounting Thread No Thread
- Color Technology Standard LED
- Supply Voltage 15-30 V dc
- Feature: Chemical Resistant No
- Pro-Editor Compatible (Discrete) No
- Product Size (mm) Other
- Connection Integral QD
- Max Input Response Time (ms) 10
- Feature: Hazardous Area No
- Power Source DC
- Quick Disconnect Type M12 (Euro)
- Input Type PNP
- Physical Dimensions (LxWxH or DxH mm) 192.8 x 87.6 x 109.6
- Application: Traffic Light Yes
- Feature: Quick Disconnect Yes
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
SP250RYPQ Description

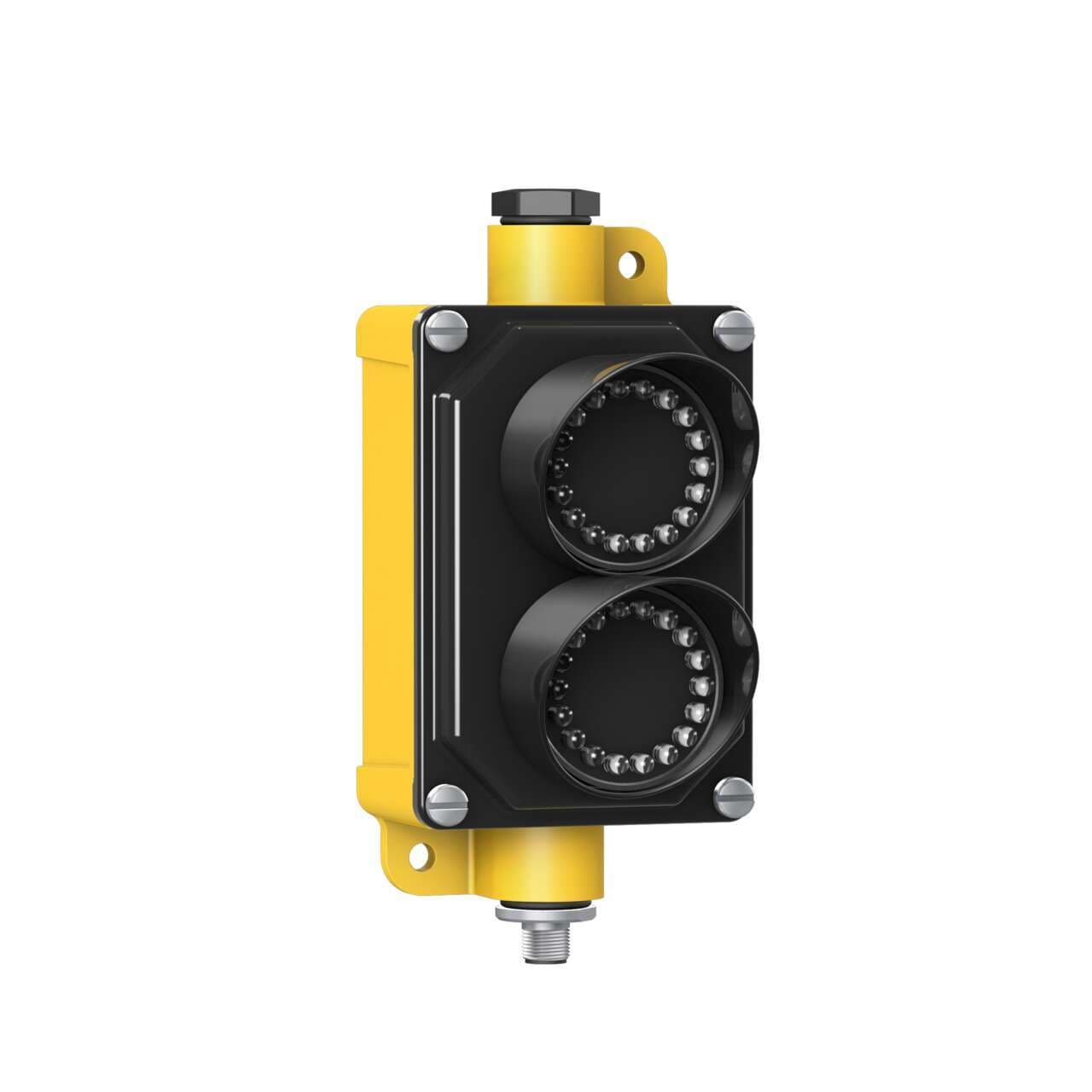

Banner Engineering SP250RYPQ, part of the EZ-LIGHT series, is a traffic light designed with a 2-tiers 2-color R+Y color pattern LED illumination. This LED traffic signal light features a polycarbonate (PC) base and is pre-equipped with a 4-pin M12 Euro-style QD connector for connectivity. The housing is black and yellow, supporting a supply voltage range of 15Vdc-30Vdc (24Vdc nom.). It offers flexible mounting options, including surface and wall mounting. The SP250RYPQ operates within an ambient air temperature range of -40°C to +50°C and is rated with a degree of protection of IP65, indicating dust tightness and protection against water jets. The shape is specifically designed to resemble a traffic light, with a current consumption of 120mA. It also includes 2 x digital inputs (15-30Vdc; PNP) for color control.
Related documents SP250RYPQ Specs
