SP250BYPQ Banner Electronic Components
Part#:SP250BYPQ
Manufacturer:Banner
Product Lifecycle:Active
Get a quick Quote!

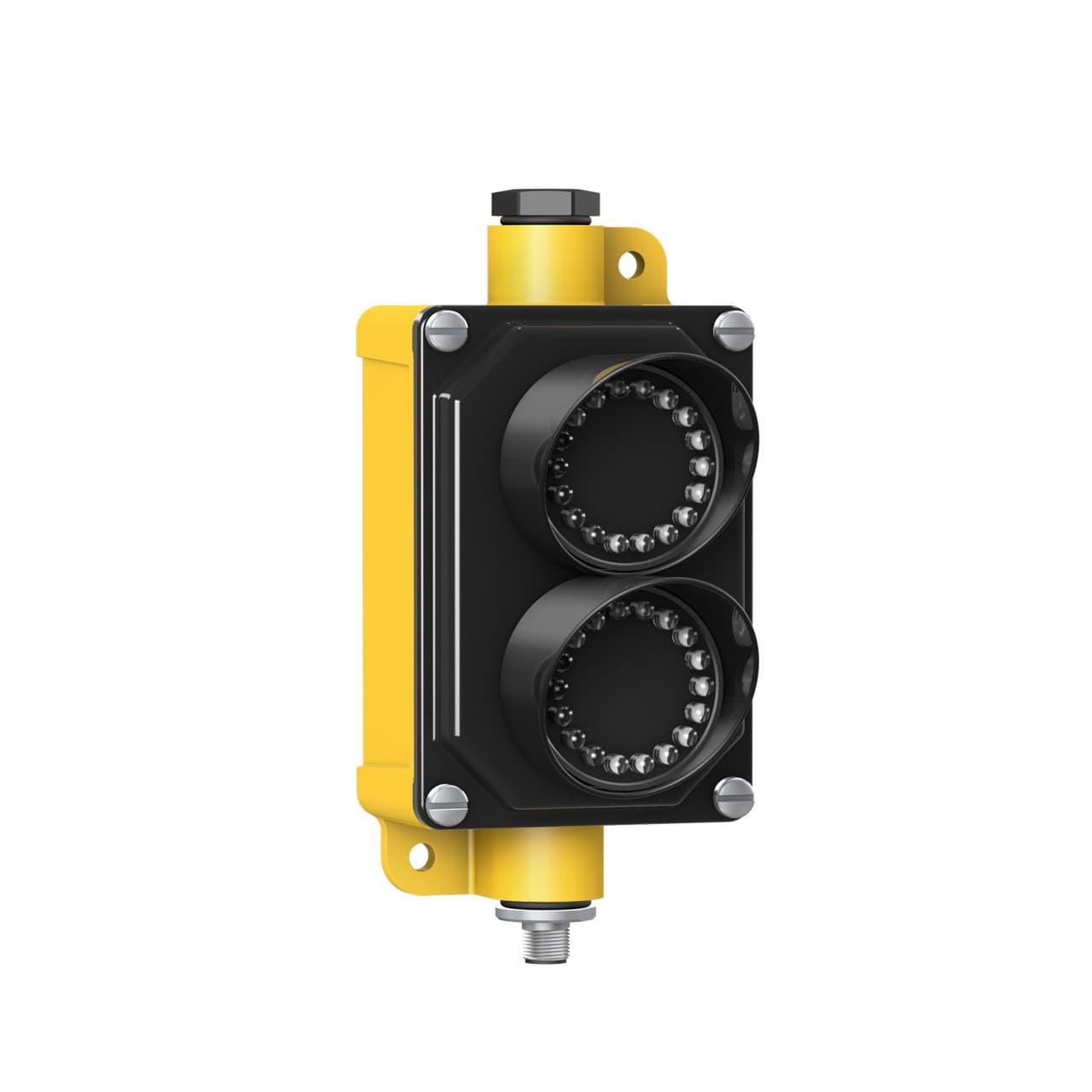

EZ-LIGHT Traffic Series: 2-Indicator Daylight Visible, Voltage: 15-30V dc; Housing: Polycarbonate; IP65, Input: PNP; Colors: Blue Yellow, Euro 4-pin Integral Connector
About the manufacturer: Banner is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the SP250BYPQ Banner price in the box on the right side or send a quick quote.
Product Details
- Primary Housing Material Polycarbonate
- Power Source DC
- Quick Disconnect Type M12 (Euro)
- Max Input Response Time (ms) 10
- Feature: Quick Disconnect Yes
- Mounting Thread No Thread
- Color Technology Standard LED
- Lumens Color 2 14.0
- Physical Dimensions (LxWxH or DxH mm) 192.8 x 87.6 x 109.6
- Multi-Color Device Simultaneous Colors On
- Indication Yes
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Animation Option 1 Solid On
- Color 1 - Wavelength/Color Temp/Coordinates 475 nm
- Color Option 1 Blue
- Max Current Color (mA) 120
- Number of Colors / Segments 2
- Color Option 2 Yellow
- Max Op. Temperature (°C) 50
- Application: Traffic Light Yes
- Power DC
- Color 2 - Wavelength/Color Temp/Coordinates 590 nm
- Min Op. Temperature (°C) -40
- Product Size (mm) Other
- Connection Integral QD
- Number of Input Pins/Conductors 4
- Feature: Hazardous Area No
- Housing Style Flat Mount - Signal Light
- Lumens Color 1 12.0
- Input Type PNP
- Feature: Audible No
- Supply Voltage 15-30 V dc
- Indication Intensity High Brightness & Daylight Visible
- IO Link No
- Modbus RTU No
- Wireless No
- Feature: Chemical Resistant No
- Environmental Rating IP65
- Pro-Editor Compatible (Discrete) No
