SP250BRPQ Banner Electronic Components
Part#:SP250BRPQ
Manufacturer:Banner
Product Lifecycle:Active
Get a quick Quote!

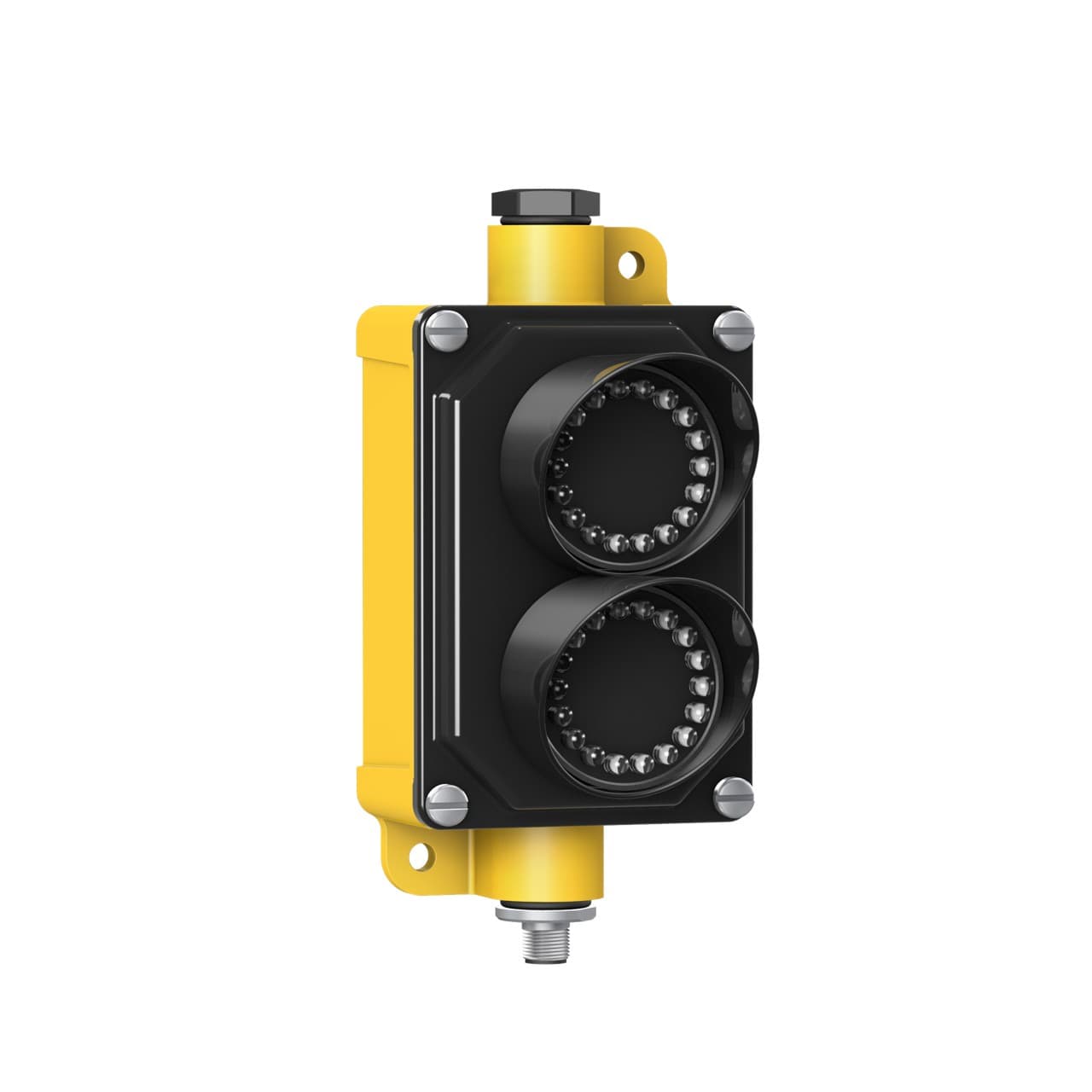

EZ-LIGHT Traffic Series: 2-Indicator Daylight Visible, Voltage: 15-30V dc; Housing: Polycarbonate; IP65, Input: PNP; Colors: Blue Red, Euro-style Quick-Disconnect Connector
About the manufacturer: Banner is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the SP250BRPQ Banner price in the box on the right side or send a quick quote.
Product Details
- Power Source DC
- Physical Dimensions (LxWxH or DxH mm) 192.8 x 87.6 x 109.6
- Multi-Color Device Simultaneous Colors On
- Feature: Quick Disconnect Yes
- Product Size (mm) Other
- Color Technology Standard LED
- Supply Voltage 15-30 V dc
- Application: Traffic Light Yes
- Number of Colors / Segments 2
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Lumens Color 1 12.0
- Max Input Response Time (ms) 10
- Feature: Hazardous Area No
- Power DC
- Quick Disconnect Type M12 (Euro)
- Color 2 - Wavelength/Color Temp/Coordinates 625 nm
- Indication Intensity High Brightness & Daylight Visible
- Wireless No
- Animation Option 1 Solid On
- Input Type PNP
- Feature: Audible No
- Modbus RTU No
- Housing Style Flat Mount - Signal Light
- Color Option 1 Blue
- Color Option 2 Red
- Mounting Thread No Thread
- Connection Integral QD
- Lumens Color 2 20.0
- Environmental Rating IP65
- Primary Housing Material Polycarbonate
- Number of Input Pins/Conductors 4
- Min Op. Temperature (°C) -40
- Indication Yes
- Color 1 - Wavelength/Color Temp/Coordinates 475 nm
- Max Current Color (mA) 120
- Max Op. Temperature (°C) 50
- IO Link No
- Feature: Chemical Resistant No
- Pro-Editor Compatible (Discrete) No
