SP250GRA120 Banner Signal Beacons
Part#:SP250GRA120
Manufacturer:Banner
Alt. Part#:13141
Product Lifecycle:Active
Get a quick Quote!
EZ-LIGHT Traffic Series: 2-Indicator Daylight Visible; Voltage: 85-130 V ac; Housing: Polycarbonate; IP65; Colors: Green Red; Field Wireable
About the manufacturer: Banner is one of the manufacturers that offers Signal Beacons that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the SP250GRA120 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight568.804368 g
- Country Of OriginUS
- Color Technology Standard LED
- Mounting Thread No Thread
- Color 1 - Wavelength/Color Temp/Coordinates 528 nm
- Max Input Response Time (ms) 10
- Multi-Color Device Simultaneous Colors On
- Product Size (mm) Other
- Lumens Color 2 20.0
- Min Op. Temperature (°C) -40
- Feature: Quick Disconnect No
- Power DC or AC
- Number of Colors / Segments 2
- Number of Input Pins/Conductors 3
- Feature: Hazardous Area No
- Power Source DC or AC
- Color Option 2 Red
- Max Op. Temperature (°C) 50
- Modbus RTU No
- Indication Yes
- Color Option 1 Green
- Environmental Rating IP65
- Wireless No
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Color 2 - Wavelength/Color Temp/Coordinates 625 nm
- Feature: Audible No
- IO Link No
- Housing Style Flat Mount - Signal Light
- Connection Terminal
- Input Type AC
- Application: Traffic Light Yes
- Primary Housing Material Polycarbonate
- Lumens Color 1 57.0
- Physical Dimensions (LxWxH or DxH mm) 176.4 x 87.6 x 109.6
- Pro-Editor Compatible (Discrete) No
- Animation Option 1 Solid On
- Max Current Color (mA) 16
- Feature: Chemical Resistant No
- Supply Voltage 85-130 V ac/75-120 V dc
- Indication Intensity High Brightness & Daylight Visible
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
SP250GRA120 Description

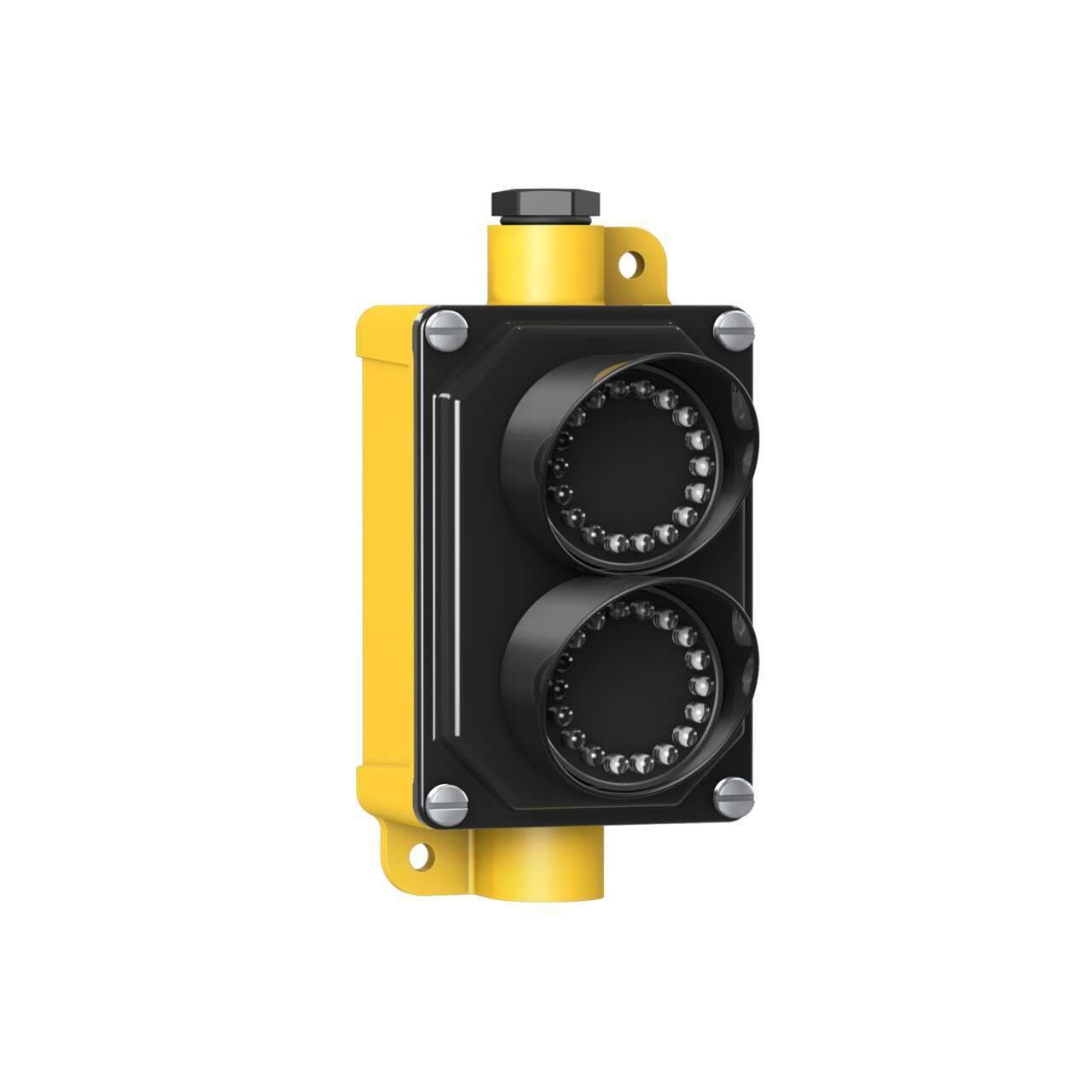

Banner Engineering SP250GRA120, part of the EZ-LIGHT series, is a traffic light designed with a 2-tiers 2-color G+R color pattern LED illumination. This LED traffic signal light features a polycarbonate (PC) base and a black/yellow housing. It offers screw-clamp terminal connection for ease of installation. The SP250GRA120 operates on a supply voltage range of 85Vac-130Vac (with 100Vac, 110Vac, and 120Vac nominal) for AC and 75Vdc-120Vdc (110Vdc nominal) for DC, making it versatile for various power setups. It supports surface or wall mounting modes and can operate within an ambient air temperature range of -40°C to +50°C. With an IP65 degree of protection, it is safeguarded against dust and low-pressure water jets from any direction. The shape is specifically designed for traffic light applications, and it has a current consumption of 16mA. Additionally, it includes 2 x digital inputs (85-130Vac / 75-120Vdc) for color control, enhancing its functionality in traffic management systems.
Related documents SP250GRA120 Specs
