SP250RGA120 Banner Signal Beacons

Banner SP250RGA120 EZ-LIGHT Traffic Series: 2-Indicator Daylight Visible; Voltage: 85-130 V ac; Housing: Polycarbonate; IP65; Colors: Red Green; Field Wireable
Banner

Part#:SP250RGA120

Manufacturer:Banner

Alt. Part#:53788

Product Lifecycle:Active

Get a quick Quote!

EZ-LIGHT Traffic Series: 2-Indicator Daylight Visible; Voltage: 85-130 V ac; Housing: Polycarbonate; IP65; Colors: Red Green; Field Wireable

About the manufacturer: Banner is one of the manufacturers that offers Signal Beacons that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the SP250RGA120 Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight589.6696 g
  • Country Of OriginUS
  • Power
    DC or AC
  • Color Option 1
    Red
  • Color 2 - Wavelength/Color Temp/Coordinates
    528 nm
  • Max Op. Temperature (°C)
    50
  • Wireless
    No
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Color 1 - Wavelength/Color Temp/Coordinates
    625 nm
  • Indication Intensity
    High Brightness & Daylight Visible
  • Mounting Thread
    No Thread
  • Supply Voltage
    85-130 V ac/75-120 V dc
  • Connection
    Terminal
  • Feature: Quick Disconnect
    No
  • Housing Style
    Flat Mount - Signal Light
  • Color Option 2
    Green
  • Min Op. Temperature (°C)
    -40
  • Pro-Editor Compatible (Discrete)
    No
  • Physical Dimensions (LxWxH or DxH mm)
    176.4 x 87.6 x 109.6
  • Application: Traffic Light
    Yes
  • Power Source
    DC or AC
  • Lumens Color 1
    20.0
  • Environmental Rating
    IP65
  • Modbus RTU
    No
  • Primary Housing Material
    Polycarbonate
  • Product Size (mm)
    Other
  • Number of Input Pins/Conductors
    3
  • Feature: Audible
    No
  • Indication
    Yes
  • Input Type
    AC
  • Multi-Color Device
    Simultaneous Colors On
  • Color Technology
    Standard LED
  • Lumens Color 2
    57.0
  • Feature: Hazardous Area
    No
  • Feature: Chemical Resistant
    No
  • Animation Option 1
    Solid On
  • Number of Colors / Segments
    2
  • Max Current Color (mA)
    16
  • Max Input Response Time (ms)
    10
  • IO Link
    No

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

SP250RGA120 Description

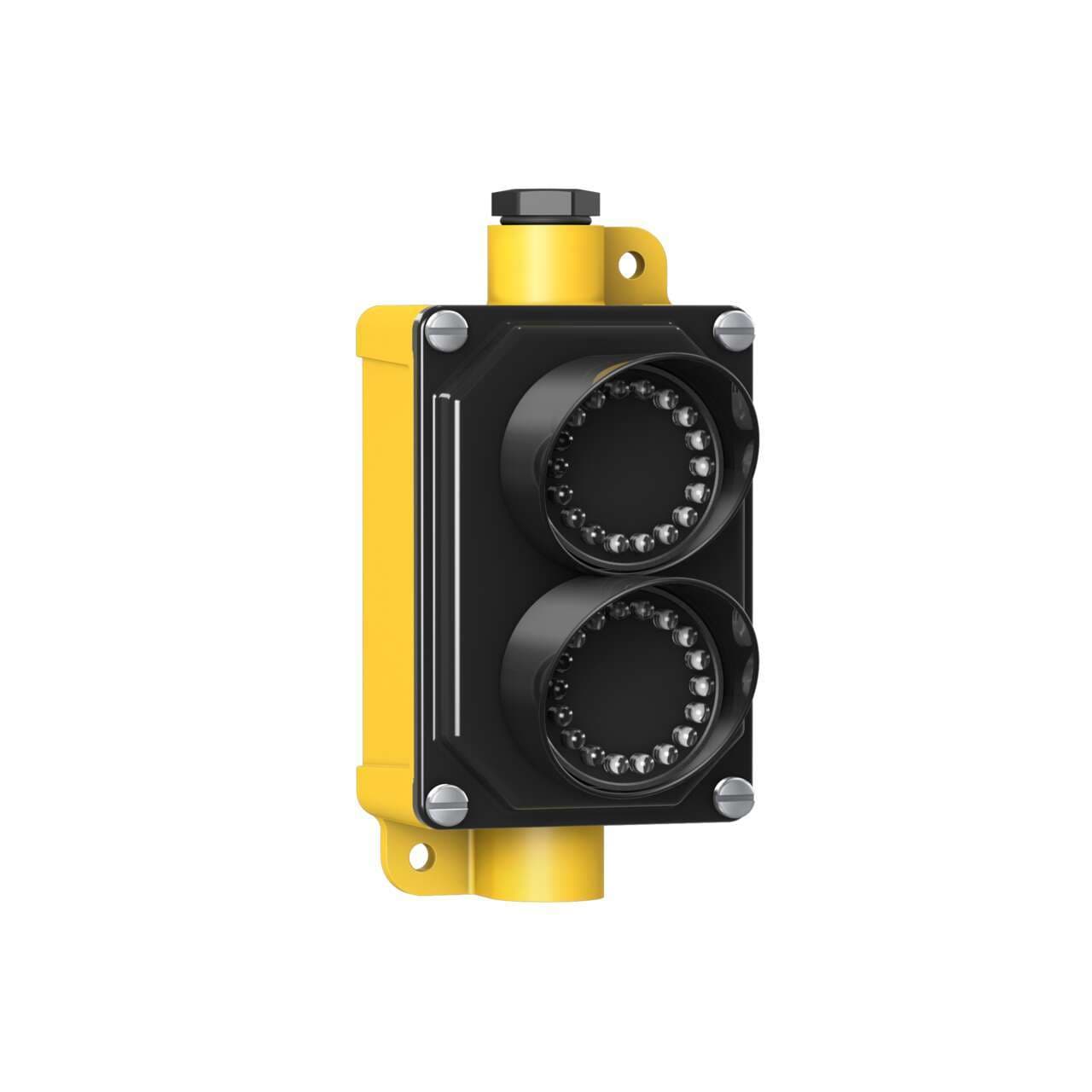

Banner Engineering SP250RGA120, part of the EZ-LIGHT series, is a traffic light designed with a 2-tiers 2-color R+G color pattern LED illumination. This LED traffic signal light features a polycarbonate (PC) base and a black/yellow housing. It offers a screw-clamp terminal connection for secure installation. The SP250RGA120 operates on a supply voltage range of 85Vac-130Vac (with 100Vac, 110Vac, and 120Vac nominal) for AC and 75Vdc-120Vdc (110Vdc nominal) for DC. It supports surface or wall mounting modes and can operate in ambient air temperatures ranging from -40°C to +50°C. This model is designed with an IP65 degree of protection, ensuring durability against dust and water ingress. It has a current consumption of 16mA and includes 2 x digital inputs (85-130Vac / 75-120Vdc) for color control.

Related documents SP250RGA120 Specs

SP250RGA120 148879.pdf
