S18DLGRYNQ Banner Signal Beacons
Part#:S18DLGRYNQ
Manufacturer:Banner
Alt. Part#:25833
Product Lifecycle:Active
Get a quick Quote!
S18 Daylight Visible EZ-LIGHT - 18 mm - IP67; Three Color: Green Red Yellow; 10-30 V dc NPN Input; 4-pin M12 QD
About the manufacturer: Banner is one of the manufacturers that offers Signal Beacons that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the S18DLGRYNQ Banner price in the box on the right side or send a quick quote.
Product Details
- Weight54.43104 g
- Country Of OriginCN
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Color 1 - Wavelength/Color Temp/Coordinates 525 nm
- Color 3 - Wavelength/Color Temp/Coordinates 590 nm
- Max Op. Temperature (°C) 50
- Wireless No
- Housing Style Barrel Mount - Flat Window
- Animation Option 1 Solid On
- Number of Input Pins/Conductors 4
- NEMA Type and UL Type Rating NEMA and UL 4X, 13
- Feature: Hazardous Area No
- Number of Colors / Segments 3
- Lumens Color 1 2.3
- Input Type NPN
- Primary Window Material Polycarbonate Clear
- Modbus RTU No
- Cable Length (m) 0.15
- Color Option 2 Red
- Supply Voltage 10-30 V dc
- Feature: Washdown Rated Yes
- Indication Intensity High Brightness & Daylight Visible
- Power DC
- Color Technology Standard LED
- Color 2 - Wavelength/Color Temp/Coordinates 625 nm
- Physical Dimensions (LxWxH or DxH mm) 23.5 x 35.7
- Feature: Audible No
- Mounting Thread M18 x 1.0
- Connection Integral QD
- Color Option 3 Yellow
- Environmental Rating IP67; IP69
- Feature: Quick Disconnect Yes
- Indication Yes
- Product Size (mm) 18
- Lumens Color 2 1.4
- Max Input Response Time (ms) 1
- Feature: Chemical Resistant No
- Power Source DC
- Quick Disconnect Type M12 (Euro)
- Lumens Color 3 1.2
- Primary Housing Color Black
- Multi-Color Device Single Color On
- Primary Housing Material Polycarbonate
- Color Option 1 Green
- Max Current Color (mA) 25
- Min Op. Temperature (°C) -40
- IO Link No
- Pro-Editor Compatible (Discrete) No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
S18DLGRYNQ Description

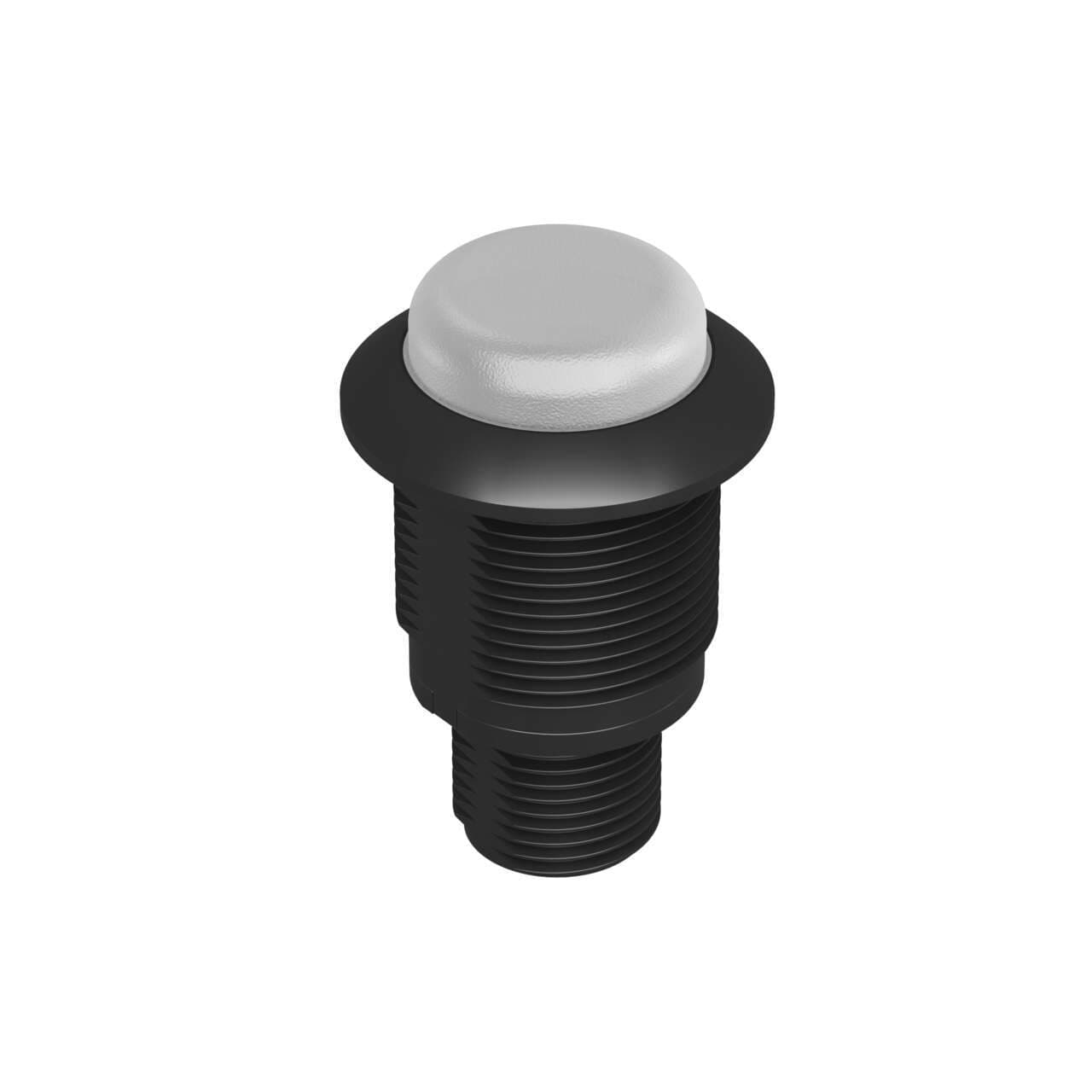

Banner Engineering S18DLGRYNQ is a pilot light from the EZ-LIGHT series featuring a daylight-visible 3-color G/R/Y color pattern LED illumination. This part is designed with a clear Polycarbonate (PC) window and base, and it has an 18mm indicator diameter. It comes pre-equipped with a 4-pin M12 Euro-style QD connector for connectivity and is housed in black. The supply voltage requirement is between 10Vdc to 30Vdc, with a nominal range of 12Vdc to 24Vdc. It is designed for flush mounting in an 18mm hole with an M18 thread. The S18DLGRYNQ operates within an ambient air temperature range of -40°C to +50°C and offers a high degree of protection with ratings of IP67, IP69K, NEMA 4X, NEMA 13, UL type 4X, and UL type 13. Its shape is characterized by a round protruding window and a threaded cylindrical barrel. The current consumption is 25mA, and it features 3 x digital inputs (10-30Vdc; NPN) for color control.
Related documents S18DLGRYNQ Specs
