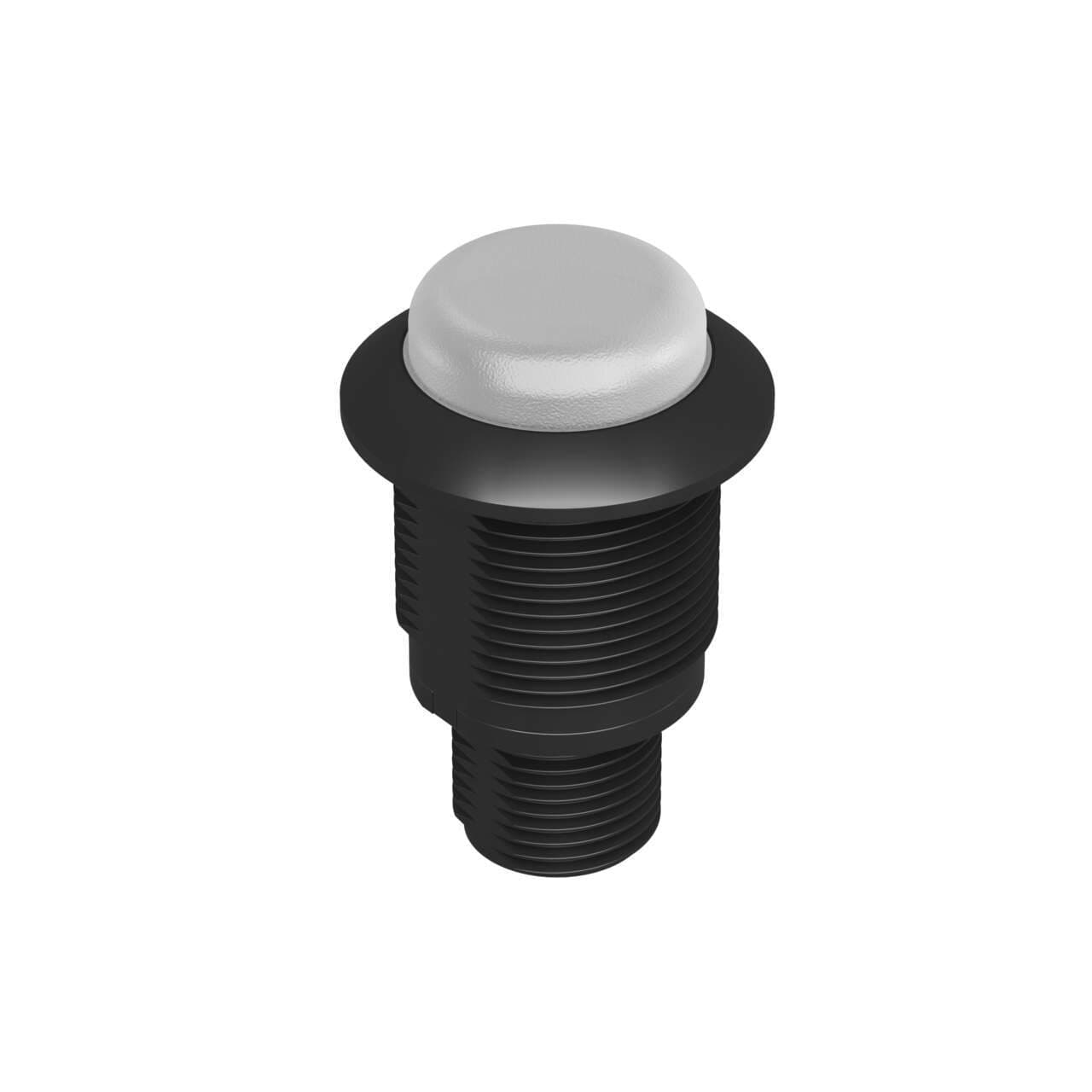

S18DLGBYPQ Banner Signal Beacons

Banner S18DLGBYPQ S18 Daylight Visible EZ-LIGHT - 18 mm - IP67; Three Color: Green Blue Yellow; 10-30 V dc PNP Input; 4-pin M12 Integral QD
Banner

Part#:S18DLGBYPQ

Manufacturer:Banner

Alt. Part#:811110

Product Lifecycle:Active

Get a quick Quote!

S18 Daylight Visible EZ-LIGHT - 18 mm - IP67; Three Color: Green Blue Yellow; 10-30 V dc PNP Input; 4-pin M12 Integral QD

About the manufacturer: Banner is one of the manufacturers that offers Signal Beacons that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the S18DLGBYPQ Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight54.43104 g
  • Country Of OriginCN
  • Power
    DC
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Primary Housing Material
    Polycarbonate
  • Color 1 - Wavelength/Color Temp/Coordinates
    525 nm
  • Supply Voltage
    10-30 V dc
  • Max Op. Temperature (°C)
    50
  • Indication Intensity
    High Brightness & Daylight Visible
  • Connection
    Integral QD
  • Animation Option 1
    Solid On
  • Quick Disconnect Type
    M12 (Euro)
  • Input Type
    PNP
  • Min Op. Temperature (°C)
    -40
  • Modbus RTU
    No
  • Color Technology
    Standard LED
  • Lumens Color 1
    2.3
  • Environmental Rating
    IP67; IP69
  • Feature: Audible
    No
  • Pro-Editor Compatible (Discrete)
    No
  • Color Option 1
    Green
  • Lumens Color 2
    0.6
  • Lumens Color 3
    1.2
  • NEMA Type and UL Type Rating
    NEMA and UL 4X, 13
  • Primary Housing Color
    Black
  • Housing Style
    Barrel Mount - Flat Window
  • Number of Colors / Segments
    3
  • Color 2 - Wavelength/Color Temp/Coordinates
    470 nm
  • Max Input Response Time (ms)
    1
  • Feature: Washdown Rated
    Yes
  • Wireless
    No
  • Mounting Thread
    M18 x 1.0
  • Color Option 3
    Yellow
  • Color 3 - Wavelength/Color Temp/Coordinates
    590 nm
  • Feature: Hazardous Area
    No
  • Multi-Color Device
    Single Color On
  • Power Source
    DC
  • Number of Input Pins/Conductors
    4
  • Physical Dimensions (LxWxH or DxH mm)
    23.5 x 35.7
  • Feature: Chemical Resistant
    No
  • Indication
    Yes
  • Product Size (mm)
    18
  • Color Option 2
    Blue
  • Max Current Color (mA)
    25
  • Primary Window Material
    Polycarbonate Clear
  • IO Link
    No

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

S18DLGBYPQ Description

S18 Daylight Visible EZ-LIGHT - 18 mm - IP67, Three Color: Green Blue Yellow, 10-30 V dc PNP Input, Euro 4-pin Integral Connector

Related documents S18DLGBYPQ Specs

S18DLGBYPQ 160690.pdf
