S18DLGRXNQP Banner Electronic Components
Part#:S18DLGRXNQP
Manufacturer:Banner
Product Lifecycle:Active
Get a quick Quote!

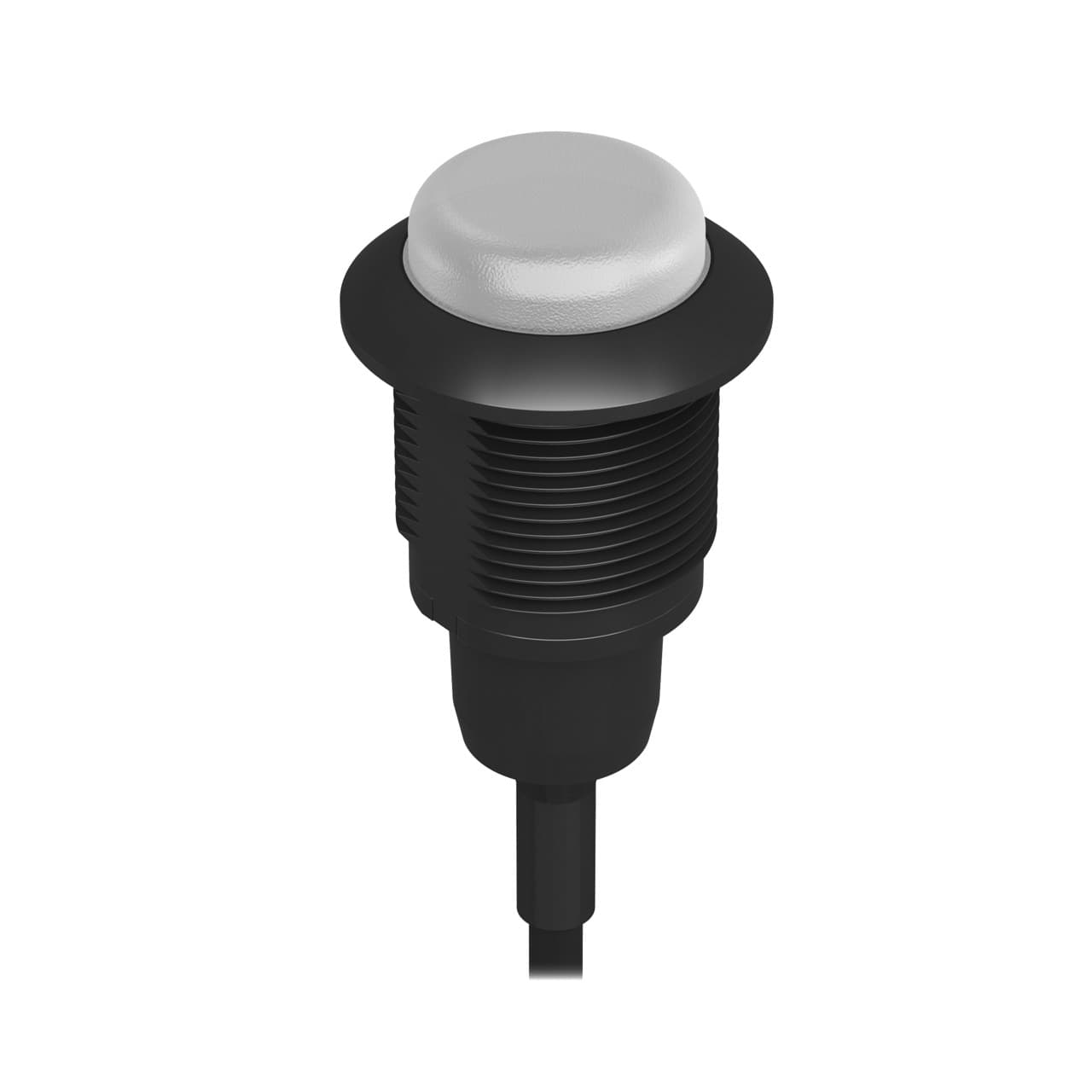

S18 Daylight Visible EZ-LIGHT - 18 mm - IP67, Two Color: Green Red, 10-30 V dc NPN Input, 6 Inch 4 Pin Euro Pigtail
About the manufacturer: Banner is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the S18DLGRXNQP Banner price in the box on the right side or send a quick quote.
Product Details
- Primary Housing Material Polycarbonate
- Connection Pigtail QD
- Number of Input Pins/Conductors 4
- Feature: Washdown Rated Yes
- Pro-Editor Compatible (Discrete) No
- Power DC
- Lumens Color 1 2.3
- Physical Dimensions (LxWxH or DxH mm) 23.5 x 35.7
- Feature: Chemical Resistant No
- Indication Yes
- Color Option 2 Red
- Min Op. Temperature (°C) -40
- IO Link No
- Power Source DC
- Color 1 - Wavelength/Color Temp/Coordinates 525 nm
- Max Op. Temperature (°C) 50
- Multi-Color Device Single Color On
- Mounting Thread M18 x 1.0
- Quick Disconnect Type M12 (Euro)
- Max Input Response Time (ms) 1
- Feature: Audible No
- Product Size (mm) 18
- Animation Option 1 Solid On
- Input Type NPN
- Primary Window Material Polycarbonate Clear
- Modbus RTU No
- Supply Voltage 10-30 V dc
- Feature: Quick Disconnect Yes
- Number of Colors / Segments 2
- Lumens Color 2 1.4
- Environmental Rating IP67; IP69
- Indication Intensity High Brightness & Daylight Visible
- Housing Style Barrel Mount - Flat Window
- Color Option 1 Green
- Color 2 - Wavelength/Color Temp/Coordinates 625 nm
- NEMA Type and UL Type Rating NEMA and UL 4X, 13
- Feature: Hazardous Area No
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Color Technology Standard LED
- Max Current Color (mA) 25
- Primary Housing Color Black
- Wireless No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents S18DLGRXNQP Specs
