S18DLGRXN Banner Signal Beacons

Banner S18DLGRXN S18 Daylight Visible EZ-LIGHT - 18 mm - IP67; Two Color: Green Red; 10-30 V dc NPN Input; 4-Wire 2 m Cable
Banner

Part#:S18DLGRXN

Manufacturer:Banner

Alt. Part#:25827

Product Lifecycle:Active

Get a quick Quote!

S18 Daylight Visible EZ-LIGHT - 18 mm - IP67; Two Color: Green Red; 10-30 V dc NPN Input; 4-Wire 2 m Cable

About the manufacturer: Banner is one of the manufacturers that offers Signal Beacons that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the S18DLGRXN Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight81.64656 g
  • Country Of OriginCN
  • Primary Housing Material
    Polycarbonate
  • Product Size (mm)
    18
  • Indication
    Yes
  • Power Source
    DC
  • Mounting Thread
    M18 x 1.0
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Housing Style
    Barrel Mount - Flat Window
  • Power
    DC
  • Number of Colors / Segments
    2
  • Color Technology
    Standard LED
  • Animation Option 1
    Solid On
  • Color Option 1
    Green
  • Connection
    Cable
  • Color 1 - Wavelength/Color Temp/Coordinates
    525 nm
  • Lumens Color 1
    2.3
  • Lumens Color 2
    1.4
  • Color Option 2
    Red
  • Color 2 - Wavelength/Color Temp/Coordinates
    625 nm
  • Max Current Color (mA)
    25
  • Number of Input Pins/Conductors
    4
  • Input Type
    NPN
  • Feature: Audible
    No
  • Physical Dimensions (LxWxH or DxH mm)
    23.5 x 35.7
  • Multi-Color Device
    Single Color On
  • Environmental Rating
    IP67; IP69
  • Feature: Chemical Resistant
    No
  • Wireless
    No
  • Max Input Response Time (ms)
    1
  • Supply Voltage
    10-30 V dc
  • Min Op. Temperature (°C)
    -40
  • IO Link
    No
  • Primary Window Material
    Polycarbonate Clear
  • Pro-Editor Compatible (Discrete)
    No
  • Max Op. Temperature (°C)
    50
  • Feature: Hazardous Area
    No
  • NEMA Type and UL Type Rating
    NEMA and UL 4X, 13
  • Feature: Washdown Rated
    Yes
  • Feature: Quick Disconnect
    No
  • Indication Intensity
    High Brightness & Daylight Visible
  • Primary Housing Color
    Black
  • Modbus RTU
    No

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

S18DLGRXN Description

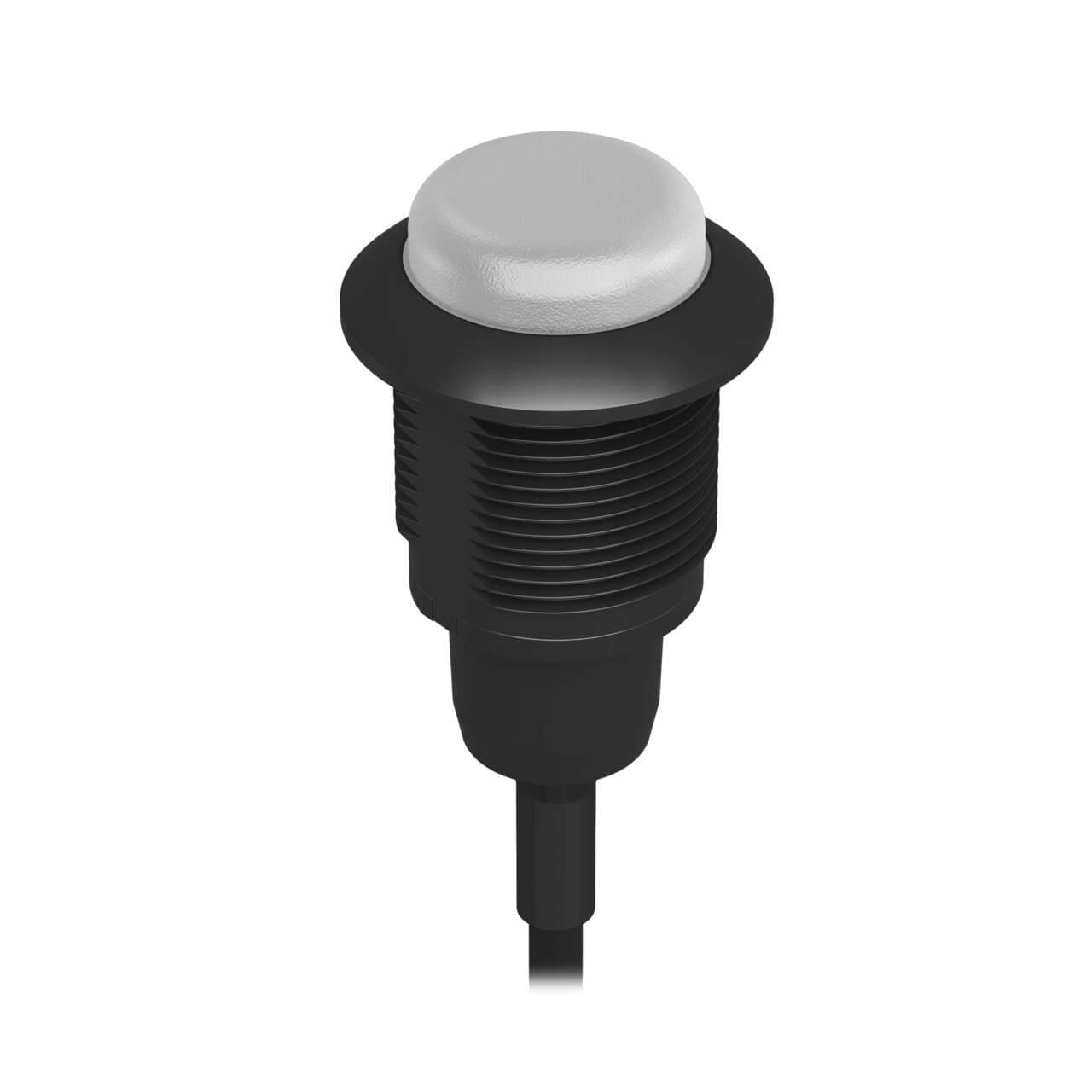

Banner Engineering S18DLGRXN, part of the EZ-LIGHT series, is a pilot light designed with a daylight-visible 2-color G/R color pattern LED illumination. This LED pilot light indicator features a clear Polycarbonate (PC) window and base, with a diameter of 18mm. It comes pre-wired with a 2m / 6.5ft 4-wire cable terminated with bare end flying leads. The housing is black, and it operates on a supply voltage of 10Vdc-30Vdc (12Vdc-24Vdc nom.). For mounting, it uses a flush (18mm hole) M18 thread. The S18DLGRXN can operate in ambient air temperatures ranging from -40°C to +50°C and offers a degree of protection rated at IP67, IP69K, NEMA 4X, NEMA 13, UL type 4X, and UL type 13. Its shape is characterized by a round protruding window and a threaded cylindrical barrel. The current consumption is 25mA, and it includes 2 x digital inputs (10-30Vdc; NPN) for color control.

Related documents S18DLGRXN Specs

S18DLGRXN 160690.pdf
