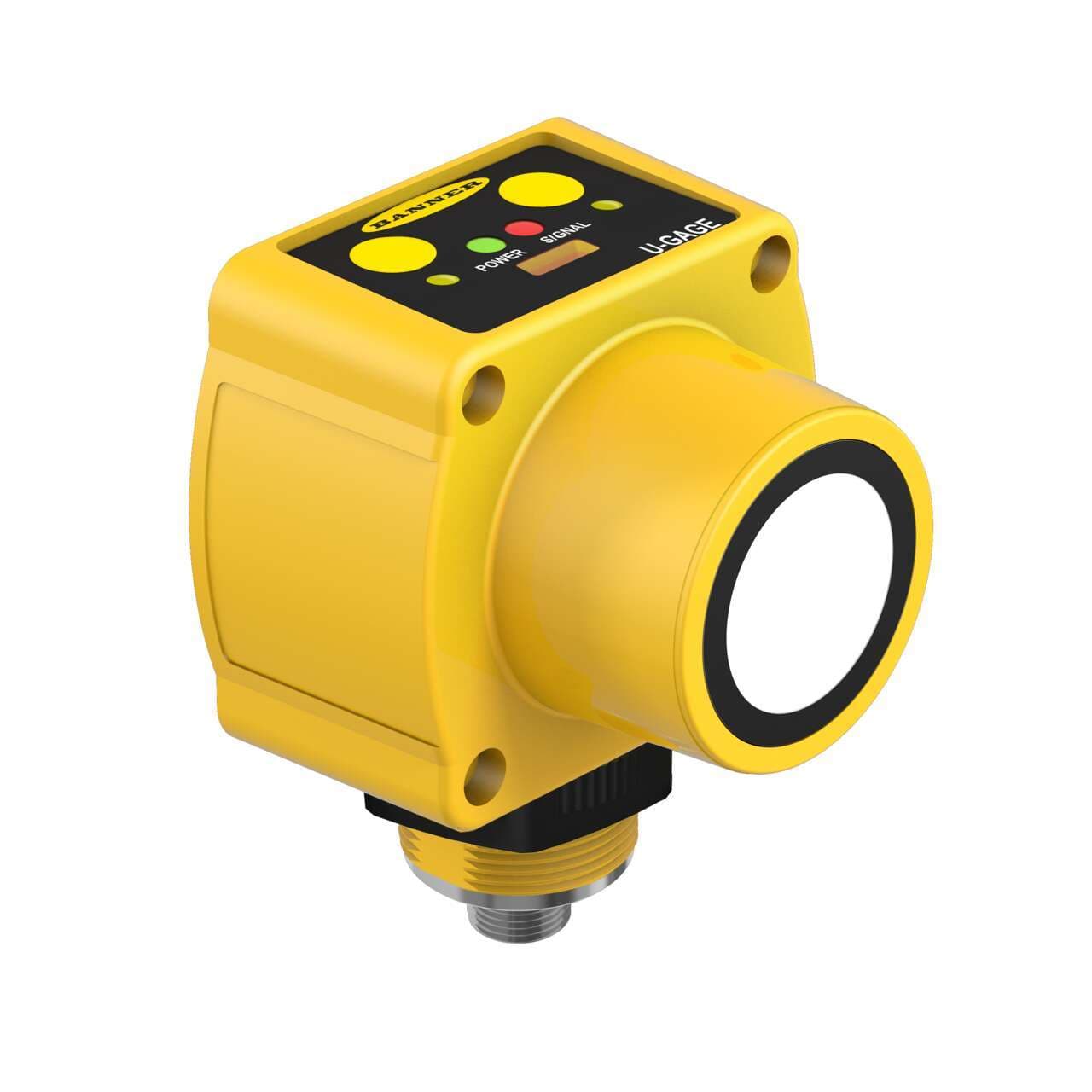

QT50UDBQ6 Banner Ultrasonic Sensors

Banner QT50UDBQ6 QT50U Dual-Discrete Series: Proximity Mode; Range: 200 mm - 8 m; Input: 10-30 V dc; Outputs: 2 Discrete NPN or PNP; 5-pin M12 Integral QD
Banner

Part#:QT50UDBQ6

Manufacturer:Banner

Alt. Part#:2724

Product Lifecycle:Active

Get a quick Quote!

QT50U Dual-Discrete Series: Proximity Mode; Range: 200 mm - 8 m; Input: 10-30 V dc; Outputs: 2 Discrete NPN or PNP; 5-pin M12 Integral QD

About the manufacturer: Banner is one of the manufacturers that offers Ultrasonic Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the QT50UDBQ6 Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight408.2328 g
  • Country Of OriginUS
  • Sensing distance
    20cm...8m
  • Degree of protection
    IP67 NEMA 6P
  • Emission frequency
    75kHz
  • Main function
    Sensor (Distance)
  • Shape
    Rectangular
  • Thread size
    M30
  • Primary brand
    Banner Engineering
  • Product series / family name
    U-GAGE series
  • Connection type
    Pre-equipped with 5-pin Euro-style M12 connector
  • Material
    thermoplastic housing
  • Order code / Manufacturer SKU
    02724
  • Design
    time-of-flight system
  • Mounting mode
    Threaded mount
  • Digital outputs
    2 x digital outputs (PNP/NPN transistors)
  • Supply voltage (DC)
    10Vdc-30Vdc (12Vdc / 24Vdc nom.)
  • Sub-range name
    QT50UDB series
  • Functions
    Ultrasonic distance sensor green LED (power ON) amber LED (output state) red LED (signal)
  • Ambient air temperature for operation
    -20...+70 °C
  • Protection functions
    Short-circuit
  • Compliant with standard(s)
    CE
  • Sensing Beam
    Ultrasonic
  • Input/Output
    Discrete
  • Temperature Effect (mm/°C)
    Uncompensated: 0.2% of distance/°C; Compensated: 0.02% of distance/°C
  • IP Rating
    IP67
  • Warm-up Time (minutes)
    15
  • Feature: Clear Object Detection
    Yes
  • Primary Housing Material
    PBT
  • Max Sensing Distance (mm)
    8000
  • Discrete (Switched) Outputs
    2 NPN/PNP Configurable
  • Discrete Output Hysteresis (mm)
    5
  • Feature: Pump-in/ Pump-out
    Yes
  • Profibus
    No
  • PC Configurable
    No
  • Indicator
    LED(s)
  • Adjustments
    Push Button (s)
  • Output Protection
    Protected against short circuit conditions
  • Rep Rate (ms)
    96
  • Feature: Chemical Resistant
    No
  • SSI
    No
  • Housing Style
    Rectangular
  • Delay at Power-up (ms)
    1500
  • Max Discrete (Switched) Output (mA)
    150
  • Minimum Response Time (ms)
    100
  • Power/Current Consumption (exclusive of load)
    100 mA max @ 10 V dc; 40 mA max @ 30 V dc
  • RS-232
    No
  • 1-wire Serial Interface
    No
  • Sensing Mode (Detailed)
    Time of Flight
  • Connection
    Integral QD
  • Vibration
    MIL-STD-202F req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
  • NEMA Rating
    NEMA 6P
  • Ultrasonic Frequency (kHz)
    75
  • IO Link
    No
  • Wireless
    No
  • Power
    DC
  • Power Supply
    10-30 V dc
  • Output Saturation Voltage NPN Outputs
    < 0.2 V at 10 mA; < 0.65 V at 150 mA
  • Max Op. Relative Humidity Non-Condensing (%)
    100
  • Max Off-state Leakage Current (µA)
    5
  • PROFINET
    No
  • Sensing Mode (General)
    Proximity
  • Analog Resolution/Discrete Repeatability
    1
  • Mechanical Shock
    IEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave
  • Storage Temperature (°C)
    -40 to 90
  • Feature: Remote Teach
    Yes
  • Common Ethernet Protocol
    No
  • Max Measurement Range
    >1 m - <=20 m
  • Minimum Sensing Distance (mm)
    200
  • Output Saturation Voltage PNP Outputs
    < 1.2 V at 10 mA; < 1.65 V at 100 mA
  • Min Operating Temperature (°C)
    -20
  • Supply Protection Circuitry
    Protected against reverse polarity and transient overvoltages
  • Application: Ultrasonic
    Yes
  • Device Type
    Sensor
  • Quick Disconnect Type
    M12 (Euro)
  • Number of Pins
    5
  • Max Operating Temperature (°C)
    70
  • Minimum Window Size (mm)
    20
  • Feature: Timing (Hold/Delay)
    No
  • RS-485
    No
  • RS-422
    No

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

QT50UDBQ6 Description

Banner Engineering QT50UDBQ6 is an ultrasonic distance sensor characterized by its M30 threaded mount and operates within an ambient air temperature range of -20 to +70°C. This sensor employs a time-of-flight system for distance measurement and comes pre-equipped with a 5-pin Euro-style M12 connector for connectivity. Part of the QT50UDB series, it offers a degree of protection rated at IP67 NEMA 6P, ensuring durability in various environments. The QT50UDBQ6 operates on a supply voltage range of 10Vdc to 30Vdc, with nominal values of 12Vdc and 24Vdc. It features a rectangular shape and is constructed with a thermoplastic housing. With a 75kHz transmission frequency, this sensor can detect distances from 20cm up to 8m and includes 2 digital outputs (PNP/NPN transistor) for interfacing. It also incorporates protection functions against short-circuits.

Related documents QT50UDBQ6 Specs

QT50UDBQ6 110112.pdf
