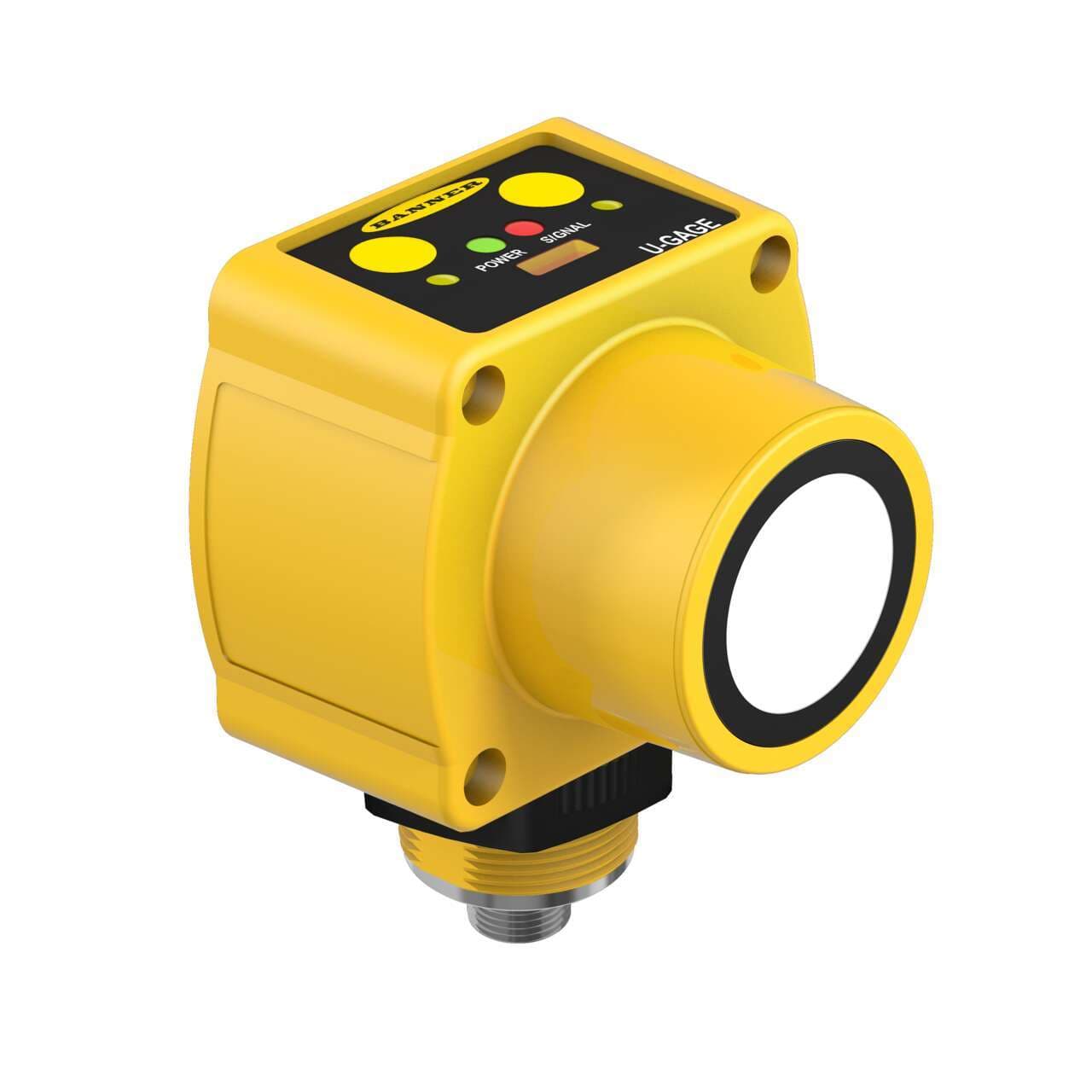

QT50UVR3FQ1 Banner Ultrasonic Sensors
Part#:QT50UVR3FQ1
Manufacturer:Banner
Alt. Part#:72258
Product Lifecycle:Active
Get a quick Quote!
QT50U Universal Voltage Fill-Level Series: Proximity; Range: 200 mm - 8 m; Input: 85-264 V ac 50/60 Hz/48 to 250 V dc; Output: SPDT electromechanical relay; Micro 5-pin QD
About the manufacturer: Banner is one of the manufacturers that offers Ultrasonic Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the QT50UVR3FQ1 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight408.2328 g
- Country Of OriginUS
- Primary Housing Material PBT
- Temperature Effect (mm/°C) Uncompensated: 0.2% of distance/°C; Compensated: 0.02% of distance/°C
- Max Discrete (Switched) Output (mA) 8000
- Warm-up Time (minutes) 30
- Common Ethernet Protocol No
- Profibus No
- Temp. Warm-up Drift (Notes 1) After 5 min, the apparent switchpoint is < 0.6% of the actual position.
- Application: Ultrasonic Yes
- RS-485 No
- Max Measurement Range >1 m - <=20 m
- Minimum Sensing Distance (mm) 200
- IP Rating IP67
- Temperature Warm-up Drift upon Power-up < 7% of the sensing distance upon power-up.
- Power/Current Consumption (exclusive of load) 1.5 W max
- RS-232 No
- Sensing Beam Ultrasonic
- Quick Disconnect Type M12 (Euro)
- Number of Pins 5
- Max Op. Relative Humidity Non-Condensing (%) 100
- Rep Rate (ms) 96
- Wireless No
- Device Type Sensor
- Adjustments Push Button (s)
- Max Operating Temperature (°C) 70
- Minimum Response Time (ms) 100
- PROFINET No
- Feature: Timing (Hold/Delay) No
- Power AC/DC Universal
- Analog Resolution/Discrete Repeatability 1
- Vibration MIL-STD-202F req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
- Output Protection Protected against short circuit conditions
- Ultrasonic Frequency (kHz) 75
- PC Configurable No
- Max Sensing Distance (mm) 8000
- Discrete (Switched) Outputs SPDT e/m Relay
- Temp. Warm-up Drift (Notes 2) After 25 min, the sensing position will be stable.
- Housing Style Rectangular
- Indicator LED(s)
- Delay at Power-up (ms) 1500
- Storage Temperature (°C) -40 to 90
- Feature: Clear Object Detection Yes
- Feature: Pump-in/ Pump-out Yes
- Sensing Mode (General) Proximity
- Power Supply 85-264 V ac / 48-250 V dc
- Input/Output E/M Relay
- NEMA Rating NEMA 6P
- Feature: Remote Teach Yes
- Sensing Mode (Detailed) Time of Flight
- Connection Integral QD
- Mechanical Shock IEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave
- Min Operating Temperature (°C) -20
- Minimum Window Size (mm) 20
- RS-422 No
- IO Link No
- 1-wire Serial Interface No
- Supply Protection Circuitry Protected against reverse polarity and transient overvoltages
- Feature: Chemical Resistant No
- SSI No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
QT50UVR3FQ1 Description
Banner Engineering QT50UVR3FQ1 is an ultrasonic distance sensor featuring a time-of-flight system for precise measurements. It is designed with an M30 threaded mount for secure installation and is equipped with a 5-pin 1/2" micro connector for connectivity. This sensor operates within an ambient air temperature range of -20 to +70°C and is housed in a durable thermoplastic material. It supports a wide supply voltage range, accepting 85Vac-264Vac (with 200Vac, 220Vac, and 240Vac nominal) and 48Vdc-250Vdc (120Vdc nominal), making it versatile for various power supplies. The QT50UVR series sensor operates at a 75kHz transmission frequency and can detect distances from 20cm up to 8m. It offers a single digital output (SPDT relay contact) and is protected against short-circuits. The device is also rated with an IP67 NEMA 6P degree of protection, ensuring its operation in challenging environmental conditions.
