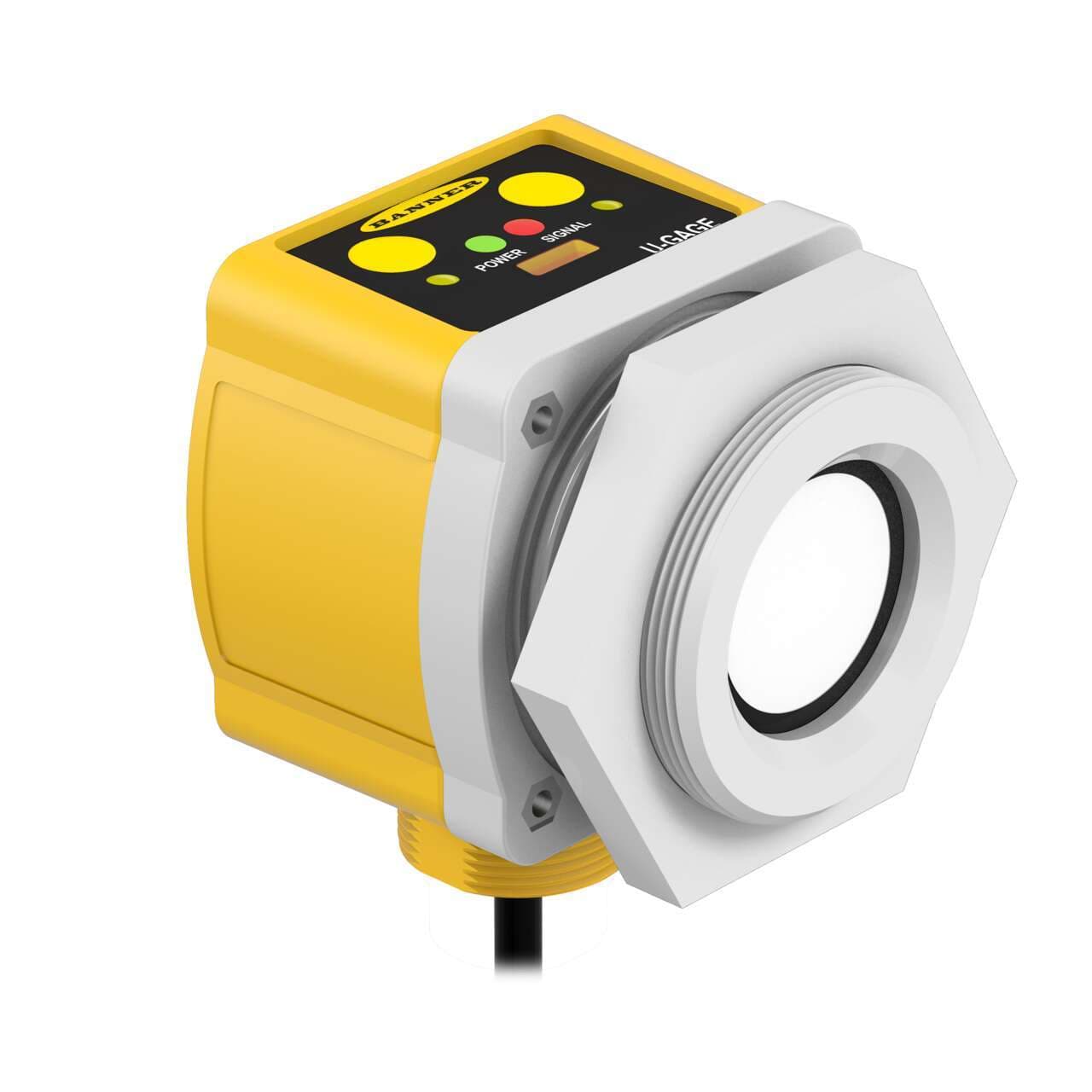

QT50ULB-CRFV Banner Ultrasonic Sensors
Part#:QT50ULB-CRFV
Manufacturer:Banner
Alt. Part#:74833
Product Lifecycle:Active
Get a quick Quote!
QT50U Chemical Resistant Series: Proximity Mode; Range: 200 mm - 6 m; Input: 10-30 V dc; Outputs: Analog: 0-10 V or 4-20 mA; 2 m (6.5 ft) Cable
About the manufacturer: Banner is one of the manufacturers that offers Ultrasonic Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the QT50ULB-CRFV Banner price in the box on the right side or send a quick quote.
Product Details
- Weight625.95696 g
- Country Of OriginUS
- Primary brand Banner Engineering
- Material thermoplastic housing
- Order code / Manufacturer SKU 74833
- Product series / family name U-GAGE series
- Design time-of-flight system
- Sub-range name QT50ULB series
- Thread size M30
- Analog outputs 1 x analog output (0-10Vdc / 4-20mA)
- Chemical resistance chemical-resistant
- Main function Sensor (Distance)
- Sensing distance 20cm...6m
- Shape Rectangular
- Mounting mode Threaded mount
- Emission frequency 75kHz
- Functions Ultrasonic distance sensor/transmitter green LED (power ON) amber LED (output state) red LED (signal)
- Supply voltage (DC) 13Vdc-30Vdc (24Vdc nom.)
- Connection type Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
- Ambient air temperature for operation -20...+70 °C
- Compliant with standard(s) CE
- Degree of protection IP67 NEMA 6P
- Protection functions Short-circuit
- Equivalent to QT50ULBCRFV
- PC Configurable No
- Indicator LED(s)
- Vibration MIL-STD-202F req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
- Warm-up Time (minutes) 15
- Analog Linearity (mm) +/- 0.2% of span from 200 to 8000 mm; +/- 0.1 % of span from 500 to 8000 mm (1 mm minimum)
- Common Ethernet Protocol No
- Cable Length (m) 2
- Analog Output Configuration 0-10 V dc or 4-20 mA
- Analog Current Output Rating 1 kΩ or [(Vcc-5 V)/0.02 A] Ω, whichever is lower
- Temperature Warm-up Drift upon Power-up < 7% of the sensing distance upon power-up.
- Feature: Remote Teach Yes
- PROFINET No
- Sensing Mode (Detailed) Time of Flight
- Power Supply 13-30 V dc
- IP Rating IP67
- Rep Rate (ms) 96
- Feature: Chemical Resistant Yes
- 1-wire Serial Interface No
- Max Measurement Range >1 m - <=20 m
- Input/Output Analog
- Adjustments Push Button (s)
- Temp. Warm-up Drift (Notes 1) After 5 min, the apparent switchpoint is < 0.6% of the actual position.
- NEMA Rating NEMA 6P
- Feature: Timing (Hold/Delay) No
- RS-485 No
- Power DC
- Connection Flying Leads
- Number of Pins 5
- Min Operating Temperature (°C) -20
- Ultrasonic Frequency (kHz) 75
- SSI No
- Housing Style Rectangular
- Max Sensing Distance (mm) 6000
- Output Protection Protected against short circuit conditions
- Minimum Response Time (ms) 100
- Supply Protection Circuitry Protected against reverse polarity and transient overvoltages
- IO Link No
- Sensing Beam Ultrasonic
- Primary Housing Material PBT
- Minimum Sensing Distance (mm) 200
- Analog Voltage Output Rating 500 Ω min. load impedance
- Temp. Warm-up Drift (Notes 2) After 25 min, the sensing position will be stable.
- Feature: Clear Object Detection Yes
- Device Type Sensor
- Analog Resolution/Discrete Repeatability 1
- Mechanical Shock IEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave
- Max Op. Relative Humidity Non-Condensing (%) 100
- Barrel Diameter (mm) 56
- Wireless No
- Temperature Effect (mm/°C) Uncompensated: 0.2% of distance/°C; Compensated: 0.02% of distance/°C
- Storage Temperature (°C) -40 to 90
- Minimum Window Size (mm) 20
- Application: Ultrasonic Yes
- Sensing Mode (General) Proximity
- Quick Disconnect Type No QD
- Delay at Power-up (ms) 1500
- Max Operating Temperature (°C) 70
- Power/Current Consumption (exclusive of load) 100 mA max @ 10 V dc; 40 mA max @ 30 V dc
- RS-232 No
- RS-422 No
- Profibus No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
QT50ULB-CRFV Description
Banner Engineering QT50ULB-CRFV is an ultrasonic distance sensor/transmitter designed for a variety of applications requiring precise distance measurement. This sensor operates within a sensing distance range of 20cm to 6m and utilizes a time-of-flight system for accurate measurements. It features a rectangular, thermoplastic housing with an M30 threaded mount for secure installation. The QT50ULB-CRFV is equipped with a pre-wired 6.5ft / 2m cable terminated with bare end flying leads for easy connection. It operates within an ambient air temperature range of -20 to +70°C and is designed to withstand harsh environments with an IP67 NEMA 6P degree of protection and chemical resistance. This model supports a supply voltage range of 13Vdc to 30Vdc (24Vdc nom.) and includes protection functions against short-circuits. It offers an analog output (0-10Vdc / 4-20mA) and operates at a 75kHz transmission frequency, making it suitable for a wide range of industrial applications.
