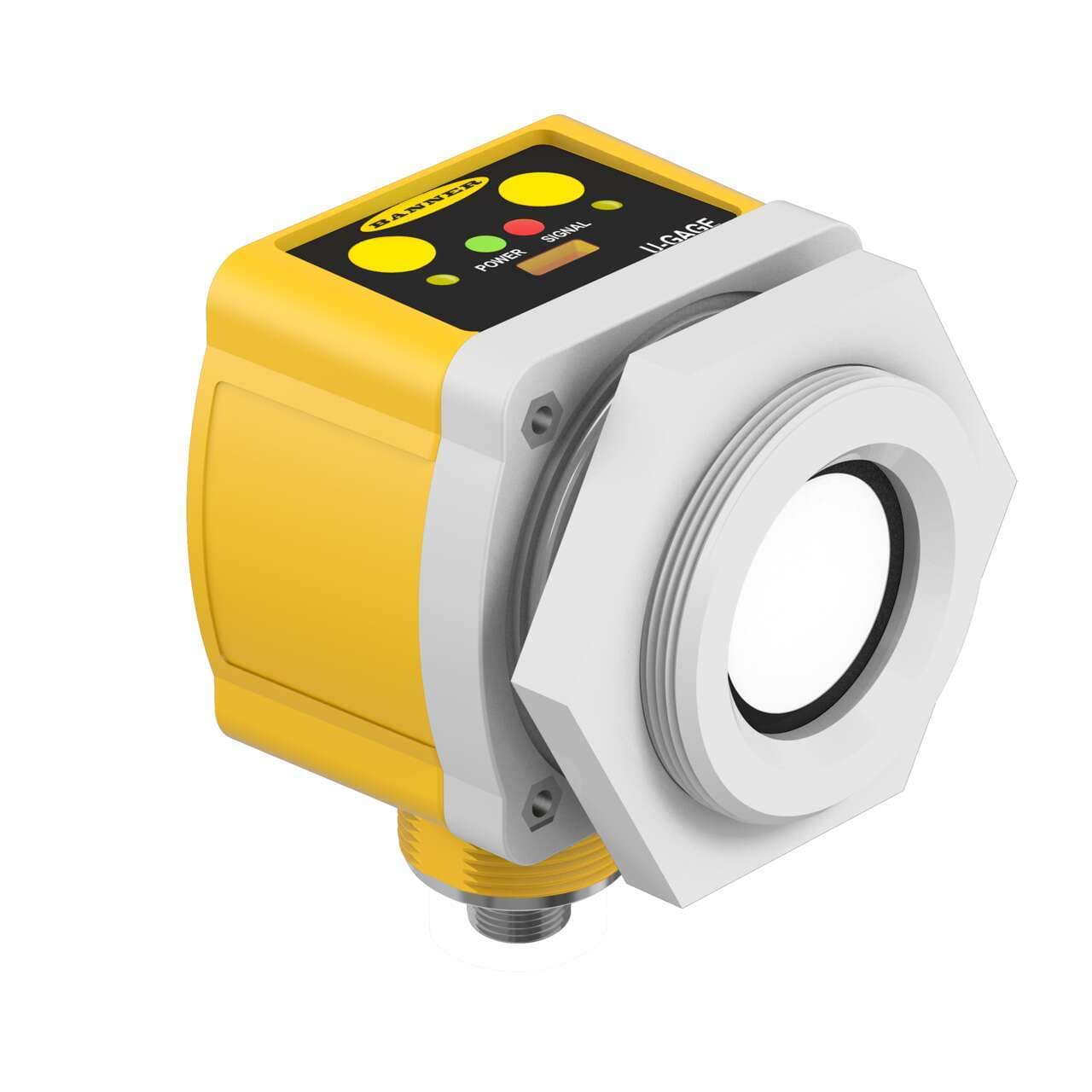

QT50ULBQ6-CRFV Banner Ultrasonic Sensors

Product Details

• Weight498.9512 g
• Country Of OriginUS
• Main function
  Sensor (Distance)
• Functions
  Ultrasonic distance sensor/transmitter green LED (power ON) amber LED (output state) red LED (signal)
• Connection type
  Pre-equipped with 5-pin Euro-style M12 connector
• Material
  thermoplastic housing
• Emission frequency
  75kHz
• Primary brand
  Banner Engineering
• Supply voltage (DC)
  13Vdc-30Vdc (24Vdc nom.)
• Thread size
  M30
• Degree of protection
  IP67 NEMA 6P
• Sensing distance
  20cm...6m
• Analog outputs
  1 x analog output (0-10Vdc / 4-20mA)
• Chemical resistance
  chemical-resistant
• Compliant with standard(s)
  CE
• Mounting mode
  Threaded mount
• Ambient air temperature for operation
  -20...+70 °C
• Order code / Manufacturer SKU
  74835
• Product series / family name
  U-GAGE series
• Protection functions
  Short-circuit
Sub-range name
QT50ULB series
Shape
Rectangular
Design
time-of-flight system
Equivalent to
QT50ULBQ6CRFV
Power
DC
Analog Resolution/Discrete Repeatability
1
Common Ethernet Protocol
No
Connection
Integral QD
Mechanical Shock
IEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave
Max Operating Temperature (°C)
70
Supply Protection Circuitry
Protected against reverse polarity and transient overvoltages
Sensing Mode (Detailed)
Time of Flight
Max Sensing Distance (mm)
6000
Analog Voltage Output Rating
500 Ω min. load impedance
Temp. Warm-up Drift (Notes 2)
After 25 min, the sensing position will be stable.
Ultrasonic Frequency (kHz)
75
Device Type
Sensor
Power Supply
13-30 V dc
IP Rating
IP67
Warm-up Time (minutes)
15
Feature: Remote Teach
Yes
Wireless
No
Sensing Mode (General)
Proximity
Input/Output
Analog
Adjustments
Push Button (s)
Minimum Response Time (ms)
100
Application: Ultrasonic
Yes
Max Measurement Range
>1 m - <=20 m
Indicator
LED(s)
Number of Pins
5
NEMA Rating
NEMA 6P
Rep Rate (ms)
96
Feature: Chemical Resistant
Yes
Sensing Beam
Ultrasonic
Analog Output Configuration
0-10 V dc or 4-20 mA
Analog Current Output Rating
1 kΩ or [(Vcc-5 V)/0.02 A] Ω, whichever is lower
Min Operating Temperature (°C)
-20
Analog Linearity (mm)
+/- 0.2% of span from 200 to 8000 mm; +/- 0.1 % of span from 500 to 8000 mm (1 mm minimum)
PROFINET
No
PC Configurable
No
Quick Disconnect Type
M12 (Euro)
Vibration
MIL-STD-202F req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
Storage Temperature (°C)
-40 to 90
Barrel Diameter (mm)
56
Primary Housing Material
PBT
Minimum Sensing Distance (mm)
200
Temperature Warm-up Drift upon Power-up
< 7% of the sensing distance upon power-up.
Feature: Clear Object Detection
Yes
1-wire Serial Interface
No
Housing Style
Rectangular
Delay at Power-up (ms)
1500
Output Protection
Protected against short circuit conditions
Max Op. Relative Humidity Non-Condensing (%)
100
Power/Current Consumption (exclusive of load)
100 mA max @ 10 V dc; 40 mA max @ 30 V dc
Temperature Effect (mm/°C)
Uncompensated: 0.2% of distance/°C; Compensated: 0.02% of distance/°C
Temp. Warm-up Drift (Notes 1)
After 5 min, the apparent switchpoint is < 0.6% of the actual position.
Minimum Window Size (mm)
20
RS-232
No
RS-485
No
Profibus
No
IO Link
No
Feature: Timing (Hold/Delay)
No
SSI
No
RS-422
No
