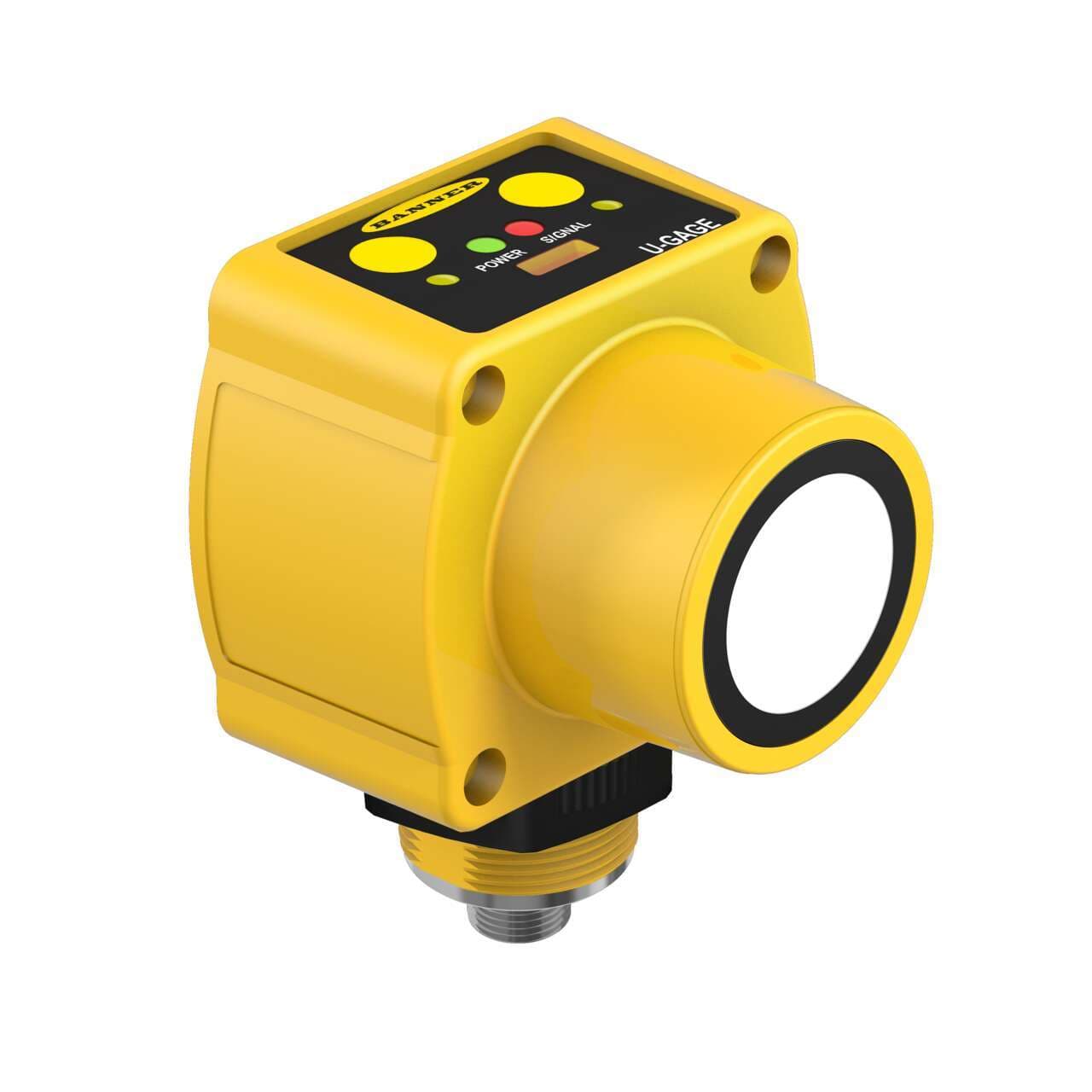

QT50ULBQ6 Banner Ultrasonic Sensors

Banner QT50ULBQ6 QT50U Analog Series: Proximity Mode; Range: 200 mm - 8 m; Input: 10-30 V dc; Outputs: Analog: 0-10 V or 4-20 mA; 5-pin M12 Integral QD
Banner

Part#:QT50ULBQ6

Manufacturer:Banner

Alt. Part#:2728

Product Lifecycle:Active

Get a quick Quote!

QT50U Analog Series: Proximity Mode; Range: 200 mm - 8 m; Input: 10-30 V dc; Outputs: Analog: 0-10 V or 4-20 mA; 5-pin M12 Integral QD

About the manufacturer: Banner is one of the manufacturers that offers Ultrasonic Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the QT50ULBQ6 Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight417.30464 g
  • Country Of OriginUS
  • Sub-range name
    QT50ULB series
  • Shape
    Rectangular
  • Material
    thermoplastic housing
  • Main function
    Sensor (Distance)
  • Supply voltage (DC)
    13Vdc-30Vdc (24Vdc nom.)
  • Thread size
    M30
  • Protection functions
    Short-circuit
  • Order code / Manufacturer SKU
    02728
  • Product series / family name
    U-GAGE series
  • Functions
    Ultrasonic distance sensor/transmitter green LED (power ON) amber LED (output state) red LED (signal)
  • Connection type
    Pre-equipped with 5-pin Euro-style M12 connector
  • Degree of protection
    IP67 NEMA 6P
  • Compliant with standard(s)
    CE
  • Primary brand
    Banner Engineering
  • Sensing distance
    20cm...8m
  • Ambient air temperature for operation
    -20...+70 °C
  • Design
    time-of-flight system
  • Mounting mode
    Threaded mount
  • Analog outputs
    1 x analog output (0-10Vdc / 4-20mA)
  • Emission frequency
    75kHz
  • Device Type
    Sensor
  • Analog Output Configuration
    0-10 V dc or 4-20 mA
  • Number of Pins
    5
  • Max Operating Temperature (°C)
    70
  • Power/Current Consumption (exclusive of load)
    100 mA max @ 10 V dc; 40 mA max @ 30 V dc
  • Feature: Chemical Resistant
    No
  • Sensing Beam
    Ultrasonic
  • Primary Housing Material
    PBT
  • Max Sensing Distance (mm)
    8000
  • Analog Linearity (mm)
    +/- 0.2% of span from 200 to 8000 mm; +/- 0.1 % of span from 500 to 8000 mm (1 mm minimum)
  • RS-422
    No
  • 1-wire Serial Interface
    No
  • PC Configurable
    No
  • Temperature Effect (mm/°C)
    Uncompensated: 0.2% of distance/°C; Compensated: 0.02% of distance/°C
  • Output Protection
    Protected against short circuit conditions
  • Minimum Response Time (ms)
    100
  • PROFINET
    No
  • Sensing Mode (General)
    Proximity
  • Analog Resolution/Discrete Repeatability
    1
  • Adjustments
    Push Button (s)
  • NEMA Rating
    NEMA 6P
  • Ultrasonic Frequency (kHz)
    75
  • Feature: Timing (Hold/Delay)
    No
  • RS-485
    No
  • Power
    DC
  • Analog Voltage Output Rating
    500 Ω min. load impedance
  • Warm-up Time (minutes)
    15
  • Common Ethernet Protocol
    No
  • RS-232
    No
  • Max Measurement Range
    >1 m - <=20 m
  • Input/Output
    Analog
  • Minimum Sensing Distance (mm)
    200
  • Mechanical Shock
    IEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave
  • Min Operating Temperature (°C)
    -20
  • Feature: Remote Teach
    Yes
  • Wireless
    No
  • Housing Style
    Rectangular
  • Quick Disconnect Type
    M12 (Euro)
  • Vibration
    MIL-STD-202F req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
  • IP Rating
    IP67
  • Max Op. Relative Humidity Non-Condensing (%)
    100
  • Application: Ultrasonic
    Yes
  • SSI
    No
  • Indicator
    LED(s)
  • Power Supply
    13-30 V dc
  • Analog Current Output Rating
    1 kΩ or [(Vcc-5 V)/0.02 A] Ω, whichever is lower
  • Rep Rate (ms)
    96
  • Supply Protection Circuitry
    Protected against reverse polarity and transient overvoltages
  • IO Link
    No
  • Profibus
    No
  • Sensing Mode (Detailed)
    Time of Flight
  • Connection
    Integral QD
  • Delay at Power-up (ms)
    1500
  • Storage Temperature (°C)
    -40 to 90
  • Minimum Window Size (mm)
    20
  • Feature: Clear Object Detection
    Yes

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

QT50ULBQ6 Description

Banner Engineering QT50ULBQ6 is an ultrasonic distance sensor/transmitter designed with a time-of-flight system. This sensor features a M30 threaded mount for installation and is pre-equipped with a 5-pin Euro-style M12 connector for connectivity. It operates within an ambient air temperature range of -20 to +70°C and is housed in a thermoplastic material, ensuring durability. The QT50ULBQ6, part of the QT50ULB series, offers a sensing distance of 20cm to 8m and operates at a frequency of 75kHz. It is powered by a supply voltage of 13Vdc to 30Vdc, with 24Vdc nominal. For output, it provides 1 x analog output (0-10Vdc / 4-20mA) and includes protection functions against short-circuit. The device is designed with a rectangular shape and ensures a degree of protection rated at IP67 NEMA 6P.

Related documents QT50ULBQ6 Specs

QT50ULBQ6 70137.pdf
