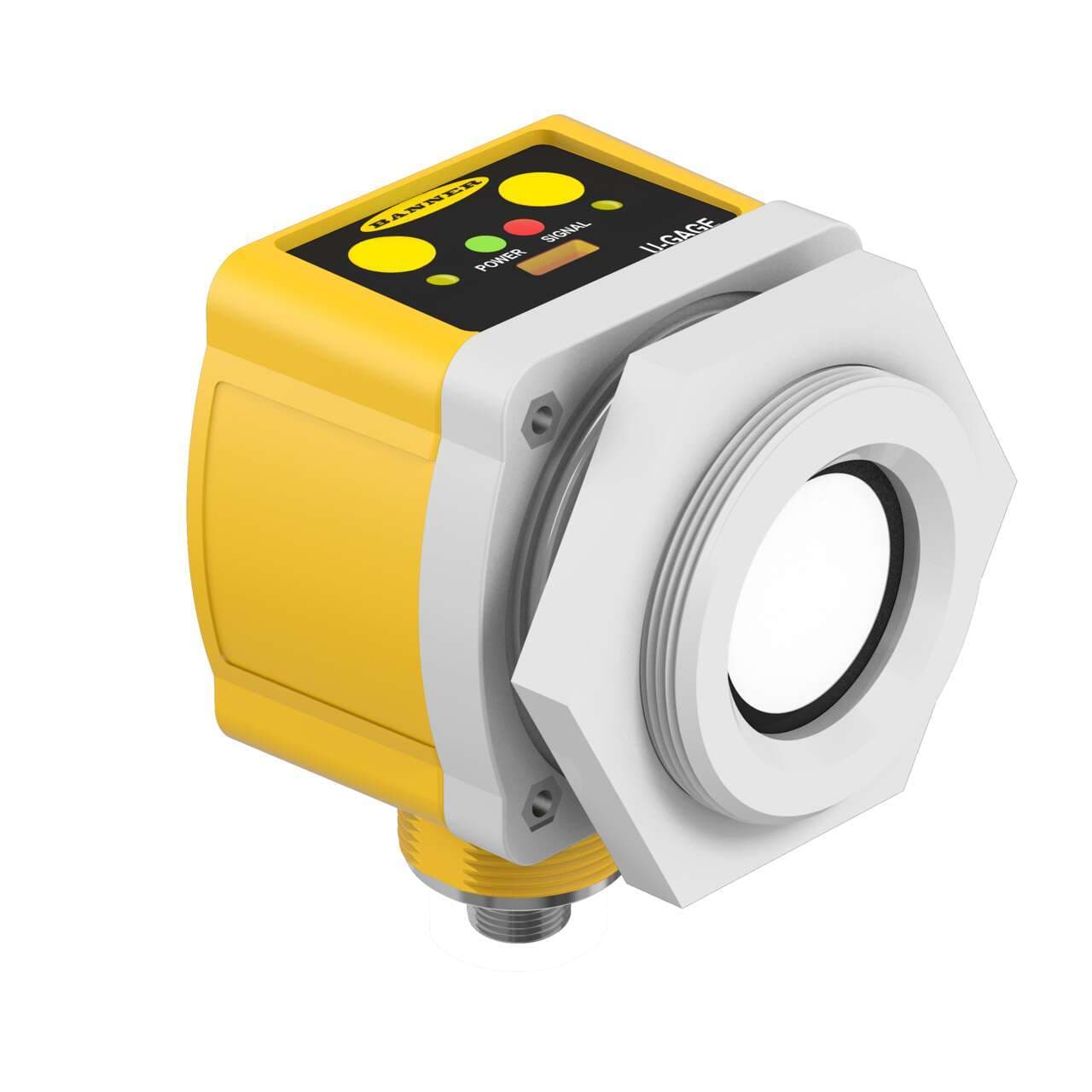

QT50UVR3WQ1-CRFV Banner Ultrasonic Sensors
Part#:QT50UVR3WQ1-CRFV
Manufacturer:Banner
Alt. Part#:74178
Product Lifecycle:Active
Get a quick Quote!
QT50U Chemical Resistant Universal Voltage Series: Proximity Mode; Range: 200 mm - 6 m; Input: 85-264 V ac 50/60 Hz/48 to 250 V dc; Output: SPDT electromechanical relay; Micro 5-pin QD
About the manufacturer: Banner is one of the manufacturers that offers Ultrasonic Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the QT50UVR3WQ1-CRFV Banner price in the box on the right side or send a quick quote.
Product Details
- Weight589.6696 g
- Country Of OriginUS
- Main function Sensor (Distance)
- Functions Ultrasonic distance sensor green LED (power ON) amber LED (output state) red LED (signal)
- Degree of protection IP67 NEMA 6P
- Supply voltage (DC) 48Vdc-250Vdc (120Vdc nom.)
- Product series / family name U-GAGE series
- Connection type Pre-equipped with 5-pin 1/2" Micro connector
- Sub-range name QT50UVR series
- Shape Rectangular
- Protection functions Short-circuit
- Primary brand Banner Engineering
- Supply voltage (AC) 85Vac-264Vac (200Vac / 220Vac / 240Vac nom.)
- Design time-of-flight system
- Mounting mode Threaded mount
- Sensing distance 20cm...6m
- Digital outputs 1 x digital output (SPDT contact type)
- Material thermoplastic housing
- Order code / Manufacturer SKU 74178
- Thread size M30
- Emission frequency 75kHz
- Equivalent to QT50UVR3WQ1CRFV
- Ambient air temperature for operation -20...+70 °C
- Chemical resistance chemical-resistant
- Compliant with standard(s) CE
- Device Type Sensor
- Power Supply 85-264 V ac / 48-250 V dc
- IP Rating IP67
- Barrel Diameter (mm) 56
- Sensing Beam Ultrasonic
- Analog Resolution/Discrete Repeatability 1
- Storage Temperature (°C) -40 to 90
- Feature: Chemical Resistant Yes
- Supply Protection Circuitry Protected against reverse polarity and transient overvoltages
- RS-232 No
- Primary Housing Material PBT
- Power AC/DC Universal
- Number of Pins 5
- Min Operating Temperature (°C) -20
- Discrete Output Hysteresis (mm) 5
- Feature: Timing (Hold/Delay) No
- 1-wire Serial Interface No
- Quick Disconnect Type M12 (Euro)
- Input/Output Discrete
- Temperature Effect (mm/°C) Uncompensated: 0.2% of distance/°C; Compensated: 0.02% of distance/°C
- Max Discrete (Switched) Output (mA) 8000
- Minimum Response Time (ms) 100
- Feature: Clear Object Detection Yes
- RS-485 No
- Indicator LED(s)
- Connection Integral QD
- Mechanical Shock IEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave
- Max Operating Temperature (°C) 70
- Minimum Window Size (mm) 20
- Common Ethernet Protocol No
- Sensing Mode (General) Proximity
- PC Configurable No
- Adjustments Push Button (s)
- Discrete (Switched) Outputs SPDT e/m Relay
- Max Op. Relative Humidity Non-Condensing (%) 100
- Feature: Remote Teach Yes
- SSI No
- Sensing Mode (Detailed) Time of Flight
- Minimum Sensing Distance (mm) 200
- Output Protection Protected against short circuit conditions
- Warm-up Time (minutes) 30
- Ultrasonic Frequency (kHz) 75
- IO Link No
- Housing Style Rectangular
- Delay at Power-up (ms) 1500
- NEMA Rating NEMA 6P
- Rep Rate (ms) 96
- PROFINET No
- Max Measurement Range >1 m - <=20 m
- Max Sensing Distance (mm) 6000
- Vibration MIL-STD-202F req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
- Temp. Warm-up Drift (Notes 1) After 15 min, the apparent switchpoint will be within is < 0.5% of the actual position.
- Power/Current Consumption (exclusive of load) 1.5 W max
- Application: Ultrasonic Yes
- Wireless No
- RS-422 No
- Temp. Warm-up Drift (Notes 2) After 30 min, the apparent switchpoint is < 0.3% of the actual position
- Temperature Warm-up Drift upon Power-up Temp. compensation enabled, < 0.8% of the sensing distance upon power-up.
- Profibus No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
QT50UVR3WQ1-CRFV Description
Banner Engineering QT50UVR3WQ1-CRFV is an ultrasonic distance sensor characterized by its M30 threaded mount and operates within an ambient air temperature range of -20 to +70°C. This sensor is designed as a time-of-flight system window-limit model and comes pre-equipped with a 5-pin 1/2" micro connector for connectivity. It supports a supply voltage range of 85Vac-264Vac (with 200Vac, 220Vac, and 240Vac as nominal) and 48Vdc-250Vdc (120Vdc nominal), making it versatile for various power supply configurations. Part of the QT50UVR series, it boasts an IP67 NEMA 6P degree of protection and is constructed from chemical-resistant thermoplastic, ensuring durability in harsh environments. The sensor operates at a 75kHz transmission frequency and offers a sensing distance of 20cm to 6m. It features a rectangular shape and includes 1 x digital output (SPDT rly. contact) for signal processing, alongside protection functions against short-circuit incidents.
