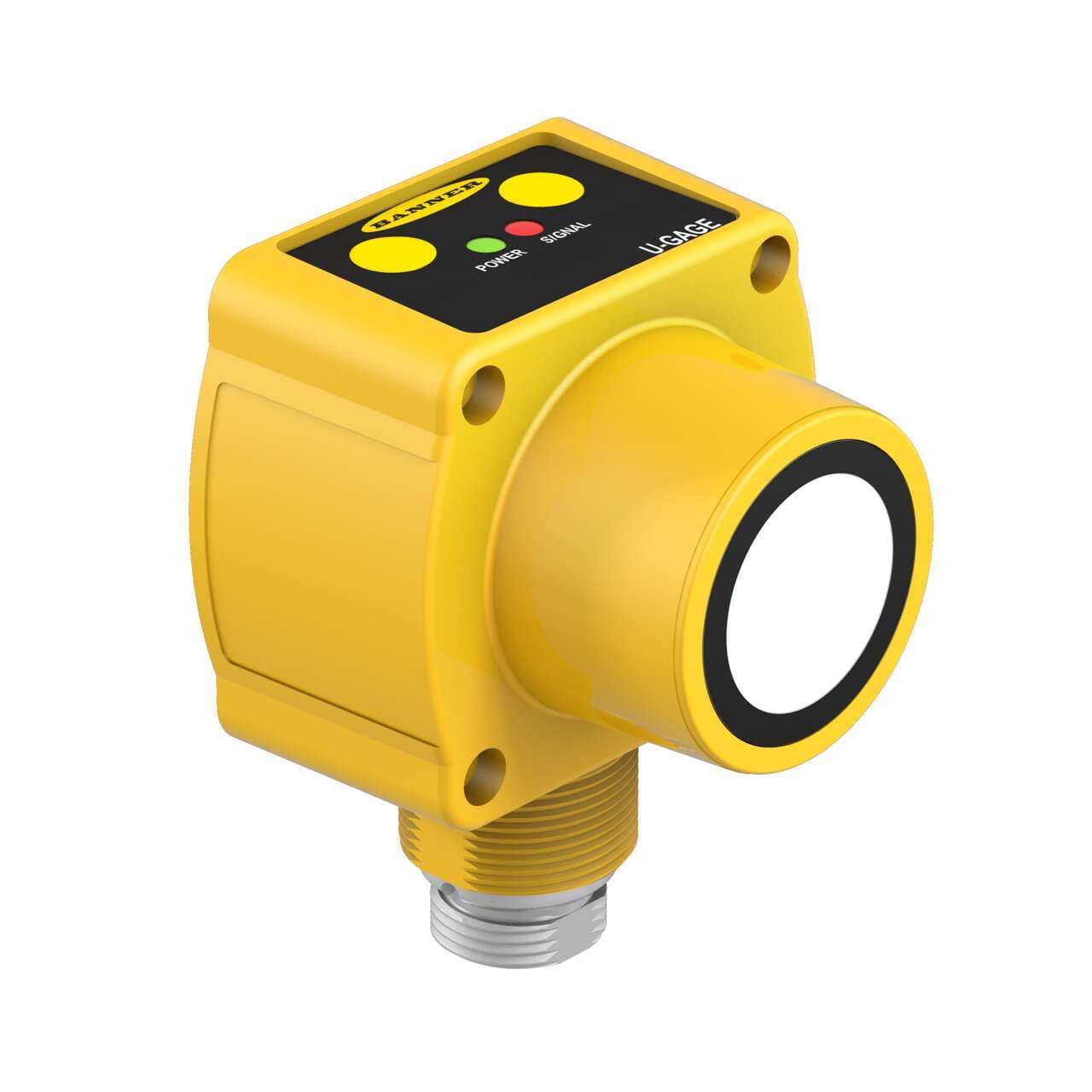

QT50UDBQ Banner Ultrasonic Sensors

Banner QT50UDBQ QT50U Dual-Discrete Series: Proximity Mode; Range: 200 mm - 8 m; Input: 10-30 V dc; Outputs: 2 Discrete NPN or PNP; 5-pin Mini-Style Integral QD
Banner

Part#:QT50UDBQ

Manufacturer:Banner

Alt. Part#:2723

Product Lifecycle:Active

Get a quick Quote!

QT50U Dual-Discrete Series: Proximity Mode; Range: 200 mm - 8 m; Input: 10-30 V dc; Outputs: 2 Discrete NPN or PNP; 5-pin Mini-Style Integral QD

About the manufacturer: Banner is one of the manufacturers that offers Ultrasonic Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the QT50UDBQ Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight408.2328 g
  • Country Of OriginUS
  • Primary brand
    Banner Engineering
  • Design
    time-of-flight system
  • Mounting mode
    Threaded mount
  • Material
    thermoplastic housing
  • Order code / Manufacturer SKU
    02723
  • Supply voltage (DC)
    10Vdc-30Vdc (12Vdc / 24Vdc nom.)
  • Shape
    Rectangular
  • Degree of protection
    IP67 NEMA 6P
  • Emission frequency
    75kHz
  • Sub-range name
    QT50UDB series
  • Sensing distance
    20cm...8m
  • Product series / family name
    U-GAGE series
  • Thread size
    M30
  • Protection functions
    Short-circuit
  • Main function
    Sensor (Distance)
  • Functions
    Ultrasonic distance sensor green LED (power ON) amber LED (output state) red LED (signal)
  • Connection type
    Pre-equipped with 5-pin 7/8" Mini connector
  • Ambient air temperature for operation
    -20...+70 °C
  • Digital outputs
    2 x digital outputs (PNP/NPN transistors)
  • Compliant with standard(s)
    CE
  • Primary Housing Material
    PBT
  • Max Sensing Distance (mm)
    8000
  • Number of Pins
    5
  • Min Operating Temperature (°C)
    -20
  • Feature: Remote Teach
    Yes
  • RS-232
    No
  • Power/Current Consumption (exclusive of load)
    100 mA max @ 10 V dc; 40 mA max @ 30 V dc
  • RS-422
    No
  • Discrete (Switched) Outputs
    2 NPN/PNP Configurable
  • Minimum Response Time (ms)
    100
  • Feature: Pump-in/ Pump-out
    Yes
  • 1-wire Serial Interface
    No
  • Sensing Mode (Detailed)
    Time of Flight
  • Quick Disconnect Type
    M12 (Euro)
  • Adjustments
    Push Button (s)
  • Max Operating Temperature (°C)
    70
  • Device Type
    Sensor
  • Temperature Effect (mm/°C)
    Uncompensated: 0.2% of distance/°C; Compensated: 0.02% of distance/°C
  • Power Supply
    10-30 V dc
  • Storage Temperature (°C)
    -40 to 90
  • Feature: Timing (Hold/Delay)
    No
  • SSI
    No
  • Power
    DC
  • Analog Resolution/Discrete Repeatability
    1
  • Max Discrete (Switched) Output (mA)
    150
  • Warm-up Time (minutes)
    15
  • Supply Protection Circuitry
    Protected against reverse polarity and transient overvoltages
  • RS-485
    No
  • Max Measurement Range
    >1 m - <=20 m
  • Indicator
    LED(s)
  • Mechanical Shock
    IEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave
  • IP Rating
    IP67
  • Discrete Output Hysteresis (mm)
    5
  • Application: Ultrasonic
    Yes
  • Sensing Mode (General)
    Proximity
  • Input/Output
    Discrete
  • Output Saturation Voltage NPN Outputs
    < 0.2 V at 10 mA; < 0.65 V at 150 mA
  • Max Op. Relative Humidity Non-Condensing (%)
    100
  • Max Off-state Leakage Current (µA)
    5
  • IO Link
    No
  • PC Configurable
    No
  • Connection
    Integral QD
  • Output Saturation Voltage PNP Outputs
    < 1.2 V at 10 mA; < 1.65 V at 100 mA
  • NEMA Rating
    NEMA 6P
  • Ultrasonic Frequency (kHz)
    75
  • Common Ethernet Protocol
    No
  • Housing Style
    Rectangular
  • Minimum Sensing Distance (mm)
    200
  • Vibration
    MIL-STD-202F req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
  • Rep Rate (ms)
    96
  • Feature: Chemical Resistant
    No
  • Wireless
    No
  • Sensing Beam
    Ultrasonic
  • Delay at Power-up (ms)
    1500
  • Output Protection
    Protected against short circuit conditions
  • Minimum Window Size (mm)
    20
  • Feature: Clear Object Detection
    Yes
  • PROFINET
    No
  • Profibus
    No

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

QT50UDBQ Description

Banner Engineering QT50UDBQ is an ultrasonic distance sensor belonging to the QT50UDB series. It features a time-of-flight system for distance measurement and is designed with a thermoplastic housing in a rectangular shape. This sensor operates within an ambient air temperature range of -20 to +70°C and is equipped with a 5-pin 7/8" mini connector for connectivity. It offers a sensing distance between 20cm and 8m and operates at a frequency of 75kHz. The QT50UDBQ is mounted using an M30 threaded mount and is protected by an IP67 NEMA 6P rated enclosure, ensuring its operation in various environmental conditions. It supports a supply voltage range of 10Vdc to 30Vdc, with 12Vdc and 24Vdc as nominal values. Additionally, it includes 2 digital outputs (PNP/NPN transistor) and features protection functions against short-circuits.

Related documents QT50UDBQ Specs

QT50UDBQ 110112.pdf

1-year warranty
