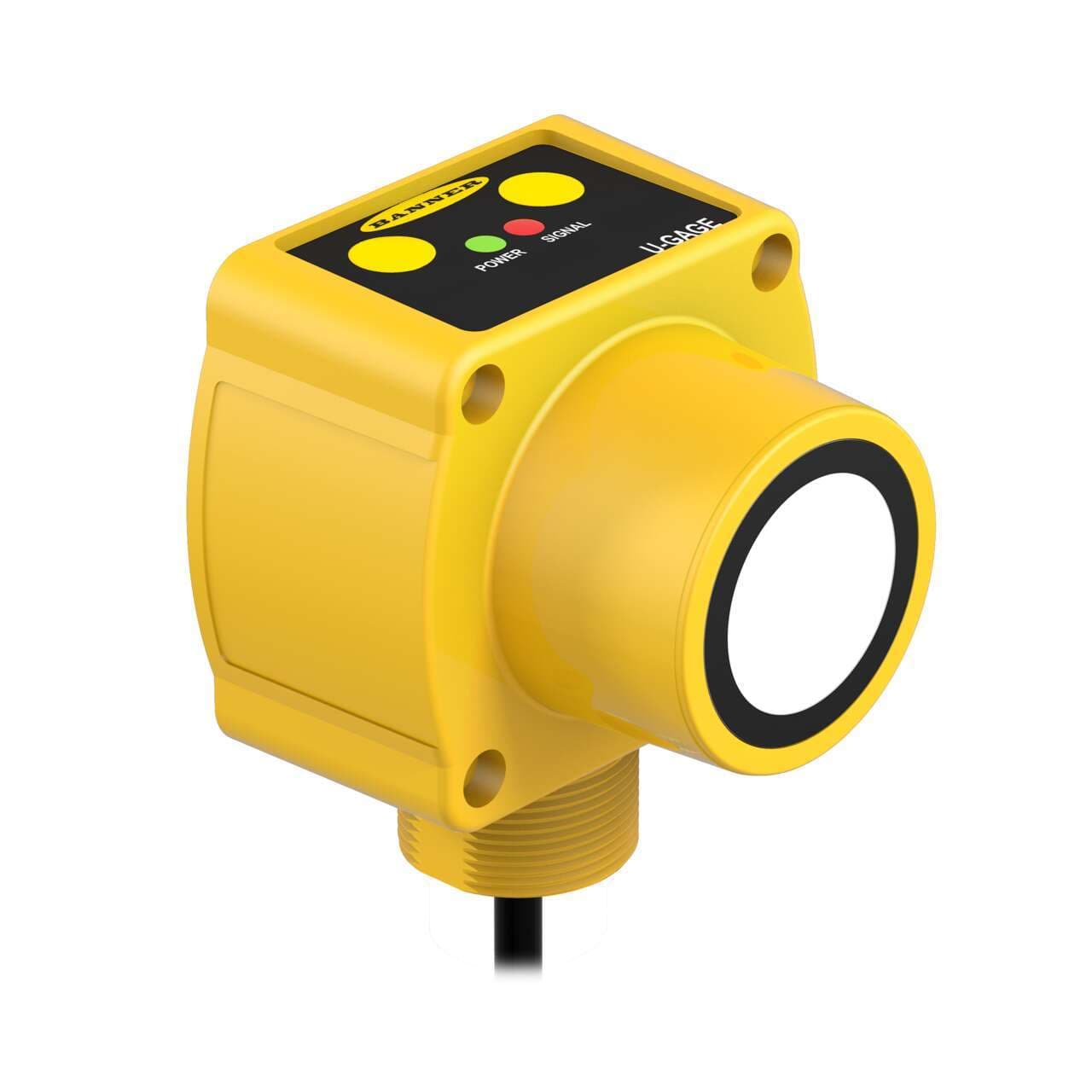

QT50UDB Banner Ultrasonic Sensors

Banner QT50UDB QT50U Dual-Discrete Series: Proximity Mode; Range: 200 mm - 8 m; Input: 10-30 V dc; Outputs: 2 Discrete NPN or PNP; 2 m (6.5 ft) Cable
Banner

Part#:QT50UDB

Manufacturer:Banner

Alt. Part#:2722

Product Lifecycle:Active

Get a quick Quote!

QT50U Dual-Discrete Series: Proximity Mode; Range: 200 mm - 8 m; Input: 10-30 V dc; Outputs: 2 Discrete NPN or PNP; 2 m (6.5 ft) Cable

About the manufacturer: Banner is one of the manufacturers that offers Ultrasonic Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the QT50UDB Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight489.87936 g
  • Country Of OriginUS
  • Sub-range name
    QT50UDB series
  • Design
    time-of-flight system
  • Mounting mode
    Threaded mount
  • Main function
    Sensor (Distance)
  • Functions
    Ultrasonic distance sensor green LED (power ON) amber LED (output state) red LED (signal)
  • Thread size
    M30
  • Material
    thermoplastic housing
  • Primary brand
    Banner Engineering
  • Shape
    Rectangular
  • Degree of protection
    IP67 NEMA 6P
  • Product series / family name
    U-GAGE series
  • Sensing distance
    20cm...8m
  • Connection type
    Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
  • Ambient air temperature for operation
    -20...+70 °C
  • Emission frequency
    75kHz
  • Supply voltage (DC)
    10Vdc-30Vdc (12Vdc / 24Vdc nom.)
  • Digital outputs
    2 x digital outputs (PNP/NPN transistors)
  • Compliant with standard(s)
    CE
  • Protection functions
    Short-circuit
  • Order code / Manufacturer SKU
    02722
  • Quick Disconnect Type
    No QD
  • Sensing Beam
    Ultrasonic
  • Output Protection
    Protected against short circuit conditions
  • Discrete Output Hysteresis (mm)
    5
  • SSI
    No
  • Sensing Mode (General)
    Proximity
  • Input/Output
    Discrete
  • Output Saturation Voltage PNP Outputs
    < 1.2 V at 10 mA; < 1.65 V at 100 mA
  • Storage Temperature (°C)
    -40 to 90
  • Warm-up Time (minutes)
    15
  • Feature: Chemical Resistant
    No
  • Power
    DC
  • Analog Resolution/Discrete Repeatability
    1
  • Number of Pins
    5
  • Ultrasonic Frequency (kHz)
    75
  • Application: Ultrasonic
    Yes
  • Max Measurement Range
    >1 m - <=20 m
  • Minimum Sensing Distance (mm)
    200
  • Vibration
    MIL-STD-202F req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
  • NEMA Rating
    NEMA 6P
  • Supply Protection Circuitry
    Protected against reverse polarity and transient overvoltages
  • IO Link
    No
  • PC Configurable
    No
  • Indicator
    LED(s)
  • Temperature Effect (mm/°C)
    Uncompensated: 0.2% of distance/°C; Compensated: 0.02% of distance/°C
  • Rep Rate (ms)
    96
  • Max Off-state Leakage Current (µA)
    5
  • Common Ethernet Protocol
    No
  • 1-wire Serial Interface
    No
  • Device Type
    Sensor
  • Connection
    Flying Leads
  • Output Saturation Voltage NPN Outputs
    < 0.2 V at 10 mA; < 0.65 V at 150 mA
  • Max Operating Temperature (°C)
    70
  • Feature: Remote Teach
    Yes
  • RS-232
    No
  • RS-422
    No
  • Housing Style
    Rectangular
  • Delay at Power-up (ms)
    1500
  • Discrete (Switched) Outputs
    2 NPN/PNP Configurable
  • Minimum Response Time (ms)
    100
  • Power/Current Consumption (exclusive of load)
    100 mA max @ 10 V dc; 40 mA max @ 30 V dc
  • Feature: Timing (Hold/Delay)
    No
  • Cable Length (m)
    2
  • Max Sensing Distance (mm)
    8000
  • IP Rating
    IP67
  • Minimum Window Size (mm)
    20
  • Feature: Pump-in/ Pump-out
    Yes
  • Primary Housing Material
    PBT
  • Adjustments
    Push Button (s)
  • Min Operating Temperature (°C)
    -20
  • Feature: Clear Object Detection
    Yes
  • RS-485
    No
  • Sensing Mode (Detailed)
    Time of Flight
  • Power Supply
    10-30 V dc
  • Mechanical Shock
    IEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave
  • Max Discrete (Switched) Output (mA)
    150
  • Max Op. Relative Humidity Non-Condensing (%)
    100
  • PROFINET
    No
  • Profibus
    No
  • Wireless
    No

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

QT50UDB Description

Banner Engineering QT50UDB is an ultrasonic distance sensor belonging to the QT50UDB series. It features a time-of-flight system for measuring distances within a range of 20cm to 8m. This sensor is designed with a thermoplastic housing and utilizes a 75kHz transmission frequency. It is equipped with an M30 threaded mount for installation and comes pre-wired with a 6.5ft / 2m cable that terminates with bare end flying leads for connectivity. The QT50UDB operates within an ambient air temperature range of -20 to +70°C and is powered by a supply voltage of 10Vdc to 30Vdc, with 12Vdc and 24Vdc as nominal values. It includes 2 digital outputs (PNP/NPN transistor) and offers protection functions against short-circuits. The sensor's design ensures a degree of protection rated at IP67 NEMA 6P, making it suitable for various industrial applications.

Related documents QT50UDB Specs

QT50UDB 110112.pdf
