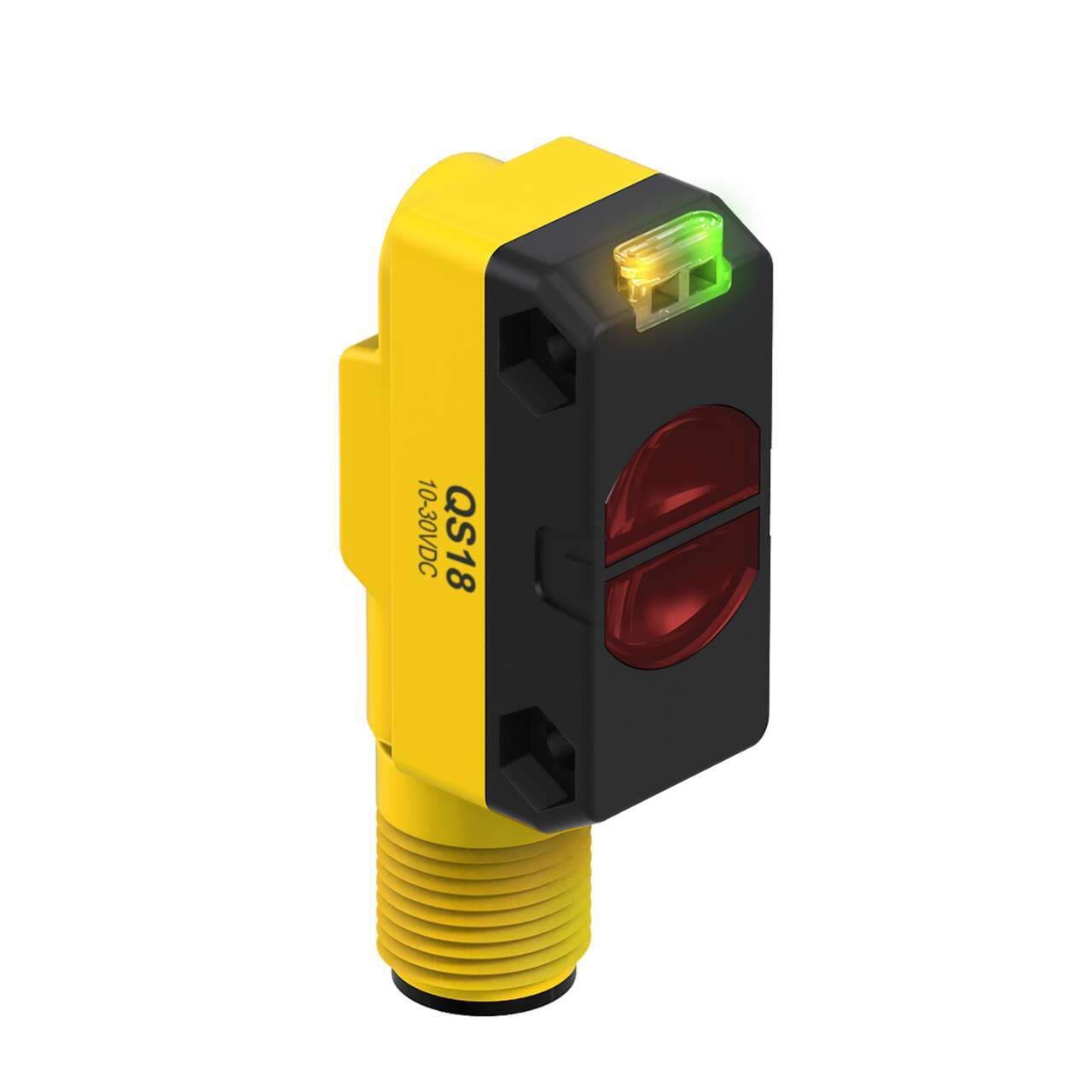

QS18VP6WQ8 Banner Proximity Sensors
Part#:QS18VP6WQ8
Manufacturer:Banner
Alt. Part#:66464
Product Lifecycle:Active
Get a quick Quote!
WORLD-BEAM QS18 Series: Divergent Diffuse; Range: 100 mm; Input: 10-30 V dc; Output: Complementary Solid-State PNP; M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the QS18VP6WQ8 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight45.3592 g
- Country Of OriginMX
- Quick Disconnect Type M12 (Euro)
- Sensing Beam Infrared LED
- Repeatability (µs) 150
- Indicator LEDs
- Barrel Diameter (mm) N/A
- Power DC
- Power Supply/Supply Voltage 10-30 V dc
- Delay at Power-up (ms) 100
- IO Link No
- Sensing Mode (General) Proximity
- Special Feature: Remote Teach No
- Lens Material Acrylic
- Feature: Quick Disconnect Yes
- Input/Output Discrete
- Max Op. Temp. (°C) 70
- IP Rating IP67
- Feature: Hazardous Area No
- Housing Style Rectangular
- Min Op. Temp. (°C) -20
- Number of Pins 4
- Feature: Timing (Hold/Delay) No
- Primary Housing Material ABS
- Connection Integral QD
- NEMA Rating NEMA 6
- Feature: Encapsulated No
- Outputs PNP
- Operation Light/Dark Operate
- Special Feature: Water Detection No
- Feature: Chemical Resistant No
- Max Sensing Distance (mm) 100
- Special Feature: Intrinsically Safe No
- Max Op. Relative Humidity [%] 95% @ 50°C
- Feature: Audible No
- Sensing Mode (Detailed) Divergent
- Output response time (ms) 0.6
- Adjustments N/A
- DeviceNet No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
QS18VP6WQ8 Description
Banner Engineering QS18VP6WQ8 is a photo-electric sensor designed with a divergent diffuse system and operates within an ambient air temperature range of -20 to +70 °C. It features a rectangular shape with a thermoplastic housing and an acrylic lens. This sensor is pre-equipped with a 4-pin Euro-style M12 connector, making it part of the QS18 series. It offers a degree of protection rated at IP67 NEMA 6 and requires a supply voltage of 10Vdc to 30Vdc, with nominal values of 12Vdc and 24Vdc. The QS18VP6WQ8 has a sensing distance of 100mm and utilizes infrared (IR) light. It supports both Light-ON and Dark-ON operating modes and includes 1 x digital output (PNP transistor; complementary NO/NC) with a response time of 0.6ms or 0.0006 seconds.
