QS18VP6FF100Q8 Banner Proximity Sensors
Part#:QS18VP6FF100Q8
Manufacturer:Banner
Alt. Part#:71882
Product Lifecycle:Active
In-stock parts: 23
Jun 30, 2025
WORLD-BEAM QS18 Series: Fixed-Field; Range: 100 mm cutoff; Output: Complementary Solid-State PNP; M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the QS18VP6FF100Q8 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight45.3592 g
- Country Of OriginMX
- Primary Housing Material ABS
- Sensing Beam Wavelength 630
- Max Op. Relative Humidity [%] 95% @ 50°C
- Feature: Chemical Resistant No
- NEMA Rating NEMA 6
- Input/Output Discrete
- Operation Light/Dark Operate
- Feature: Timing (Hold/Delay) No
- Sensing Mode (General) Proximity
- Min Op. Temp. (°C) -20
- Repeatability (µs) 160
- Adjustments N/A
- Small Visible Spot LED
- Connection Integral QD
- Special Feature: Water Detection No
- IP Rating IP67
- Lens Material Acrylic
- Feature: Audible No
- Sensing Beam Visible Red LED
- Power Supply/Supply Voltage 10-30 V dc
- Max Op. Temp. (°C) 70
- Number of Pins 4
- Feature: Encapsulated No
- Feature: Hazardous Area No
- Housing Style Rectangular w/M18 Mount
- Output response time (ms) 0.85
- Opposed Mode Emitter/Receiver N/A
- IO Link No
- Sensing Mode (Detailed) Background Suppression (Fixed)
- Quick Disconnect Type M12 (Euro)
- Special Feature: Remote Teach No
- Indicator LEDs
- Power DC
- Max Sensing Distance (mm) 100
- Special Feature: Intrinsically Safe No
- DeviceNet No
- Outputs PNP
- Delay at Power-up (ms) 100
- Barrel Diameter (mm) 18
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
QS18VP6FF100Q8 Description

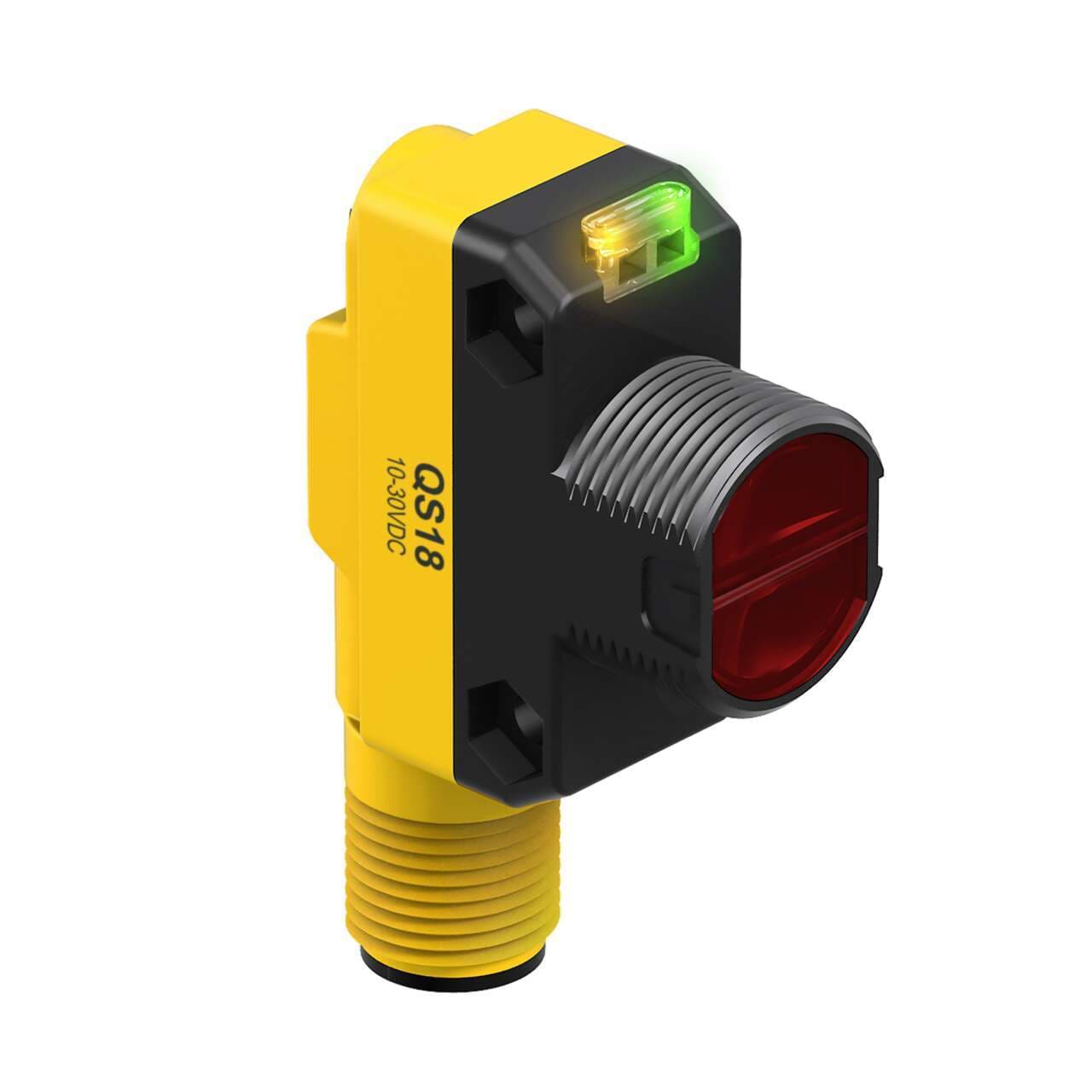

Banner Engineering QS18VP6FF100Q8 is a fixed-field photo-electric sensor designed for versatile applications, featuring an M18 threaded mount for secure installation. This sensor operates within an ambient air temperature range of -20 to +70°C and incorporates a background suppression system to enhance its detection capabilities. It comes pre-equipped with a 4-pin Euro-style M12 connector, ensuring easy and reliable connection. Part of the QS18 series, it offers a degree of protection rated at IP67 NEMA 6, suitable for demanding environments. The sensor operates on a supply voltage range of 10Vdc to 30Vdc, with nominal values of 12Vdc and 24Vdc. Its rectangular shape is constructed from a thermoplastic housing with an acrylic lens, ensuring durability. The QS18VP6FF100Q8 has a sensing distance of 100mm and utilizes visible red light for detection. It supports both Light-ON and Dark-ON operating modes and features a single digital output (PNP transistor; complementary NO/NC) for versatile signaling options.
Related documents QS18VP6FF100Q8 Specs
This item can ship within 24h!
1-year warranty
$112.32
Stock:
23
Select Qty:
$112.32
$112.32 each
By purchasing this item, you agree to the Terms & Conditions
Quotebeam is NOT an authorized distributor of Banner
Shipping and Delivery Worldwide
calculate costs and time
Secure Payment Processing
with money back guarantee
1 year warranty
on all parts
Responsive Customer Support
we're here to help!
Need more details?
Feel free to chat with us or check our FAQ
Banner Disclaimer:
The product is unused surplus. Quotebeam is not an authorized surplus dealer or affiliate for the Manufacturer of this product. Products may feature older date codes or be from an earlier series than what is currently available from the manufacturer or authorized dealers. Because Quotebeam is not an authorized distributor of this product, the Original Manufacturer’s warranty does not apply. While many Banner Controls products will have firmware already installed, Quotebeam makes no representation as to whether a Controls product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. Quotebeam also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Banner, its distributors, or any other source. Quotebeam also makes no representations as to your right to install any such firmware on the product. Quotebeam will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.
