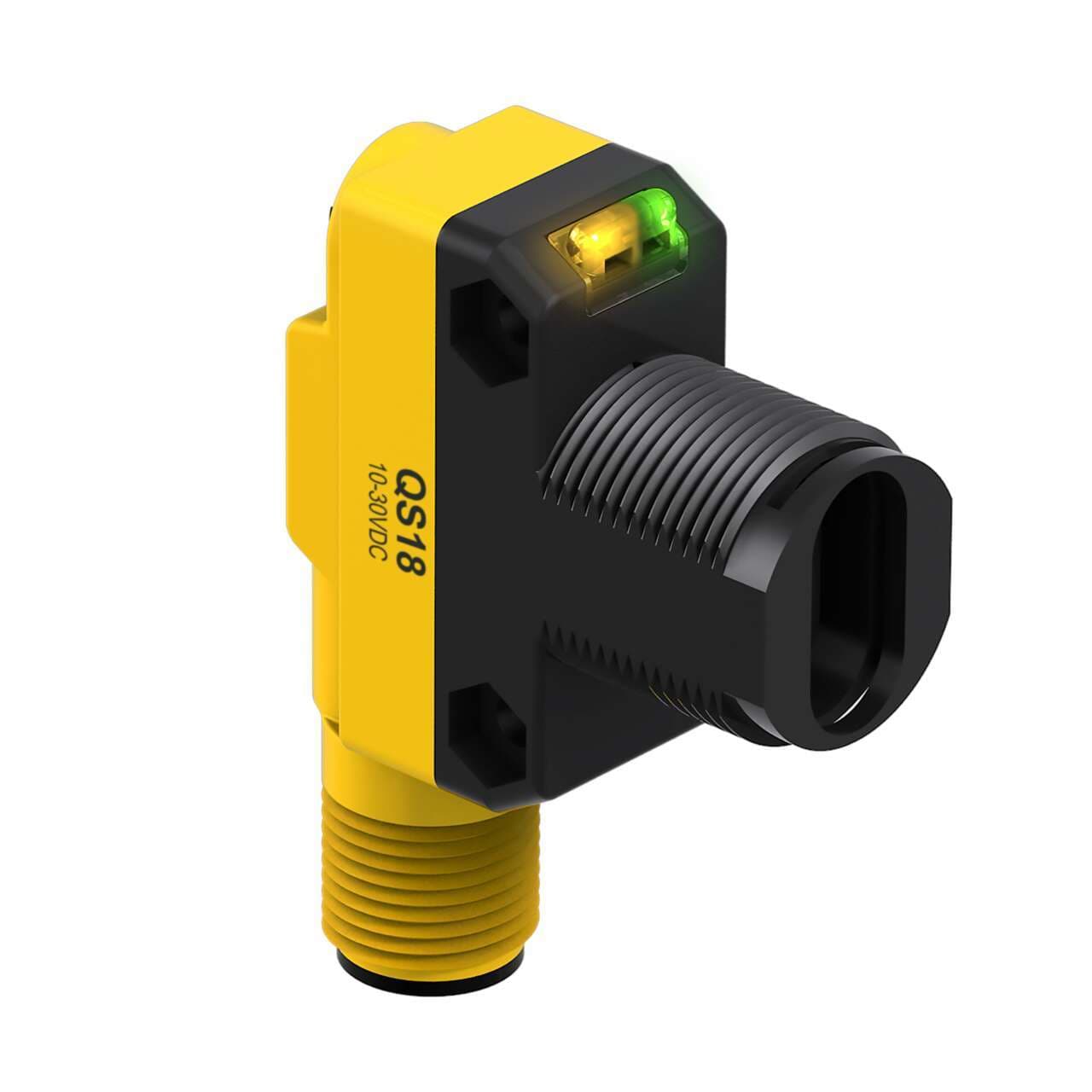

QS18VP6FQ8 Banner Proximity Sensors
Part#:QS18VP6FQ8
Manufacturer:Banner
Alt. Part#:71778
Product Lifecycle:Active
In-stock parts: 3
Jun 19, 2025
WORLD-BEAM QS18Series: Glass Fiber; Range: Depends on Fiber; Input: 10-30 V dc; Output: Complementary Solid-State PNP; M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the QS18VP6FQ8 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight81.64656 g
- Country Of OriginMX
- Connection type Pre-equipped with 4-pin Euro-style M12 connector
- Thread size M18
- Material thermoplastic housing Glass fiber
- Shape Rectangular
- Order code / Manufacturer SKU 71778
- Ambient air temperature for operation -20...+70 °C
- Mounting mode Threaded mount
- Degree of protection IP67 NEMA 6
- Product series / family name WORLD-BEAM series
- Digital outputs 1 x digital output (PNP transistor)
- Primary brand Banner Engineering
- Functions Fiber optic sensor amplifier green LED (power ON) yellow LED (light sensed) potentiometer adjustment
- Main function Amplifier for sensor
- Light Color Infrared (IR)
- Sub-range name QS18 series
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Color LED - Amplifiers Infrared
- IP Rating IP67
- Adjustments Potentiometer
- Feature: Audible No
- Connection Integral QD
- Special Feature: Remote Teach No
- IO Link No
- Input/Output Discrete
- Max Op. Temperature (°C) 70
- Special Feature: Bussable Power No
- Primary Housing Material Thermoplastic
- NEMA Rating NEMA 6
- Indicator Display Type Indicator LEDs
- Quick Disconnect Type M12 (Euro)
- Power Supply/Supply Voltage 10-30 V dc
- Output PNP
- Min Op. Temperature (°C) -20
- Feature: Timing (Hold/Delay) No
- Fiber Type Glass Only
- Repeatability (µs) 150
- Intrinsically Safe No
- Housing Material Thermoplastic
- Output Type (Specific) Single Discrete
- Power DC
- Delay at Power-up (ms) 100
- Housing Style Rectangular w/M18 Mount
- Number of Pins 4
- Minimum response time (ms) .6
- Max Op. Relative Humidity (%) 95% @ 50°C
- Feature: Hazardous Area No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
QS18VP6FQ8 Description
Banner Engineering QS18VP6FQ8 is an amplifier for sensors, specifically designed for fiberoptic sensor amplification. It features an M18 threaded mount for secure installation and operates within an ambient air temperature range of -20 to +70°C. The design includes a potentiometer for adjustment, which varies based on the sensing mode and the fiber optics utilized. This part is pre-equipped with a 4-pin Euro-style M12 connector for straightforward connectivity. It belongs to the QS18 series and offers a degree of protection rated at IP67 NEMA 6, ensuring durability against dust and water ingress. The supply voltage requirement is between 10Vdc and 30Vdc, with nominal values at 12Vdc and 24Vdc. The QS18VP6FQ8 has a rectangular shape and is constructed from a thermoplastic housing with glass fiber, designed to emit infrared (IR) light. It features 1 x digital output (PNP transistor; complementary NO/NC) and boasts a rapid response time of 0.6ms or 0.0006 seconds.
