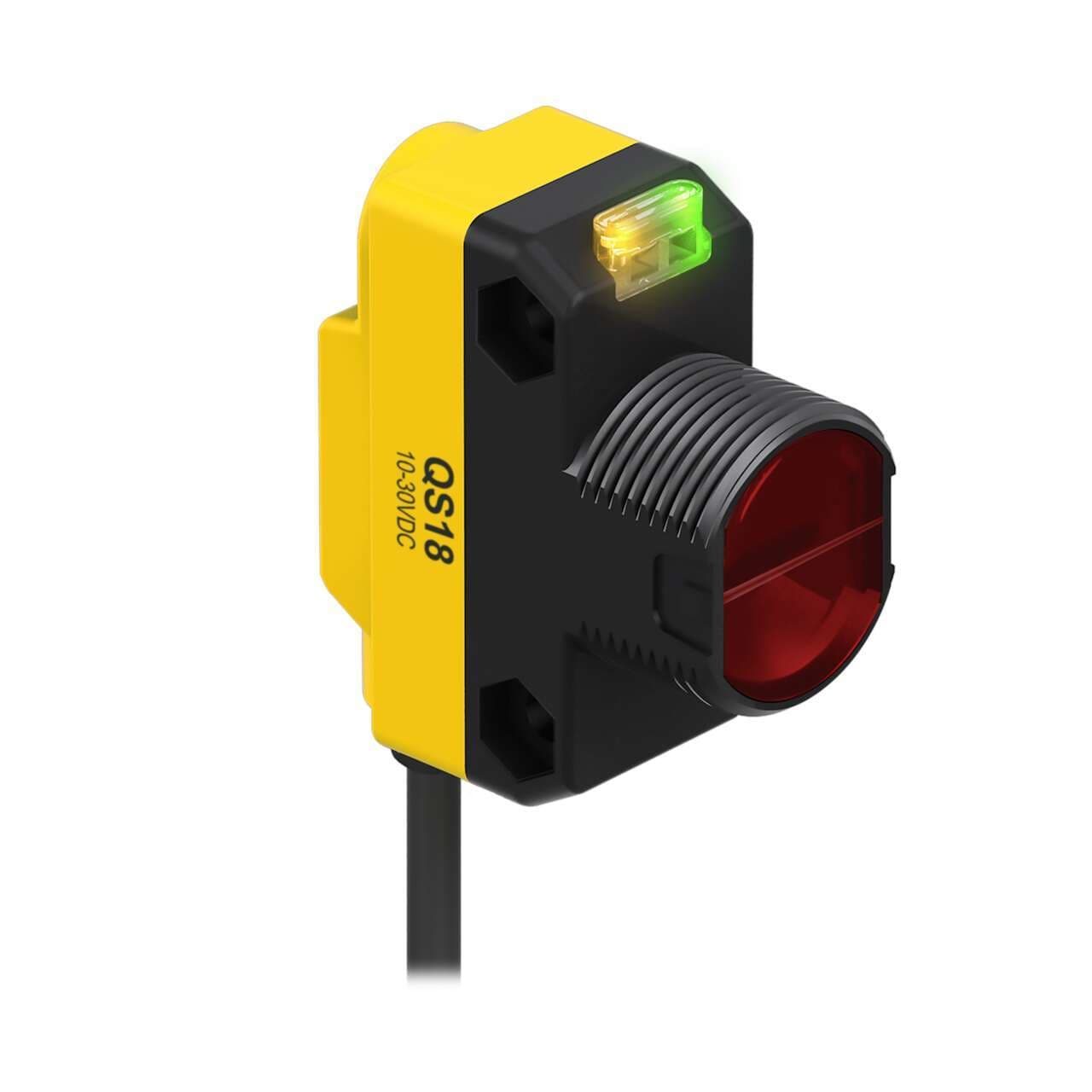

QS18VP6LLPQ5 Banner Proximity Sensors
Part#:QS18VP6LLPQ5
Manufacturer:Banner
Alt. Part#:73244
Product Lifecycle:Active
In-stock parts: 76
Jun 19, 2025
WORLD-BEAM QS18 LASER POLAR RETRO; Range: 0.1-10 m; Input: 10-30 V dc; Output: Complementary Solid-State PNP; 150 mm M12 Pigtail QD
About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the QS18VP6LLPQ5 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight45.3592 g
- Country Of OriginMX
- Main function Sensor (Photo-electric)
- Functions Miniature polarized Class 1 Laser photo-electric sensor green LED (power ON) yellow LED (light sensed) potentiometer adjustment
- Operating mode Light-ON Dark-ON
- Material thermoplastic housing Acrylic lns.
- Sub-range name QS18LLP series
- Sensing distance 10cm...10m
- Connection type Pre-wired with 6" / 150mm pigtail terminated with 4-pin Euro-style M12 connector
- Ambient air temperature for operation -10...+50 °C
- Product series / family name WORLD-BEAM series
- Light Color Visible red
- Shape Rectangular
- Digital outputs 1 x digital output (PNP transistor)
- Compliant with standard(s) cURus CE
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Wavelength 650 nm
- Mounting mode Threaded mount
- Primary brand Banner Engineering
- Design retro-reflective mode
- Thread size M18
- Degree of protection IP67 NEMA 6
- Order code / Manufacturer SKU 73244
- Input/Output Discrete
- Min Op. Temp. (°C) -10
- NEMA Rating NEMA 6
- Feature: Chemical Resistant No
- Sensing Mode (General) Retroreflective
- Power DC
- Output response time (ms) 0.7
- Operation Light/Dark Operate
- IP Rating IP67
- Housing Style Rectangular w/M18 Mount
- Small Visible Spot Laser
- Power Supply/Supply Voltage 10-30 V dc
- Indicator LEDs
- Sensing Beam Visible Red Laser
- Quick Disconnect Type M12 (Euro)
- Delay at Power-up (ms) 200
- Opposed Mode Emitter/Receiver N/A
- Laser Classification Class 1
- Max Sensing Distance (mm) 10000
- Sensing Beam Wavelength 650
- Barrel Diameter (mm) 18
- DeviceNet No
- Connection Pigtail QD
- Special Feature: Water Detection No
- Number of Pins 4
- Feature: Audible No
- Sensing Mode (Detailed) Polarized
- Primary Housing Material ABS
- Outputs PNP
- Special Feature: Intrinsically Safe No
- Adjustments Potentiometer
- Feature: Encapsulated No
- Feature: Hazardous Area No
- Repeatability (µs) 130
- Lens Material Acrylic
- Max Op. Relative Humidity [%] 95% @ 50°C
- Feature: Timing (Hold/Delay) No
- Max Op. Temp. (°C) 50
- Special Feature: Remote Teach No
- IO Link No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
QS18VP6LLPQ5 Description
Banner Engineering QS18VP6LLPQ5 is a miniature polarized Class 1 laser photo-electric sensor designed for retro-reflective mode with potentiometer adjustment. It features an M18 threaded mount for secure installation and operates within an ambient air temperature range of -10 to +50 °C. This sensor is equipped with a pre-wired 6" / 150mm pigtail terminated with a 4-pin Euro-style M12 connector, falling under the QS18LLP series. It boasts a degree of protection rated at IP67 NEMA 6, ensuring durability in various environments. The QS18VP6LLPQ5 operates on a supply voltage of 10Vdc-30Vdc, with 12Vdc / 24Vdc nominal, and is housed in a rectangular, thermoplastic body with an acrylic lens. It offers a sensing distance of 10cm to 10m and emits a visible red light at a wavelength of 650 nm. This sensor supports Light-ON and Dark-ON operating modes and includes 1 x digital output (PNP transistor; complementary NO/NC) for versatile application use.
Related documents QS18VP6LLPQ5 Specs
This item can ship within 24h!
1-year warranty
$212.76
Stock:
76
Select Qty:
$212.76
$212.76 each
By purchasing this item, you agree to the Terms & Conditions
Quotebeam is NOT an authorized distributor of Banner
Shipping and Delivery Worldwide
calculate costs and time
Secure Payment Processing
with money back guarantee
1 year warranty
on all parts
Responsive Customer Support
we're here to help!
Need more details?
Feel free to chat with us or check our FAQ
Banner Disclaimer:
The product is unused surplus. Quotebeam is not an authorized surplus dealer or affiliate for the Manufacturer of this product. Products may feature older date codes or be from an earlier series than what is currently available from the manufacturer or authorized dealers. Because Quotebeam is not an authorized distributor of this product, the Original Manufacturer’s warranty does not apply. While many Banner Controls products will have firmware already installed, Quotebeam makes no representation as to whether a Controls product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. Quotebeam also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Banner, its distributors, or any other source. Quotebeam also makes no representations as to your right to install any such firmware on the product. Quotebeam will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.
