QS18VP6DQ5 Banner Proximity Sensors
Part#:QS18VP6DQ5
Manufacturer:Banner
Alt. Part#:63189
Product Lifecycle:Active
Get a quick Quote!
WORLD-BEAM QS18 Series: Diffuse; Range: 450 mm; Input: 10-30 V dc; Output: Complementary Solid-State PNP; 150 mm (6 in) M12 Pigtail QD
About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the QS18VP6DQ5 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight63.50288 g
- Country Of OriginMX
- Product series / family name WORLD-BEAM series
- Design diffuse mode
- Primary brand Banner Engineering
- Sensing distance 450mm
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Shape Rectangular
- Degree of protection IP67 NEMA 6
- Ambient air temperature for operation -20...+70 °C
- Sub-range name QS18 series
- Functions Photo-electric sensor green LED (power ON) yellow LED (light sensed) potentiometer adjustment
- Digital outputs 1 x digital output (PNP transistor)
- Order code / Manufacturer SKU 63189
- Main function Sensor (Photo-electric)
- Light Color Infrared (IR)
- Operating mode Light-ON Dark-ON
- Compliant with standard(s) cURus CE
- Thread size M18
- Mounting mode Threaded mount
- Material thermoplastic housing Acrylic lns.
- Connection type Pre-wired with 6" / 150mm pigtail terminated with 4-pin Euro-style M12 connector
- Min Op. Temp. (°C) -20
- Delay at Power-up (ms) 100
- Lens Material Acrylic
- IO Link No
- Power DC
- Max Sensing Distance (mm) 450
- Operation Light/Dark Operate
- NEMA Rating NEMA 6
- Feature: Hazardous Area No
- Primary Housing Material ABS
- Special Feature: Remote Teach No
- Max Op. Relative Humidity [%] 95% @ 50°C
- DeviceNet No
- Feature: Chemical Resistant No
- Input/Output Discrete
- Special Feature: Intrinsically Safe No
- Barrel Diameter (mm) 18
- Outputs PNP
- Output response time (ms) 0.6
- Adjustments Potentiometer
- Feature: Audible No
- Sensing Mode (General) Proximity
- Quick Disconnect Type M12 (Euro)
- Special Feature: Water Detection No
- Feature: Timing (Hold/Delay) No
- Power Supply/Supply Voltage 10-30 V dc
- Sensing Beam Infrared LED
- IP Rating IP67
- Opposed Mode Emitter/Receiver N/A
- Housing Style Rectangular w/M18 Mount
- Max Op. Temp. (°C) 70
- Number of Pins 4
- Feature: Encapsulated No
- Sensing Mode (Detailed) Diffuse
- Connection Pigtail QD
- Repeatability (µs) 150
- Indicator LEDs
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
QS18VP6DQ5 Description

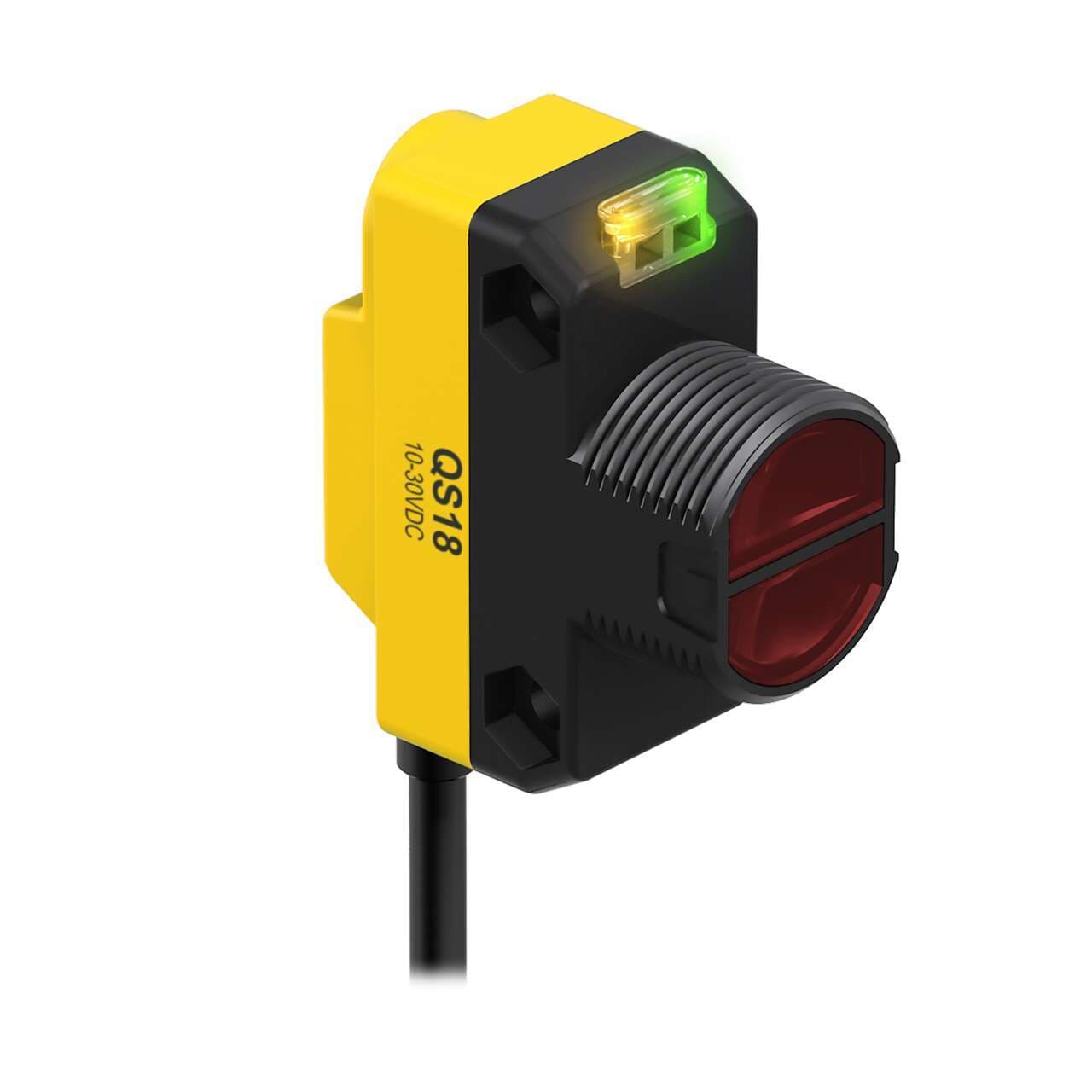

Banner Engineering QS18VP6DQ5 is a photo-electric sensor designed for versatile applications, featuring an M18 threaded mount for secure installation. It operates within an ambient air temperature range of -20 to +70°C and is equipped with a diffuse mode potentiometer adjustment for fine-tuning. The sensor is pre-wired with a 6" / 150mm pigtail that terminates with a 4-pin Euro-style M12 connector, ensuring easy and reliable connection. Part of the QS18 series, it boasts an IP67 NEMA 6 degree of protection, making it suitable for challenging environments. The sensor requires a supply voltage of 10Vdc-30Vdc, with 12Vdc / 24Vdc nominal, and is housed in a durable thermoplastic with an acrylic lens. It offers a sensing distance of up to 450mm and utilizes infrared (IR) light for detection. The operating modes include Light-ON and Dark-ON, complemented by a digital output (PNP transistor; complementary NO/NC) for versatile signaling options.
Related documents QS18VP6DQ5 Specs
