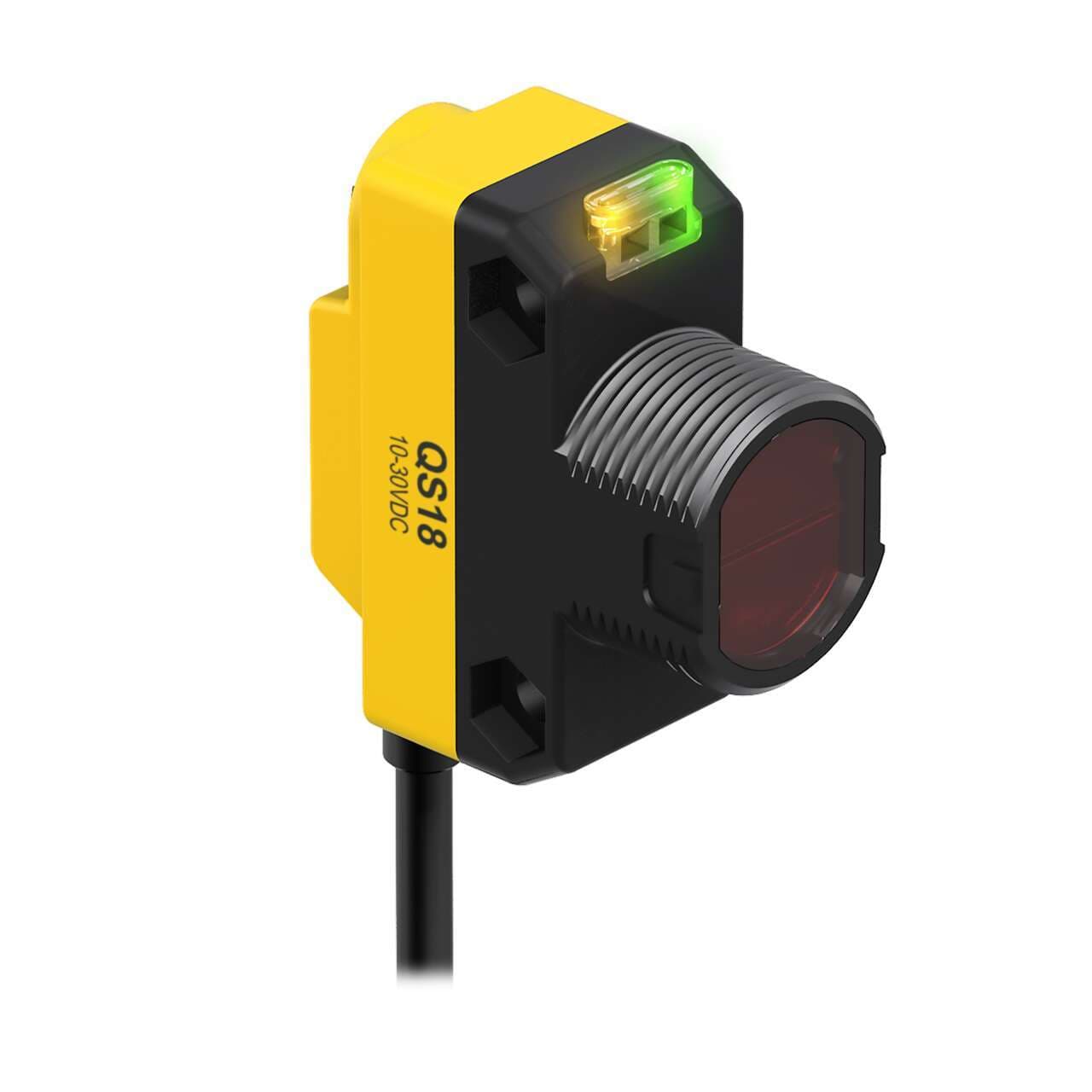

QS18VP6LPQ Banner Proximity Sensors
Part#:QS18VP6LPQ
Manufacturer:Banner
Alt. Part#:61631
Product Lifecycle:Active
In-stock parts: 63
Jun 19, 2025
WORLD-BEAM: Polarized Retro; Range: 3.5 m; Input: 10-30 V dc; Output: Complementary PNP; 150 mm (6 in) M8 Pigtail QD
About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the QS18VP6LPQ Banner price in the box on the right side or send a quick quote.
Product Details
- Weight54.43104 g
- Country Of OriginCN
- Primary brand Banner Engineering
- Sensing distance 3.5m
- Sub-range name QS18 series
- Connection type Pre-wired with 6" / 150mm pigtail terminated with 4-pin Pico-style M8 connector
- Ambient air temperature for operation -20...+70 °C
- Product series / family name WORLD-BEAM series
- Design retro-reflective mode
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Thread size M18
- Response time 0.6ms / 0.0006 s
- Main function Sensor (Photo-electric)
- Shape Rectangular
- Digital outputs 1 x digital output (PNP transistor)
- Order code / Manufacturer SKU 61631
- Functions Polarized photo-electric sensor green LED (power ON) yellow LED (light sensed) potentiometer adjustment
- Operating mode Light-ON Dark-ON
- Material thermoplastic housing Acrylic lns.
- Compliant with standard(s) cURus CE
- Light Color Visible red
- Mounting mode Threaded mount
- Degree of protection IP67 NEMA 6
- Sensing Beam Visible Red LED
- Output response time (ms) 0.6
- Number of Pins 4
- Indicator LEDs
- Outputs PNP
- Min Op. Temp. (°C) -20
- Repeatability (µs) 150
- Opposed Mode Emitter/Receiver N/A
- IO Link No
- Max Sensing Distance (mm) 3500
- Power Supply/Supply Voltage 10-30 V dc
- Special Feature: Water Detection No
- Adjustments Potentiometer
- DeviceNet No
- Sensing Mode (Detailed) Polarized
- Connection Pigtail QD
- Delay at Power-up (ms) 100
- Barrel Diameter (mm) 18
- Sensing Mode (General) Retroreflective
- Operation Light/Dark Operate
- NEMA Rating NEMA 6
- Feature: Hazardous Area No
- Housing Style Rectangular w/M18 Mount
- Max Op. Temp. (°C) 70
- Max Op. Relative Humidity [%] 95% @ 50°C
- Feature: Audible No
- Primary Housing Material ABS
- Special Feature: Intrinsically Safe No
- IP Rating IP67
- Feature: Encapsulated No
- Quick Disconnect Type M8 (Pico)
- Power DC
- Sensing Beam Wavelength 630
- Feature: Timing (Hold/Delay) No
- Input/Output Discrete
- Special Feature: Remote Teach No
- Lens Material Acrylic
- Feature: Chemical Resistant No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
QS18VP6LPQ Description
Banner Engineering QS18VP6LPQ is a polarized photo-electric sensor designed for versatile applications, featuring an M18 threaded mount for easy installation. It operates within an ambient air temperature range of -20 to +70°C and is built in a rectangular shape with a thermoplastic housing and acrylic lens for durability. This sensor is part of the QS18 series and offers a retro-reflective mode with potentiometer adjustment for precise sensing. It comes pre-wired with a 6" / 150mm pigtail terminated with a 4-pin Pico-style M8 connector, ensuring a secure connection. The QS18VP6LPQ is equipped with a visible red light for sensing, with a maximum sensing distance of 3.5m. It supports both Light-ON and Dark-ON operating modes and includes a single digital output (PNP transistor; complementary NO/NC) for flexible control. The sensor's quick response time of 0.6ms / 0.0006 s allows for efficient operation, and it is protected against ingress with an IP67 NEMA 6 rating. It requires a supply voltage of 10Vdc-30Vdc (12Vdc / 24Vdc nom.) to function effectively.
