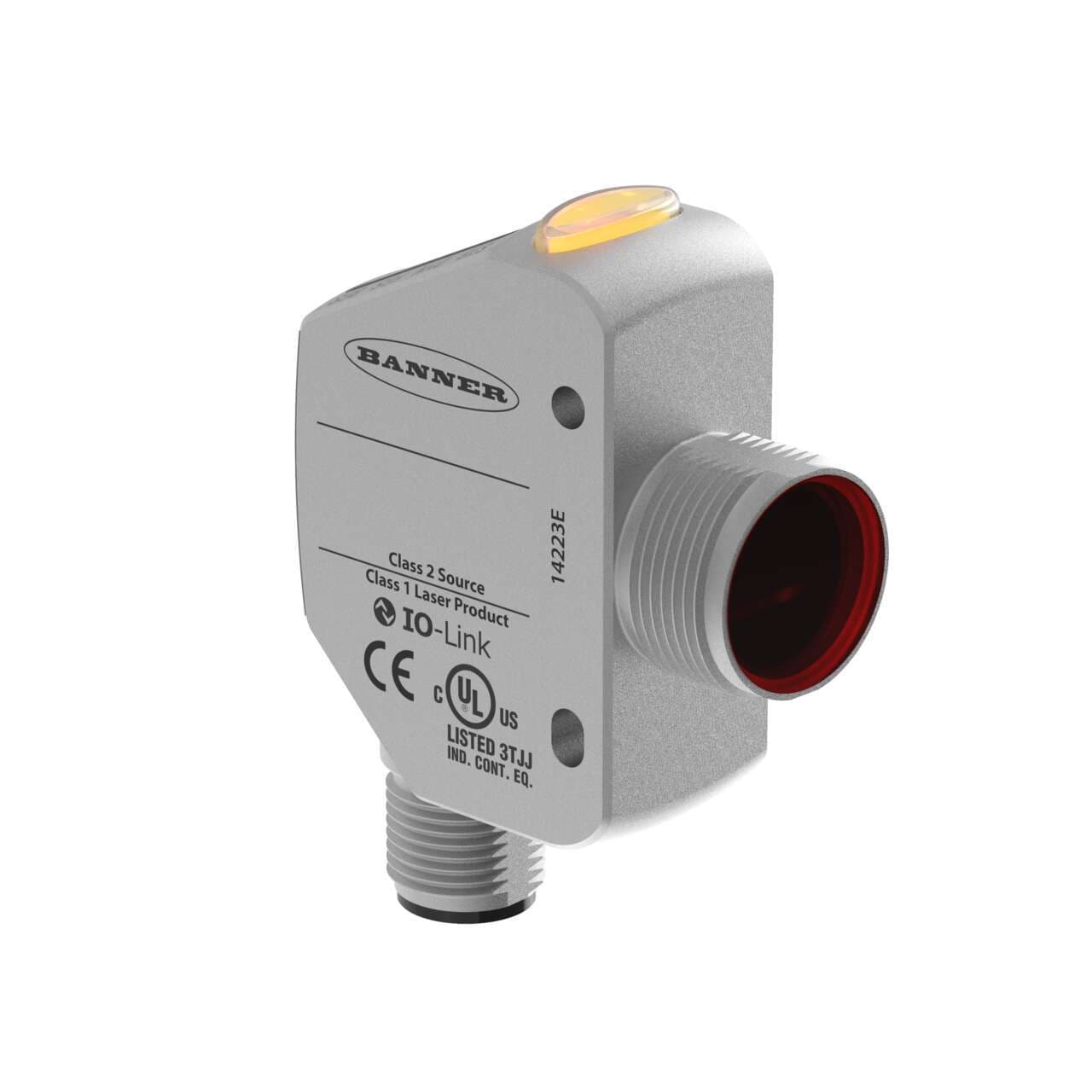

Q4XTKLAF600-Q8 Banner Transformers
Part#:Q4XTKLAF600-Q8
Manufacturer:Banner
Alt. Part#:801918
Product Lifecycle:Active
Get a quick Quote!
Q4X Series: Laser Adjustable Field; Range 600 mm; Input: 10-30 V dc; Output: 1 PNP/NPN with IO-Link Communication; 1 PNP; 4-pin M12 Integral QD; Threaded Barrel Housing
About the manufacturer: Banner is one of the manufacturers that offers Transformers that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the Q4XTKLAF600-Q8 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight158.7572 g
- Country Of OriginUS
- Communication protocol IO-Link
- Order code / Manufacturer SKU 801918
- Product series / family name Q series
- Functions Class 1 Laser adjustable-field photo-electric sensor TEACH mode
- Design background / foreground suppression system dual discrete output and IO Link
- Primary brand Banner Engineering
- Display LED 4 digits display
- Wavelength 655 nm
- Sub-range name Q4X
- Light Color Visible class 1 red Laser
- Sensing distance 25...600mm
- Digital outputs 1 x digital output (PNP/NPN transistor) (with IO-Link Communication) 1 x digital output (PNP transistor)
- Compliant with standard(s) CE
- Main function Sensor (Photo-electric)
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Shape Rectangular
- Connection type Pre-equipped with 5-pin Euro-style M12 connector
- Material Stainless steel housing Acrylic LED window
- Equivalent to Q4XTKLAF600Q8
- Thread size M18
- Degree of protection IP67 IP68 IP69K
- Protection functions Overload Short-circuit
- Mounting mode Threaded mount
- Ambient air temperature for operation -10...+50 °C
- Chemical resistance chemical-resistant
- Power DC
- Input/Output Discrete
- Delay at Power-up (ms) 1500
- Discrete (Switched) Outputs 1 NPN/PNP Configurable; 1 PNP
- Warm-up Time (minutes) 10
- Laser Control Yes
- Feature: Chemical Resistant Yes
- Sensing Mode (General) Proximity
- Max Sensing Distance (mm) 600
- Adjustments Push Button; Remote Teach
- Output Protection Protected against continuous overload and short circuit
- Minimum Window Size (mm) 0.4
- Feature: Clear Object Detection Yes
- PFM Output Yes
- Minimum Sensing Distance (mm) 25
- Output Saturation Voltage PNP Outputs <2 V
- IP Rating IP67; IP68; IP69
- Feature: Remote Teach Yes
- Feature: Timing (Hold/Delay) Yes
- Profibus No
- Sensing Mode (Detailed) Background/Foreground Suppression
- Indicator Display; LED(s)
- Vibration MIL-STD-202G req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
- Max Operating Temperature (°C) 50
- Barrel Diameter (mm) 18
- Max Measurement Range >500 mm - <=1000 mm
- Primary Housing Material Stainless Steel
- Power Supply 10-30 V dc
- Window Material Acrylic
- Min Operating Temperature (°C) -10
- RS-232 No
- Device Type Sensor
- Analog Resolution/Discrete Repeatability 25 mm to 100 mm: +/-0.5; 100 mm to 600 mm: +/- 0.5% of range
- Temperature Effect (mm/°C) +/- 0.05 mm/°C from 25 to 125 mm, +/- 0.35 mm/°C at 300 mm, +/- 0.85 mm/°C at 600 mm
- Discrete Output Hysteresis (mm) Automatically adjusted
- Minimum Response Time (ms) 2
- Sensing Beam Visible Red Laser
- Laser Classification Class 1
- Sensing Beam Wavelength (nm) 655
- Number of Pins 4
- Spot Size (@ Reference Distance) 1.9 mm x 1.0 mm @ 600 mm
- Power/Current Consumption (exclusive of load) < 700 mW
- Wireless No
- PC Configurable No
- Quick Disconnect Type M12 (Euro)
- Max Discrete (Switched) Output (mA) 100
- Storage Temperature (°C) -25 to 75
- Feature: Washdown Rated Yes
- SSI No
- 1-wire Serial Interface No
- Housing Style Rectangular w/M18 Mount
- Connection Integral QD
- Mechanical Shock MIL-STD-202G, Meth. 213B, Cond. I (100G 6x along X, Y & Z axes, 18 total shocks) w/ sensor operating
- Max Op. Relative Humidity Non-Condensing (%) 95 at 55°C
- Max Off-state Leakage Current (µA) PNP: <50 @ 30 V dc; Push/Pull: N/A
- Alarm Output (mA) 100
- PROFINET No
- IO Link Yes
- Max Ambient Light (Lux) 5000
- Feature: Ecolab Certified Yes
- Supply Protection Circuitry Protected against reverse polarity and transient overvoltages
- RS-422 No
- RS-485 No
- Common Ethernet Protocol No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Q4XTKLAF600-Q8 Description
Banner Engineering Q4XTKLAF600-Q8 is a Class 1 laser adjustable-field photo-electric sensor designed for precise detection tasks. It features an M18 threaded mount for secure installation and operates within an ambient air temperature range of -10 to +50 °C. This sensor is equipped with a background/foreground suppression system, dual discrete output, and IO Link TEACH mode for enhanced functionality. It comes pre-equipped with a 5-pin Euro-style M12 connector for easy connection. Part of the Q4X series, it offers a high degree of protection rated at IP67, IP68, and IP69K, making it suitable for use in environments where chemical resistance is required. The sensor operates on a supply voltage of 10Vdc to 30Vdc, with 12Vdc and 24Vdc as nominal values. Its rectangular shape is constructed from stainless steel housing and an acrylic LED window for durability. Communication is facilitated via IO-Link protocol. The sensing distance ranges from 25 to 600mm, utilizing a visible class 1 red laser with a wavelength of 655 nm. It features 1 x digital output (PNP/NPN transistor / IO-Link) and 1 x digital output (PNP transistor), with built-in protection functions against overload and short-circuit conditions.
