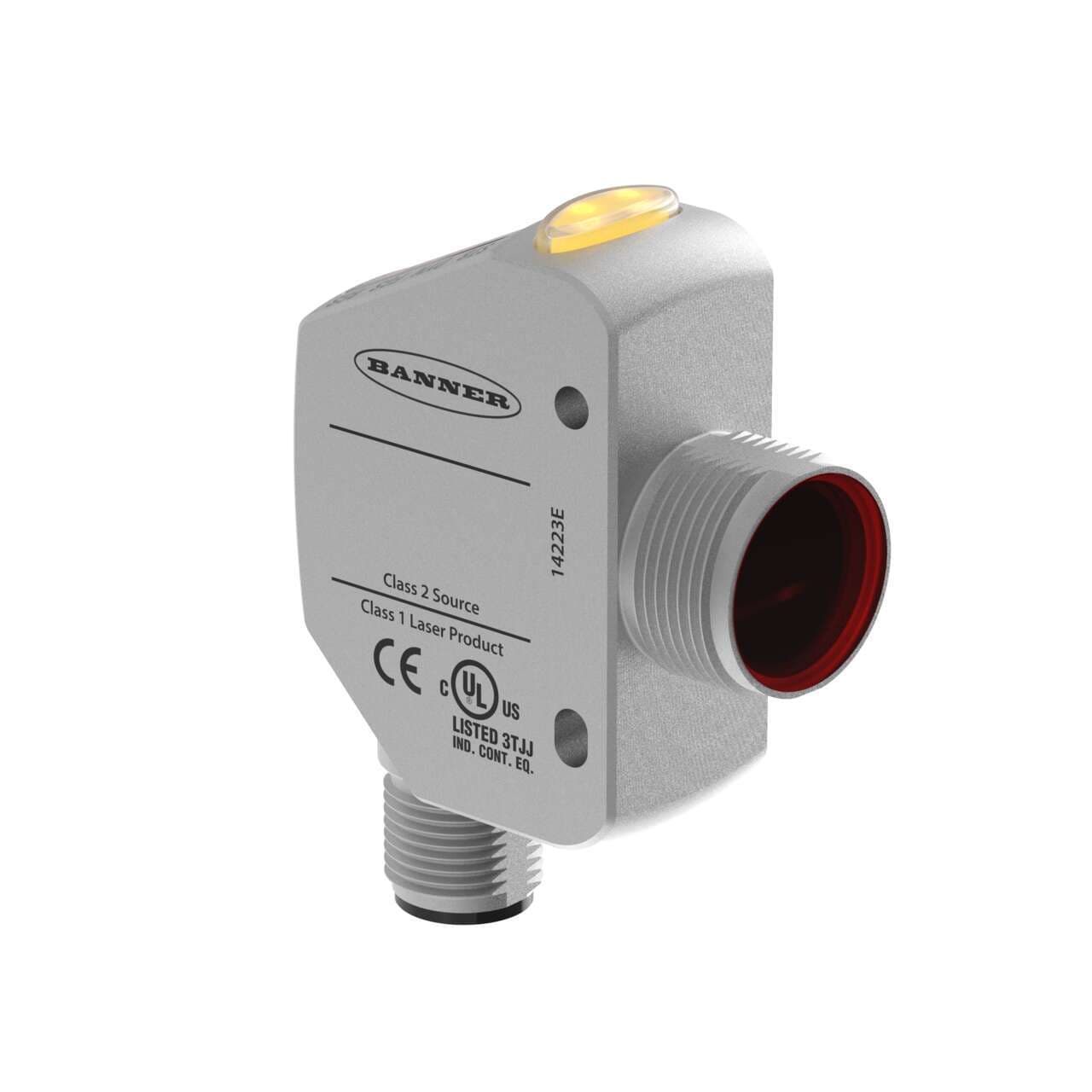

Q4XTULAF600-Q8 Banner Proximity Sensors
Part#:Q4XTULAF600-Q8
Manufacturer:Banner
Alt. Part#:809949
Product Lifecycle:Active
Get a quick Quote!
Q4X Series: Laser Adjustable Field; Range: 600 mm; Input 12-30 V dc; Output: Analog: 0-10 V; 5-pin M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the Q4XTULAF600-Q8 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight142.88148 g
- Country Of OriginUS
- Min Operating Temperature (°C) -10
- Minimum Window Size (mm) 2
- IO Link No
- Sensing Mode (Detailed) Background/Foreground Suppression
- Indicator Display; LED(s)
- Sensing Beam Wavelength (nm) 655
- Max Operating Temperature (°C) 50
- Laser Control Yes
- 1-wire Serial Interface No
- Housing Style Rectangular w/M18 Mount
- Max Sensing Distance (mm) 600
- Vibration MIL-STD-202G req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
- Window Material Acrylic
- Max Ambient Light (Lux) 5000
- SSI No
- PC Configurable No
- Primary Housing Material Stainless Steel
- Minimum Sensing Distance (mm) 25
- Analog Voltage Output Rating 2.5 kΩ min. load impedance
- Max Measurement Range >500 mm - <=1000 mm
- Power Supply 12-30 V dc
- Analog Resolution/Discrete Repeatability 25 mm to 100 mm: +/- 0.5 mm, 100 mm to 600 mm: +/- 0.5%
- Mechanical Shock MIL-STD-202G, Meth. 213B, Cond. I (100G 6x along X, Y & Z axes, 18 total shocks) w/ sensor operating
- Minimum Response Time (ms) 0.5
- Feature: Chemical Resistant Yes
- Sensing Beam Visible Red Laser
- Analog Output Configuration 0-10 V dc
- Number of Pins 5
- Max Op. Relative Humidity Non-Condensing (%) 95 at 55°C
- Power/Current Consumption (exclusive of load) < 700mW
- Profibus No
- Power DC
- Connection Integral QD
- Adjustments Push Button; Remote Teach
- Output Protection Protected against continuous overload and short circuit
- Warm-up Time (minutes) 10
- Feature: Timing (Hold/Delay) No
- RS-232 No
- Laser Classification Class 1
- Quick Disconnect Type M12 (Euro)
- Temperature Effect (mm/°C) 1 mm/°C
- Storage Temperature (°C) -25 to 75
- Barrel Diameter (mm) 18
- RS-485 No
- Sensing Mode (General) Proximity
- Delay at Power-up (ms) 750
- Input/Output Analog
- IP Rating IP67; IP68; IP69
- Spot Size (@ Reference Distance) 1.9 mm x 1.0 mm @ 600 mm
- Feature: Washdown Rated Yes
- RS-422 No
- Analog Linearity (mm) +/- 0.75 mm from 25 to 50 mm, 9.0 mm at 300 mm, 28 mm at 600 mm
- Supply Protection Circuitry Protected against reverse polarity and transient overvoltages
- Feature: Remote Teach Yes
- Wireless No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Q4XTULAF600-Q8 Description
Banner Engineering Q4XTULAF600-Q8 is a Class 1 laser adjustable-field photo-electric sensor/transmitter designed for precise sensing tasks. It features an M18 threaded mount for secure installation and operates within an ambient air temperature range of -10 to +50 °C. This sensor is equipped with a background/foreground suppression system that can be adjusted via TEACH mode, ensuring accurate detection by ignoring irrelevant background objects. It connects through a pre-equipped 5-pin Euro-style M12 connector, fitting seamlessly into various industrial setups. Part of the Q4X series, it boasts a high degree of protection with ratings of IP67, IP68, and IP69K, making it suitable for harsh environments. The sensor's chemical-resistant, stainless steel housing and acrylic LED window enhance its durability. It operates on a supply voltage of 12Vdc to 30Vdc, with 24Vdc nominal, and offers a sensing distance range of 25 to 600mm. The visible class 1 red laser, with a wavelength of 655 nm, ensures precise targeting, while its protection functions guard against overload and short-circuit scenarios. Additionally, it features 1 x analog output (0-10Vdc) for versatile connectivity options.
