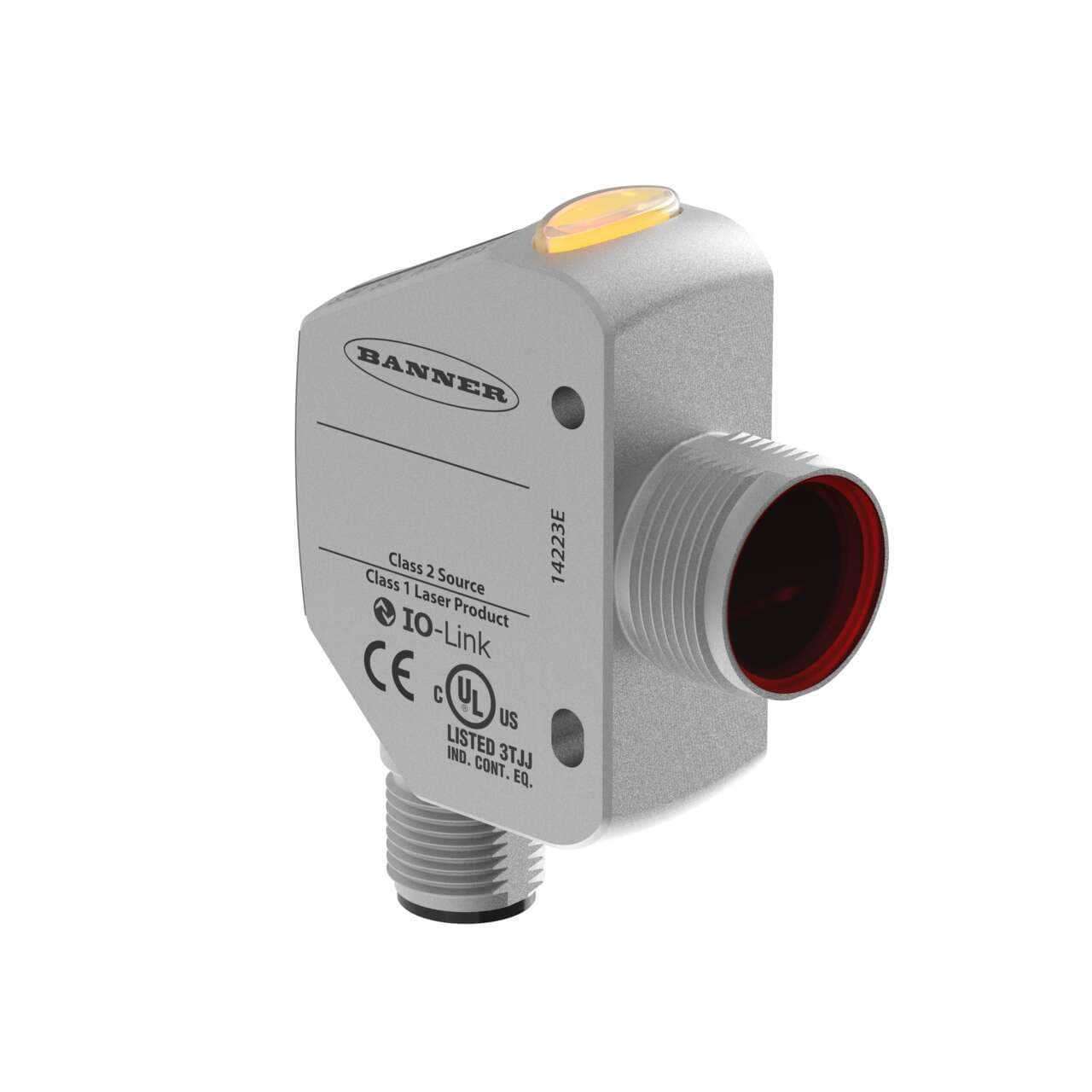

Q4XTKLAF300-Q8 Banner Proximity Sensors

Product Details

• Weight90.7184 g
• Country Of OriginUS
• Main function
  Sensor (Photo-electric)
• Shape
  Rectangular
• Product series / family name
  Q series
• Design
  background / foreground suppression system dual discrete output and IO Link
• Thread size
  M18
• Digital outputs
  1 x digital output (PNP/NPN transistor) (with IO-Link Communication) 1 x digital output (PNP transistor)
• Chemical resistance
  chemical-resistant
• Supply voltage (DC)
  10Vdc-30Vdc (12Vdc / 24Vdc nom.)
• Sensing distance
  25...300mm
• Connection type
  Pre-equipped with 4-pin Euro-style M12 connector
• Ambient air temperature for operation
  -10...+50 °C
• Protection functions
  Overload Short-circuit
• Primary brand
  Banner Engineering
• Display
  LED 4 digits display
• Light Color
  Visible class 1 red Laser
• Degree of protection
  IP67 IP68 IP69K
• Compliant with standard(s)
  CE
• Sub-range name
  Q4X
Functions
Class 1 Laser adjustable-field photo-electric sensor TEACH mode
Wavelength
655 nm
Mounting mode
Threaded mount
Communication protocol
IO-Link
Material
Stainless steel housing Acrylic LED window
Equivalent to
Q4XTKLAF300Q8
Order code / Manufacturer SKU
95301
Device Type
Sensor
Analog Resolution/Discrete Repeatability
25 mm to 50 mm: +/-0.5; 50 mm to 300 mm: +/- 1% of range
Output Saturation Voltage PNP Outputs
<2 V
Max Measurement Range
>100 mm - <=500 mm
Indicator
Display; LED(s)
Minimum Sensing Distance (mm)
25
Mechanical Shock
MIL-STD-202G, Meth. 213B, Cond. I (100G 6x along X, Y & Z axes, 18 total shocks) w/ sensor operating
Window Material
Acrylic
Alarm Output (mA)
100
Common Ethernet Protocol
No
1-wire Serial Interface
No
Sensing Mode (Detailed)
Background/Foreground Suppression
Connection
Integral QD
Sensing Beam Wavelength (nm)
655
Max Discrete (Switched) Output (mA)
100
Minimum Response Time (ms)
1.5
Max Ambient Light (Lux)
5000
IO Link
Yes
PFM Output
Yes
Delay at Power-up (ms)
750
Output Protection
Protected against continuous overload and short circuit
Spot Size (@ Reference Distance)
2.0 mm x 0.8 mm @ 300 mm
Feature: Remote Teach
Yes
RS-232
No
Housing Style
Rectangular w/M18 Mount
Input/Output
Discrete
Number of Pins
4
IP Rating
IP67; IP68; IP69
Discrete Output Hysteresis (mm)
Automatically adjusted
Feature: Washdown Rated
Yes
RS-422
No
Sensing Beam
Visible Red Laser
Primary Housing Material
Stainless Steel
Max Sensing Distance (mm)
300
Vibration
MIL-STD-202G req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
Max Op. Relative Humidity Non-Condensing (%)
95 at 55°C
Feature: Ecolab Certified
Yes
PC Configurable
No
Temperature Effect (mm/°C)
+/- 0.05 mm/°C from 25 to 125 mm, +/- 0.35 mm/°C at 300 mm
Min Operating Temperature (°C)
-10
Laser Control
Yes
Feature: Timing (Hold/Delay)
Yes
Wireless
No
Feature: Chemical Resistant
Yes
Power
DC
Laser Classification
Class 1
Power Supply
10-30 V dc
Discrete (Switched) Outputs
1 NPN/PNP Configurable; 1 PNP
Minimum Window Size (mm)
0.4
Power/Current Consumption (exclusive of load)
< 700 mW
PROFINET
No
Sensing Mode (General)
Proximity
Quick Disconnect Type
M12 (Euro)
Adjustments
Push Button; Remote Teach
Storage Temperature (°C)
-25 to 75
Max Operating Temperature (°C)
50
Warm-up Time (minutes)
10
Feature: Clear Object Detection
Yes
SSI
No
Max Off-state Leakage Current (µA)
PNP: <50 @ 30 V dc; Push/Pull: N/A
Profibus
No
Supply Protection Circuitry
Protected against reverse polarity and transient overvoltages
Barrel Diameter (mm)
18
RS-485
No

Related documents Q4XTKLAF300-Q8 Specs
