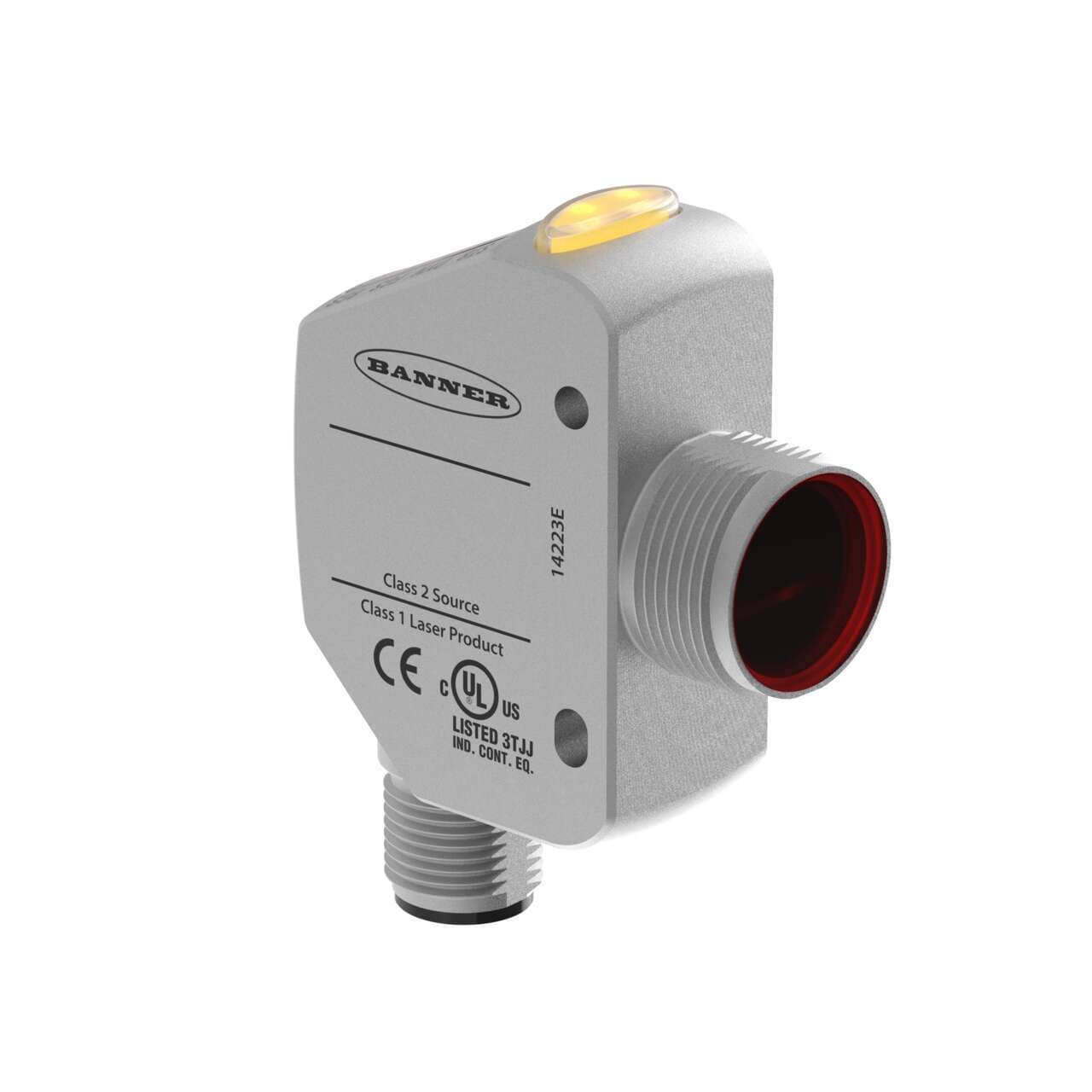

Q4XTULAF500-Q8 Banner Transformers

Product Details

• Weight68.0388 g
• Country Of OriginUS
• Product series / family name
  Q series
• Light Color
  Visible class 1 red Laser
• Degree of protection
  IP67 IP68 IP69K
• Main function
  Sensor (Photo-electric)
• Functions
  Class 1 Laser adjustable-field photo-electric sensor/transmitter TEACH mode
• Connection type
  Pre-equipped with 5-pin Euro-style M12 connector
• Equivalent to
  Q4XTULAF500Q8
• Design
  background / foreground suppression system
• Shape
  Rectangular
• Thread size
  M18
• Protection functions
  Overload Short-circuit
• Chemical resistance
  chemical-resistant
• Primary brand
  Banner Engineering
• Supply voltage (DC)
  12Vdc-30Vdc (24Vdc nom.)
• Sensing distance
  25...500mm
• Mounting mode
  Threaded mount
• Compliant with standard(s)
  CE
• Order code / Manufacturer SKU
  802875
Sub-range name
Q4X
Display
LED 4 digits display
Wavelength
655 nm
Analog outputs
1 x analog output (0-10Vdc)
Ambient air temperature for operation
-10...+50 °C
Material
Stainless steel housing Acrylic LED window
Alarm Output (mA)
100
Sensing Beam
Visible Red Laser
Input/Output
Analog
Sensing Beam Wavelength (nm)
655
Spot Size (@ Reference Distance)
2.0 mm x 0.8 mm @ 300 mm
Max Measurement Range
>100 mm - <=500 mm
Indicator
Display; LED(s)
Storage Temperature (°C)
-25 to 75
Minimum Window Size (mm)
2
Feature: Chemical Resistant
Yes
Power
DC
Analog Output Configuration
0-10 V dc
Sensing Mode (Detailed)
Background/Foreground Suppression
Power Supply
12-30 V dc
Number of Pins
5
Min Operating Temperature (°C)
-10
Analog Linearity (mm)
+/- 0.75 mm from 25 to 50 mm, 9.0 mm at 300 mm, 25.0 mm at 500 mm
1-wire Serial Interface
No
Device Type
Sensor
Housing Style
Rectangular w/M18 Mount
Max Sensing Distance (mm)
500
Temperature Effect (mm/°C)
+/- 0.05 mm/°C from 25 to 125 mm, +/- 0.35 mm/°C at 300 mm, +/- 1 mm/°C at 500 mm
Feature: Remote Teach
Yes
Profibus
No
Primary Housing Material
Stainless Steel
Adjustments
Push Button; Remote Teach
Max Operating Temperature (°C)
50
Barrel Diameter (mm)
18
Feature: Ecolab Certified
Yes
RS-485
No
Laser Classification
Class 1
Analog Resolution/Discrete Repeatability
25 mm to 100 mm: < 0.3; 100 mm to 300 mm: < 1; 300 mm to 500 mm: < 1.7
Minimum Sensing Distance (mm)
25
Output Protection
Protected against continuous overload and short circuit
PROFINET
No
Wireless
No
Sensing Mode (General)
Proximity
Vibration
MIL-STD-202G req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
Window Material
Acrylic
Max Ambient Light (Lux)
5000
Feature: Washdown Rated
Yes
SSI
No
Connection
Integral QD
Mechanical Shock
MIL-STD-202G, Meth. 213B, Cond. I (100G 6x along X, Y & Z axes, 18 total shocks) w/ sensor operating
Minimum Response Time (ms)
0.5
Power/Current Consumption (exclusive of load)
< 675 mW
IO Link
No
PC Configurable
No
Quick Disconnect Type
M12 (Euro)
IP Rating
IP67; IP68; IP69
Max Op. Relative Humidity Non-Condensing (%)
95 at 55°C
Laser Control
Yes
Feature: Timing (Hold/Delay)
No
RS-422
No
RS-232
No
Delay at Power-up (ms)
750
Analog Voltage Output Rating
2.5 kΩ min. load impedance
Warm-up Time (minutes)
10
Supply Protection Circuitry
Protected against reverse polarity and transient overvoltages
Common Ethernet Protocol
No
