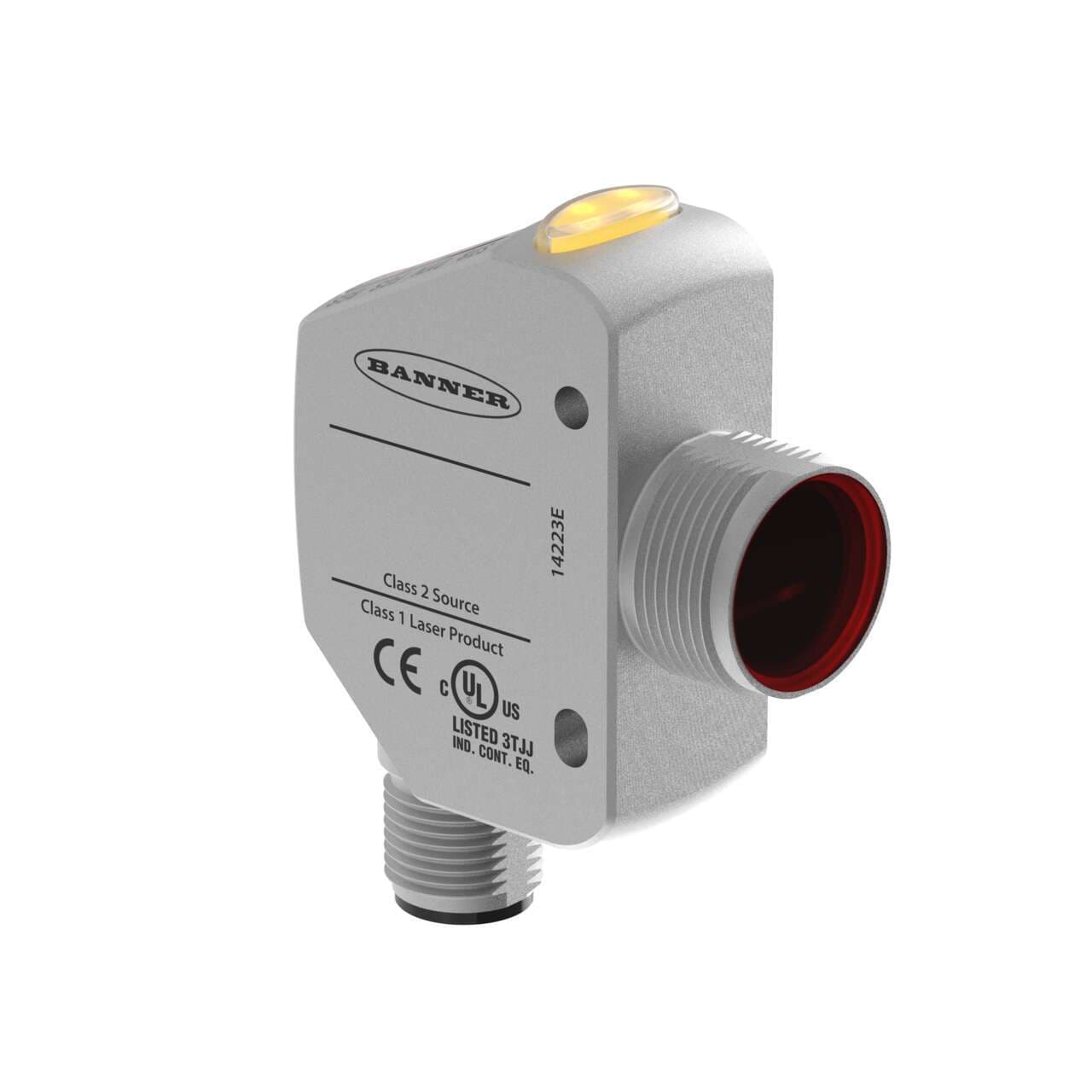

Q4XTBLAF100-Q8 Banner Proximity Sensors

Product Details

• Weight163.29312 g
• Country Of OriginUS
• Product series / family name
  Q series
• Design
  background / foreground suppression system
• Light Color
  Visible class 1 red Laser
• Sub-range name
  Q4X
• Shape
  Rectangular
• Connection type
  Pre-equipped with 5-pin Euro-style M12 connector
• Ambient air temperature for operation
  -10...+50 °C
• Chemical resistance
  chemical-resistant
• Primary brand
  Banner Engineering
• Supply voltage (DC)
  10Vdc-30Vdc (12Vdc / 24Vdc nom.)
• Thread size
  M18
• Mounting mode
  Threaded mount
• Material
  Stainless steel housing Acrylic LED window
• Equivalent to
  Q4XTBLAF100Q8
• Display
  LED 4 digits display
• Wavelength
  655 nm
• Digital outputs
  1 x digital output (PNP/NPN transistor)
• Protection functions
  Overload Short-circuit
Order code / Manufacturer SKU
91290
Main function
Sensor (Photo-electric)
Functions
Class 1 Laser adjustable-field photo-electric sensor TEACH mode
Sensing distance
25...100mm
Degree of protection
IP67 IP68 IP69K
Compliant with standard(s)
CE
Sensing Beam
Visible Red Laser
Max Sensing Distance (mm)
100
Number of Pins
5
IP Rating
IP67; IP68; IP69
Barrel Diameter (mm)
18
Feature: Washdown Rated
Yes
RS-485
No
1-wire Serial Interface
No
PC Configurable
No
Indicator
Display; LED(s)
Adjustments
Push Button; Remote Teach
Max Discrete (Switched) Output (mA)
100
Warm-up Time (minutes)
10
Power/Current Consumption (exclusive of load)
< 675 mW
Feature: Chemical Resistant
Yes
Wireless
No
Max Measurement Range
<= 100 mm
Housing Style
Rectangular w/M18 Mount
Minimum Sensing Distance (mm)
25
Quick Disconnect Type
M12 (Euro)
Delay at Power-up (ms)
750
Discrete (Switched) Outputs
Bipolar (NPN & PNP)
Output Saturation Voltage NPN Outputs
<1.0 V @ 100 mA
Device Type
Sensor
Power Supply
10-30 V dc
Temperature Effect (mm/°C)
+/- 0.05 mm/°C
Max Operating Temperature (°C)
50
Spot Size (@ Reference Distance)
1.8 mm x 0.7 mm @ 100 mm
Feature: Remote Teach
Yes
PROFINET
No
Primary Housing Material
Stainless Steel
Input/Output
Discrete
Output Protection
Protected against continuous overload and short circuit
Discrete Output Hysteresis (mm)
Automatically adjusted
Sensing Mode (Detailed)
Background/Foreground Suppression
Connection
Integral QD
Output Saturation Voltage PNP Outputs
<1.5 V @ 100 mA
Window Material
Acrylic
Alarm Output (mA)
100
RS-232
No
Power
DC
Analog Resolution/Discrete Repeatability
+/- 0.2
Mechanical Shock
MIL-STD-202G, Meth. 213B, Cond. I (100G 6x along X, Y & Z axes, 18 total shocks) w/ sensor operating
Min Operating Temperature (°C)
-10
Max Ambient Light (Lux)
5000
IO Link
No
Feature: Ecolab Certified
Yes
Sensing Mode (General)
Proximity
Laser Classification
Class 1
Sensing Beam Wavelength (nm)
655
Storage Temperature (°C)
-25 to 75
Max Off-state Leakage Current (µA)
5 @ 30 V dc
Minimum Window Size (mm)
0.2
RS-422
No
Profibus
No
Feature: Clear Object Detection
Yes
Vibration
MIL-STD-202G req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
Feature: Timing (Hold/Delay)
Yes
Laser Control
Yes
Common Ethernet Protocol
No
Minimum Response Time (ms)
1.5
Supply Protection Circuitry
Protected against reverse polarity and transient overvoltages
SSI
No
Max Op. Relative Humidity Non-Condensing (%)
95 at 55°C

Related documents Q4XTBLAF100-Q8 Specs
