Q4XTBLAF500-Q8 Banner Transformers
Part#:Q4XTBLAF500-Q8
Manufacturer:Banner
Alt. Part#:802595
Product Lifecycle:Active
Get a quick Quote!

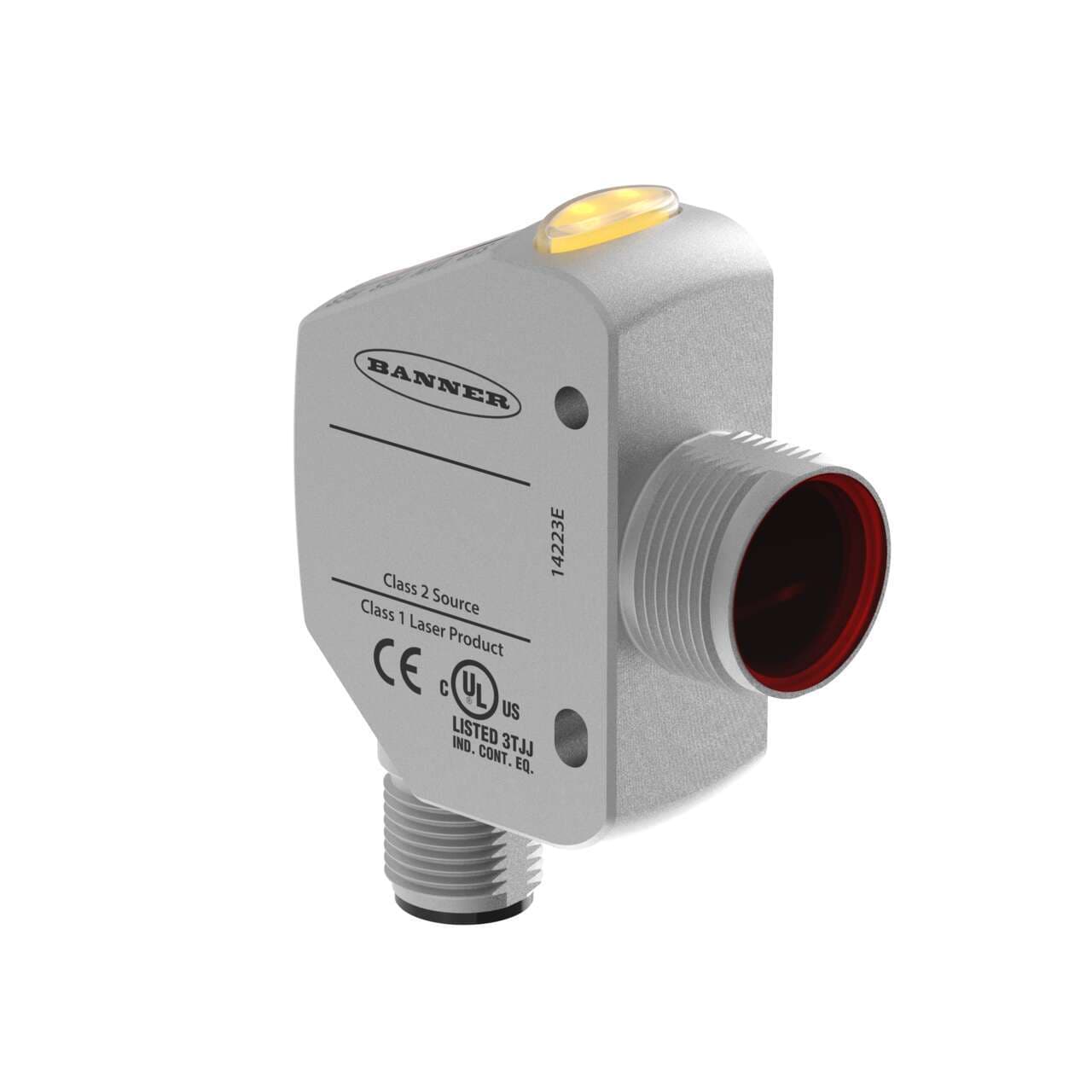

Q4X Series: Laser Adjustable Field; Range: 500 mm; Input: 10-30 V dc; Outputs: Bipolar: 1 NPN; 1 PNP; 5-pin M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Transformers that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the Q4XTBLAF500-Q8 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight158.7572 g
- Country Of OriginUS
- Sensing distance 25...500mm
- Shape Rectangular
- Material Stainless steel housing Acrylic LED window
- Protection functions Overload Short-circuit
- Main function Sensor (Photo-electric)
- Design background / foreground suppression system
- Thread size M18
- Mounting mode Threaded mount
- Chemical resistance chemical-resistant
- Sub-range name Q4X
- Light Color Visible class 1 red Laser
- Connection type Pre-equipped with 5-pin Euro-style M12 connector
- Compliant with standard(s) CE
- Product series / family name Q series
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Wavelength 655 nm
- Digital outputs 1 x digital output (PNP/NPN transistor)
- Ambient air temperature for operation -10...+50 °C
- Order code / Manufacturer SKU 802595
- Primary brand Banner Engineering
- Display LED 4 digits display
- Functions Class 1 Laser adjustable-field photo-electric sensor TEACH mode
- Degree of protection IP67 IP68 IP69K
- Equivalent to Q4XTBLAF500Q8
- Housing Style Rectangular w/M18 Mount
- Indicator Display; LED(s)
- Number of Pins 5
- IP Rating IP67; IP68; IP69
- Wireless No
- PC Configurable No
- Input/Output Discrete
- Adjustments Push Button; Remote Teach
- Output Protection Protected against continuous overload and short circuit
- Laser Classification Class 1
- Analog Resolution/Discrete Repeatability 25 mm to 50 mm: +/-0.5; 50 mm to 300 mm: +/- 1% of range
- Discrete (Switched) Outputs Bipolar (NPN & PNP)
- Min Operating Temperature (°C) -10
- Max Ambient Light (Lux) 5000
- Common Ethernet Protocol No
- RS-422 No
- Power DC
- Temperature Effect (mm/°C) +/- 0.05 mm/°C from 25 to 125 mm, +/- 0.35 mm/°C at 300 mm, +/- 1 mm/°C at 500 mm
- Max Op. Relative Humidity Non-Condensing (%) 95 at 55°C
- Warm-up Time (minutes) 10
- Power/Current Consumption (exclusive of load) < 675 mW
- Feature: Ecolab Certified Yes
- 1-wire Serial Interface No
- Max Measurement Range >100 mm - <=500 mm
- Sensing Mode (General) Proximity
- Delay at Power-up (ms) 750
- Mechanical Shock MIL-STD-202G, Meth. 213B, Cond. I (100G 6x along X, Y & Z axes, 18 total shocks) w/ sensor operating
- Window Material Acrylic
- Discrete Output Hysteresis (mm) Automatically adjusted
- Supply Protection Circuitry Protected against reverse polarity and transient overvoltages
- RS-232 No
- Quick Disconnect Type M12 (Euro)
- Output Saturation Voltage PNP Outputs <1.5 V @ 100 mA
- Max Operating Temperature (°C) 50
- Minimum Response Time (ms) 1.5
- Feature: Clear Object Detection Yes
- Feature: Timing (Hold/Delay) Yes
- RS-485 No
- Sensing Mode (Detailed) Background/Foreground Suppression
- Max Sensing Distance (mm) 500
- Vibration MIL-STD-202G req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
- Storage Temperature (°C) -25 to 75
- Barrel Diameter (mm) 18
- Feature: Washdown Rated Yes
- SSI No
- Sensing Beam Visible Red Laser
- Device Type Sensor
- Minimum Sensing Distance (mm) 25
- Minimum Window Size (mm) 0.4
- Feature: Remote Teach Yes
- PROFINET No
- Primary Housing Material Stainless Steel
- Power Supply 10-30 V dc
- Output Saturation Voltage NPN Outputs <1.0 V @ 100 mA
- Alarm Output (mA) 100
- Laser Control Yes
- IO Link No
- Connection Integral QD
- Sensing Beam Wavelength (nm) 655
- Max Discrete (Switched) Output (mA) 100
- Spot Size (@ Reference Distance) 2.0 mm x 0.8 mm @ 300 mm
- Max Off-state Leakage Current (µA) 5 @ 30 V dc
- Feature: Chemical Resistant Yes
- Profibus No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Q4XTBLAF500-Q8 Description
Banner Engineering Q4XTBLAF500-Q8 is a Class 1 laser adjustable-field photo-electric sensor designed for precise detection tasks. It features an M18 threaded mount for secure installation and operates within an ambient air temperature range of -10 to +50°C. This sensor is equipped with a background/foreground suppression system that can be adjusted via TEACH mode, ensuring targeted detection. It connects through a pre-equipped 5-pin Euro-style M12 connector, fitting seamlessly into various industrial setups. Part of the Q4X series, it boasts a high degree of protection with ratings of IP67, IP68, and IP69K, making it suitable for harsh environments. The sensor's chemical-resistant stainless steel housing and acrylic LED window enhance its durability. It operates on a supply voltage of 10Vdc to 30Vdc, with nominal values of 12Vdc and 24Vdc. The Q4XTBLAF500-Q8 has a rectangular shape and offers a sensing distance range of 25 to 500mm. It emits a visible class 1 red laser with a wavelength of 655 nm for precise detection. Additionally, it includes 1 x digital output (PNP/NPN transistor) and is equipped with protection functions against overload and short-circuit, ensuring reliable operation in a variety of industrial applications.
