Q45AD9R W/30 Banner Proximity Sensors

Banner Q45AD9R W/30 Q45 NAMUR: Receiver; Range: 6 m; Input: 5-15 V dc; Output: NAMUR; 9 m (30 ft) Cable
Banner

Part#:Q45AD9R W/30

Manufacturer:Banner

Alt. Part#:40814

Product Lifecycle:Active

Get a quick Quote!

Q45 NAMUR: Receiver; Range: 6 m; Input: 5-15 V dc; Output: NAMUR; 9 m (30 ft) Cable

About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the Q45AD9R W/30 Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight707.60352 g
  • Country Of OriginUS
  • Primary Housing Material
    Thermoplastic
  • Special Feature: Intrinsically Safe
    Yes
  • Lens Material
    Acrylic
  • Feature: Chemical Resistant
    No
  • Power
    DC
  • Operation
    Light/Dark Operate
  • Number of Pins
    2
  • Feature: Hazardous Area
    Yes
  • Max Sensing Distance (mm)
    6000
  • Power Supply/Supply Voltage
    5-15 V dc
  • NEMA Rating
    NEMA 6P
  • Barrel Diameter (mm)
    30
  • Feature: Audible
    No
  • Sensing Mode (General)
    Opposed
  • Special Feature: Water Detection
    No
  • Max Op. Temp. (°C)
    70
  • Feature: Timing (Hold/Delay)
    No
  • Housing Style
    Rectangular
  • Outputs
    Constant Current
  • IP Rating
    IP67
  • Opposed Mode Emitter/Receiver
    Receiver
  • Sensing Mode (Detailed)
    Receiver
  • Min Op. Temp. (°C)
    -40
  • Special Feature: Remote Teach
    No
  • Adjustments
    Potentiometer
  • Input/Output
    Discrete
  • Output response time (ms)
    2 ON/0.4 OFF
  • Max Op. Relative Humidity [%]
    90% @ 50°C
  • IO Link
    No
  • Cable Length (m)
    9
  • Connection
    Cable
  • Repeatability (µs)
    N/A
  • Feature: Encapsulated
    No
  • Sensing Beam
    Infrared LED
  • Quick Disconnect Type
    No QD
  • Delay at Power-up (ms)
    N/A
  • Indicator
    LEDs
  • DeviceNet
    No

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

Q45AD9R W/30 Description

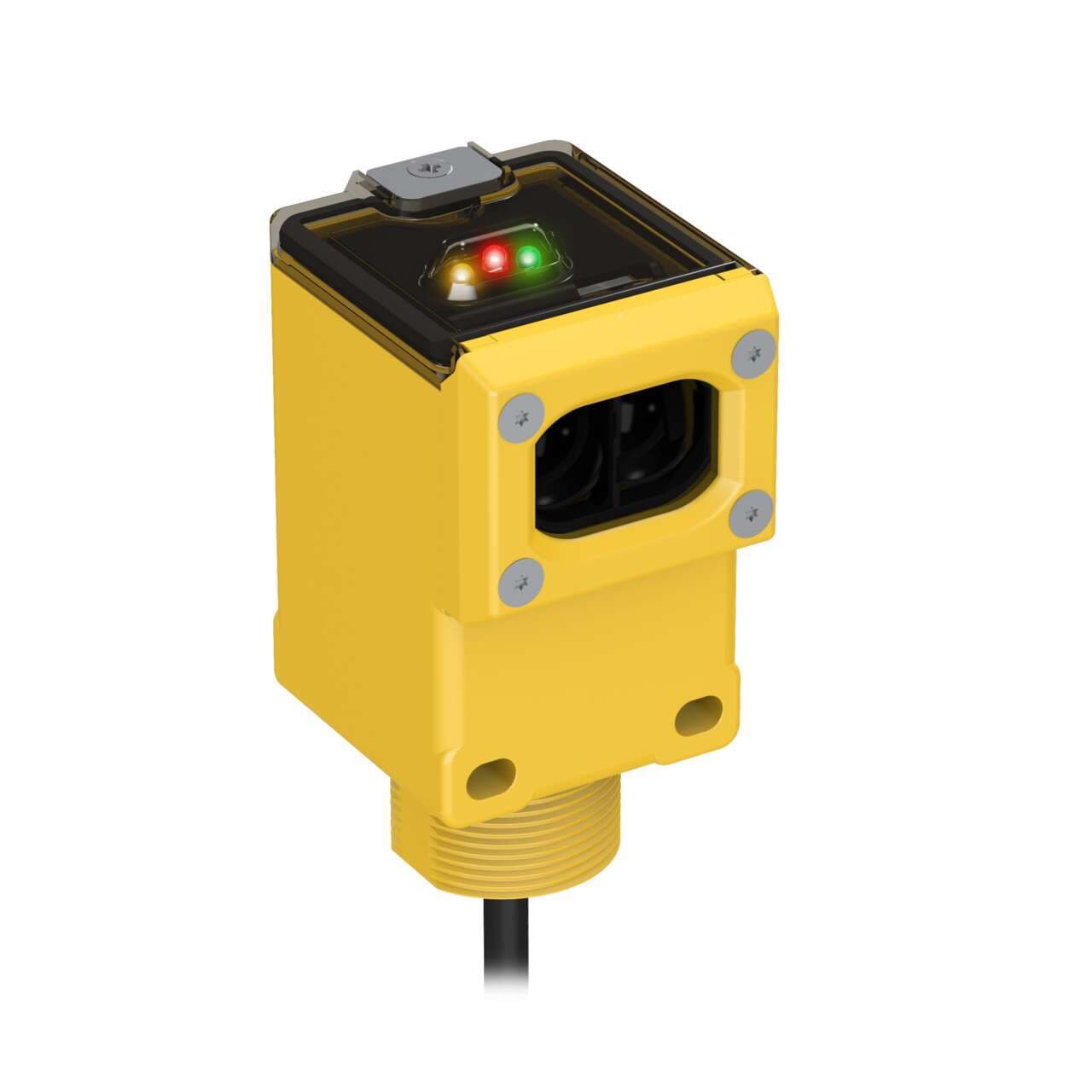

Banner Engineering Q45AD9R W/30 is an intrinsically-safe photo-electric sensor designed for through-beam system applications with an opposed mode potentiometer adjustment. It features an M30 threaded mount for secure installation and is equipped with a pre-wired 30ft / 9m cable that terminates with bare end flying leads for easy connection. This sensor operates within an ambient air temperature range of -40 to +70°C and is housed in a thermoplastic material with an acrylic lens, ensuring durability. It belongs to the Q45AD9 series and offers a sensing distance of up to 6m with an infrared light source at a wavelength of 880 nm. The Q45AD9R W/30 operates on a supply voltage of 5Vdc to 15Vdc, with 12Vdc nominal, and features a rectangular shape. It provides one digital output (NAMUR) with a response time of 2ms for ON and 4ms for OFF. This sensor supports both Light-ON and Dark-ON operating modes and is protected to IP67 NEMA 6P standards, making it suitable for a wide range of industrial environments.

Related documents Q45AD9R W/30 Specs

Q45AD9R W/30 53855.pdf
