Q45AD9D W/30 Banner Proximity Sensors

Banner Q45AD9D W/30 Q45 NAMUR: Diffuse; Range: 300 mm; Input: 5-15 V dc; Output: NAMUR; 9 m (30 ft) Cable
Banner

Part#:Q45AD9D W/30

Manufacturer:Banner

Alt. Part#:40817

Product Lifecycle:Active

Get a quick Quote!

Q45 NAMUR: Diffuse; Range: 300 mm; Input: 5-15 V dc; Output: NAMUR; 9 m (30 ft) Cable

About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the Q45AD9D W/30 Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight734.81904 g
  • Country Of OriginUS
  • Primary Housing Material
    Thermoplastic
  • Output response time (ms)
    5
  • Barrel Diameter (mm)
    30
  • Housing Style
    Rectangular
  • Sensing Beam
    Infrared LED
  • Outputs
    Constant Current
  • Quick Disconnect Type
    No QD
  • Max Sensing Distance (mm)
    300
  • Special Feature: Remote Teach
    No
  • Adjustments
    Potentiometer
  • IO Link
    No
  • Power
    DC
  • Input/Output
    Discrete
  • Power Supply/Supply Voltage
    5-15 V dc
  • Special Feature: Intrinsically Safe
    Yes
  • Cable Length (m)
    9
  • Special Feature: Water Detection
    No
  • Lens Material
    Acrylic
  • DeviceNet
    No
  • Sensing Mode (Detailed)
    Diffuse
  • Operation
    Light/Dark Operate
  • IP Rating
    IP67
  • Feature: Audible
    No
  • Sensing Mode (General)
    Proximity
  • Connection
    Cable
  • Delay at Power-up (ms)
    N/A
  • Opposed Mode Emitter/Receiver
    N/A
  • Max Op. Temp. (°C)
    70
  • NEMA Rating
    NEMA 6P
  • Feature: Timing (Hold/Delay)
    No
  • Feature: Encapsulated
    No
  • Feature: Hazardous Area
    Yes
  • Max Op. Relative Humidity [%]
    90% @ 50°C
  • Feature: Chemical Resistant
    No
  • Repeatability (µs)
    N/A
  • Indicator
    LEDs
  • Min Op. Temp. (°C)
    -40
  • Number of Pins
    2

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

Q45AD9D W/30 Description

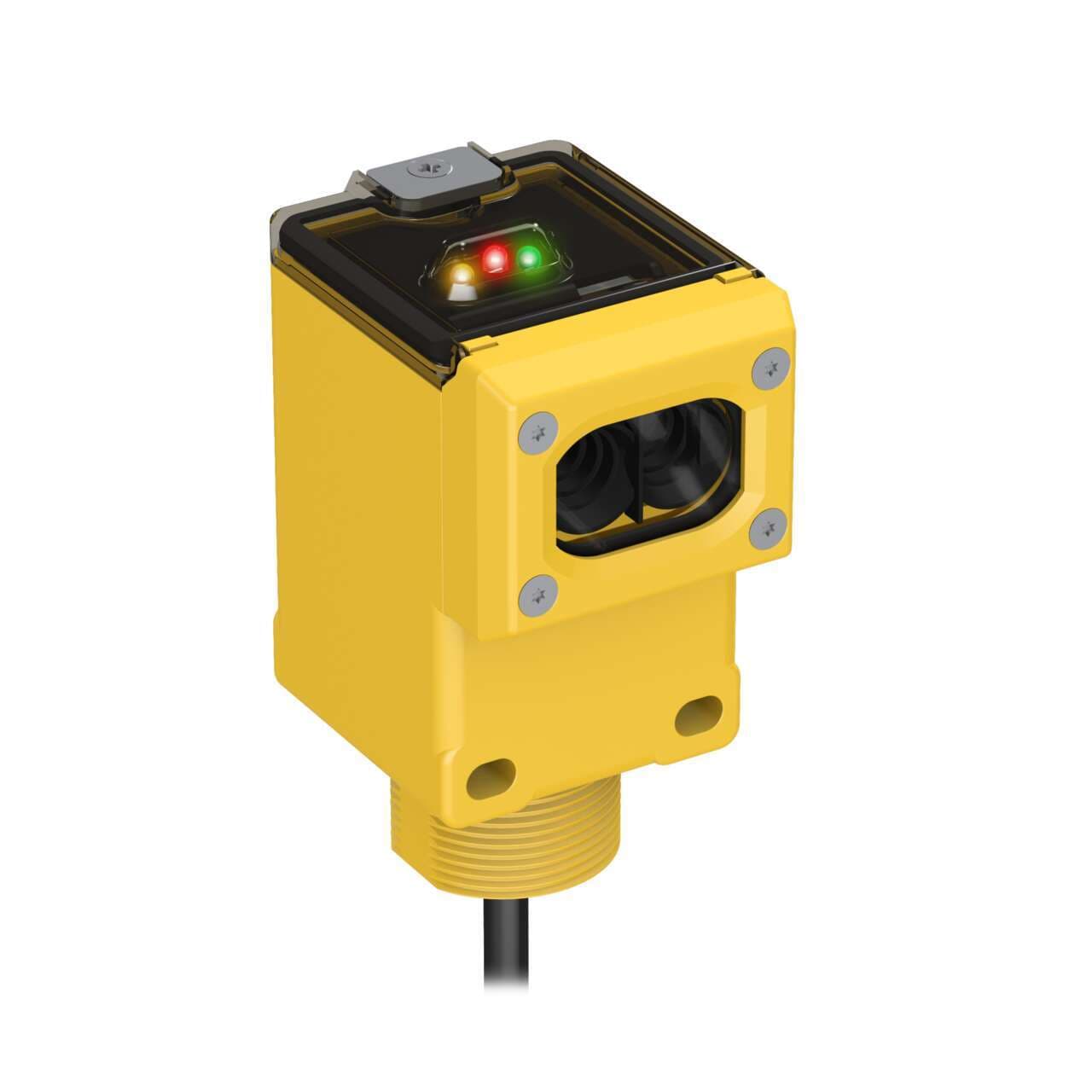

Banner Engineering Q45AD9D W/30 is an intrinsically-safe photo-electric sensor designed for a variety of applications requiring precise detection. It features a diffuse mode with potentiometer adjustment and is equipped with a pre-wired 30ft / 9m cable that terminates with bare end flying leads for easy installation. This sensor operates within an ambient air temperature range of -40 to +70°C and is housed in a thermoplastic casing with an acrylic lens, ensuring durability in challenging environments. The Q45AD9D W/30, part of the Q45AD9 series, offers a sensing distance of 300mm and utilizes infrared light with a wavelength of 880 nm for detection. It supports both Light-ON and Dark-ON operating modes and provides a single digital output (NAMUR) with a quick response time of 5ms. This model is designed for M30 threaded mount installation and is protected against ingress with an IP67 NEMA 6P rating. It requires a supply voltage of 5Vdc to 15Vdc, with 12Vdc nominal, to operate efficiently.

Related documents Q45AD9D W/30 Specs

Q45AD9D W/30 53855.pdf
