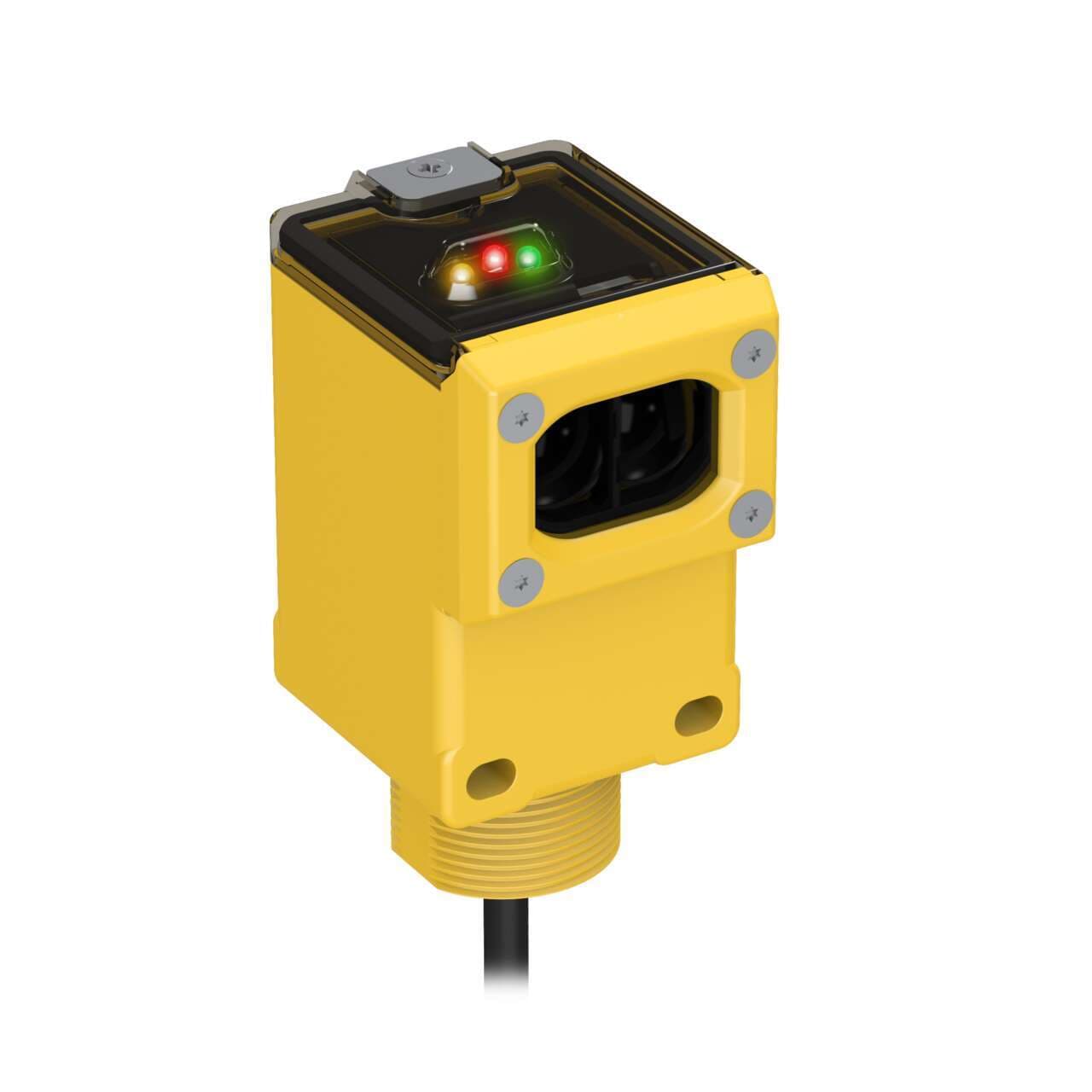

Q45AD9DL Banner Proximity Sensors
Part#:Q45AD9DL
Manufacturer:Banner
Alt. Part#:37618
Product Lifecycle:Active
Get a quick Quote!
Q45 NAMUR: Diffuse; Range: 1 m; Input: 5-15 V dc; Output: NAMUR; 2 m (6.5 ft) Cable
About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the Q45AD9DL Banner price in the box on the right side or send a quick quote.
Product Details
- Weight308.44256 g
- Country Of OriginUS
- Sub-range name Q45AD9
- Light Color Infrared (IR)
- Mounting mode Threaded mount
- Ambient air temperature for operation -40...+70 °C
- Primary brand Banner Engineering
- Sensing distance 1m
- Connection type Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
- Product series / family name Q series
- Design diffuse mode
- Thread size M30
- Response time 5ms / 0.005 s
- Material thermoplastic housing Acrylic lns.
- Main function Sensor (Photo-electric)
- Functions Intrinsically-safe photo-electric sensor green LED (power ON) red LED (signal) yellow LED (output state) potentiometer adjustment
- Shape Rectangular
- Digital outputs 1 x digital output (NAMUR)
- Order code / Manufacturer SKU 37618
- Supply voltage (DC) 5Vdc-15Vdc (12Vdc nom.)
- Wavelength 880 nm
- Operating mode Light-ON Dark-ON
- Compliant with standard(s) ATEX FM cCSAus CE
- Degree of protection IP67 NEMA 6P
- Cable Length (m) 2
- Connection Cable
- Special Feature: Water Detection No
- Lens Material Acrylic
- Sensing Mode (Detailed) Diffuse
- Special Feature: Intrinsically Safe Yes
- Adjustments Potentiometer
- Housing Style Rectangular
- Outputs Constant Current
- IP Rating IP67
- DeviceNet No
- Primary Housing Material Thermoplastic
- Max Op. Temp. (°C) 70
- NEMA Rating NEMA 6P
- Power DC
- Power Supply/Supply Voltage 5-15 V dc
- Repeatability (µs) N/A
- Opposed Mode Emitter/Receiver N/A
- Sensing Beam Infrared LED
- Output response time (ms) 5
- Number of Pins 2
- Feature: Timing (Hold/Delay) No
- Max Sensing Distance (mm) 1000
- Quick Disconnect Type No QD
- Max Op. Relative Humidity [%] 90% @ 50°C
- IO Link No
- Input/Output Discrete
- Operation Light/Dark Operate
- Delay at Power-up (ms) N/A
- Indicator LEDs
- Sensing Mode (General) Proximity
- Min Op. Temp. (°C) -40
- Special Feature: Remote Teach No
- Barrel Diameter (mm) 30
- Feature: Encapsulated No
- Feature: Audible No
- Feature: Chemical Resistant No
- Feature: Hazardous Area Yes
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Q45AD9DL Description
Banner Engineering Q45AD9DL is an intrinsically-safe photo-electric sensor designed for a variety of applications requiring precise detection. This sensor features a diffuse mode with potentiometer adjustment and is equipped with a pre-wired 6.5ft / 2m cable that terminates with bare end flying leads for easy installation. It is designed for mounting using an M30 threaded mount. The Q45AD9DL operates within an ambient air temperature range of -40 to +70°C and offers a sensing distance of 1m. It is housed in a thermoplastic casing with an acrylic lens, ensuring durability and longevity. This sensor is protected to IP67 NEMA 6P standards, making it suitable for use in demanding environments. It operates on a supply voltage of 5Vdc to 15Vdc, with a nominal voltage of 12Vdc. The Q45AD9DL emits infrared light at a wavelength of 880 nm and can operate in both Light-ON and Dark-ON modes. It features a single digital output (NAMUR) and boasts a quick response time of 5ms / 0.005 s.
