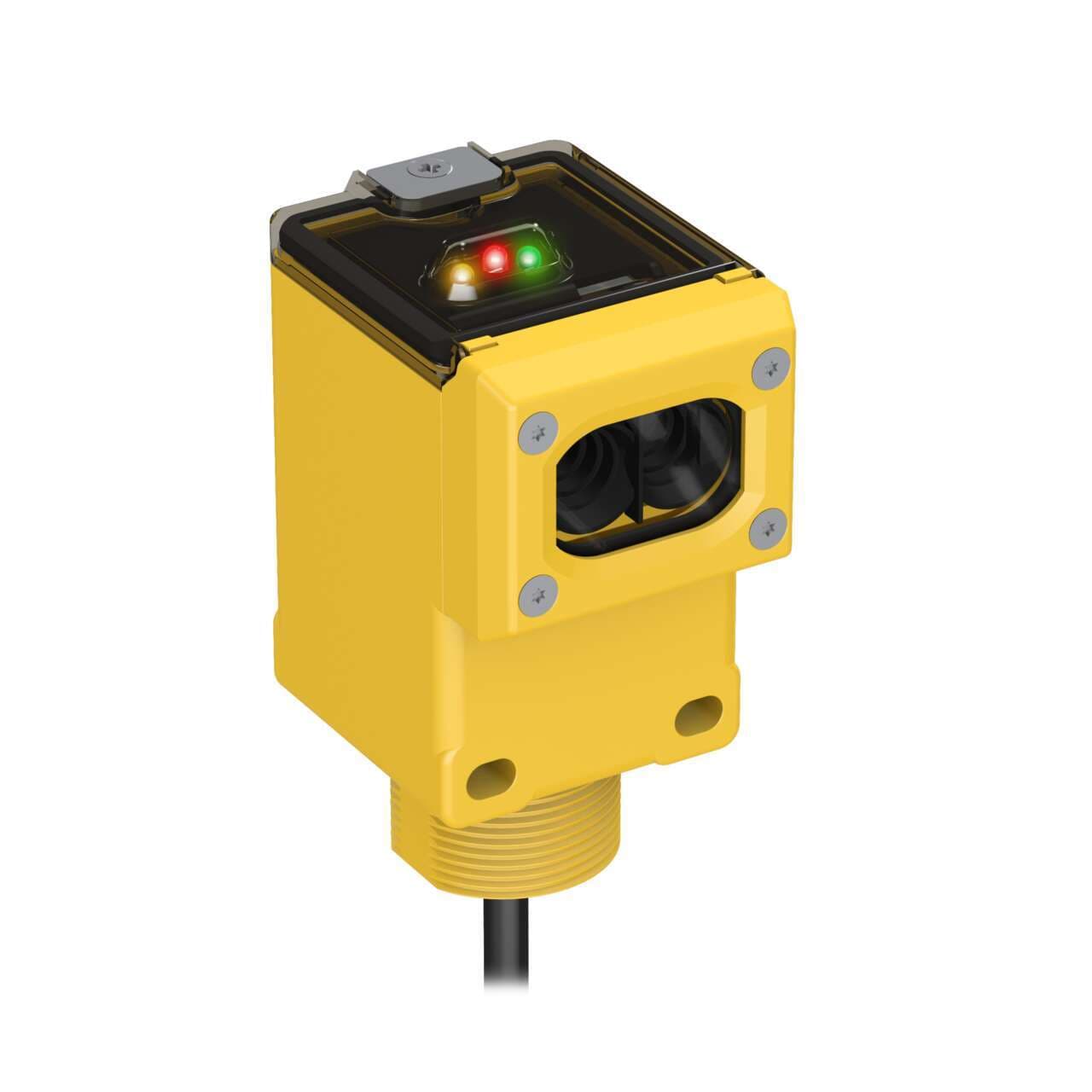

Q45AD9D Banner Proximity Sensors
Part#:Q45AD9D
Manufacturer:Banner
Alt. Part#:37617
Product Lifecycle:Active
Get a quick Quote!
Q45 NAMUR: Diffuse; Range: 300 mm; Input: 5-15 V dc; Output: NAMUR; 2 m (6.5 ft) Cable
About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the Q45AD9D Banner price in the box on the right side or send a quick quote.
Product Details
- Weight308.44256 g
- Country Of OriginUS
- Main function Sensor (Photo-electric)
- Sensing distance 300mm
- Wavelength 880 nm
- Product series / family name Q series
- Design diffuse mode
- Thread size M30
- Degree of protection IP67 NEMA 6P
- Sub-range name Q45AD9
- Shape Rectangular
- Connection type Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
- Ambient air temperature for operation -40...+70 °C
- Order code / Manufacturer SKU 37617
- Light Color Infrared (IR)
- Mounting mode Threaded mount
- Digital outputs 1 x digital output (NAMUR)
- Response time 5ms / 0.005 s
- Primary brand Banner Engineering
- Functions Intrinsically-safe photo-electric sensor green LED (power ON) red LED (signal) yellow LED (output state) potentiometer adjustment
- Supply voltage (DC) 5Vdc-15Vdc (12Vdc nom.)
- Operating mode Light-ON Dark-ON
- Material thermoplastic housing Acrylic lns.
- Compliant with standard(s) ATEX FM cCSAus CE
- Power DC
- Max Op. Temp. (°C) 70
- IP Rating IP67
- Feature: Encapsulated No
- Sensing Beam Infrared LED
- Outputs Constant Current
- Special Feature: Remote Teach No
- Max Op. Relative Humidity [%] 90% @ 50°C
- Feature: Hazardous Area Yes
- Sensing Mode (General) Proximity
- Housing Style Rectangular
- Primary Housing Material Thermoplastic
- Cable Length (m) 2
- Input/Output Discrete
- Min Op. Temp. (°C) -40
- Sensing Mode (Detailed) Diffuse
- Quick Disconnect Type No QD
- Max Sensing Distance (mm) 300
- Delay at Power-up (ms) N/A
- DeviceNet No
- Opposed Mode Emitter/Receiver N/A
- Lens Material Acrylic
- IO Link No
- Operation Light/Dark Operate
- Number of Pins 2
- Indicator LEDs
- Power Supply/Supply Voltage 5-15 V dc
- Output response time (ms) 5
- Feature: Timing (Hold/Delay) No
- Connection Cable
- Special Feature: Intrinsically Safe Yes
- Repeatability (µs) N/A
- Barrel Diameter (mm) 30
- Special Feature: Water Detection No
- Feature: Chemical Resistant No
- NEMA Rating NEMA 6P
- Adjustments Potentiometer
- Feature: Audible No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Q45AD9D Description
Banner Engineering Q45AD9D is an intrinsically-safe photo-electric sensor designed for a variety of applications requiring precise detection. This sensor features a diffuse mode with potentiometer adjustment and is equipped with a pre-wired 6.5ft / 2m cable that terminates with bare end flying leads for easy installation. It is designed for mounting via an M30 threaded mount and operates within an ambient air temperature range of -40 to +70°C. The Q45AD9D, part of the Q45AD9 series, offers a degree of protection rated at IP67 NEMA 6P, ensuring durability in harsh environments. It operates on a supply voltage range of 5Vdc to 15Vdc, with a nominal voltage of 12Vdc. The sensor's rectangular shape is constructed from a thermoplastic housing with an acrylic lens, capable of sensing distances up to 300mm. It utilizes infrared (IR) light with a wavelength of 880 nm and can operate in both Light-ON and Dark-ON modes. The sensor provides a single digital output (NAMUR) and boasts a quick response time of 5ms / 0.005 s.
Related documents Q45AD9D Specs
