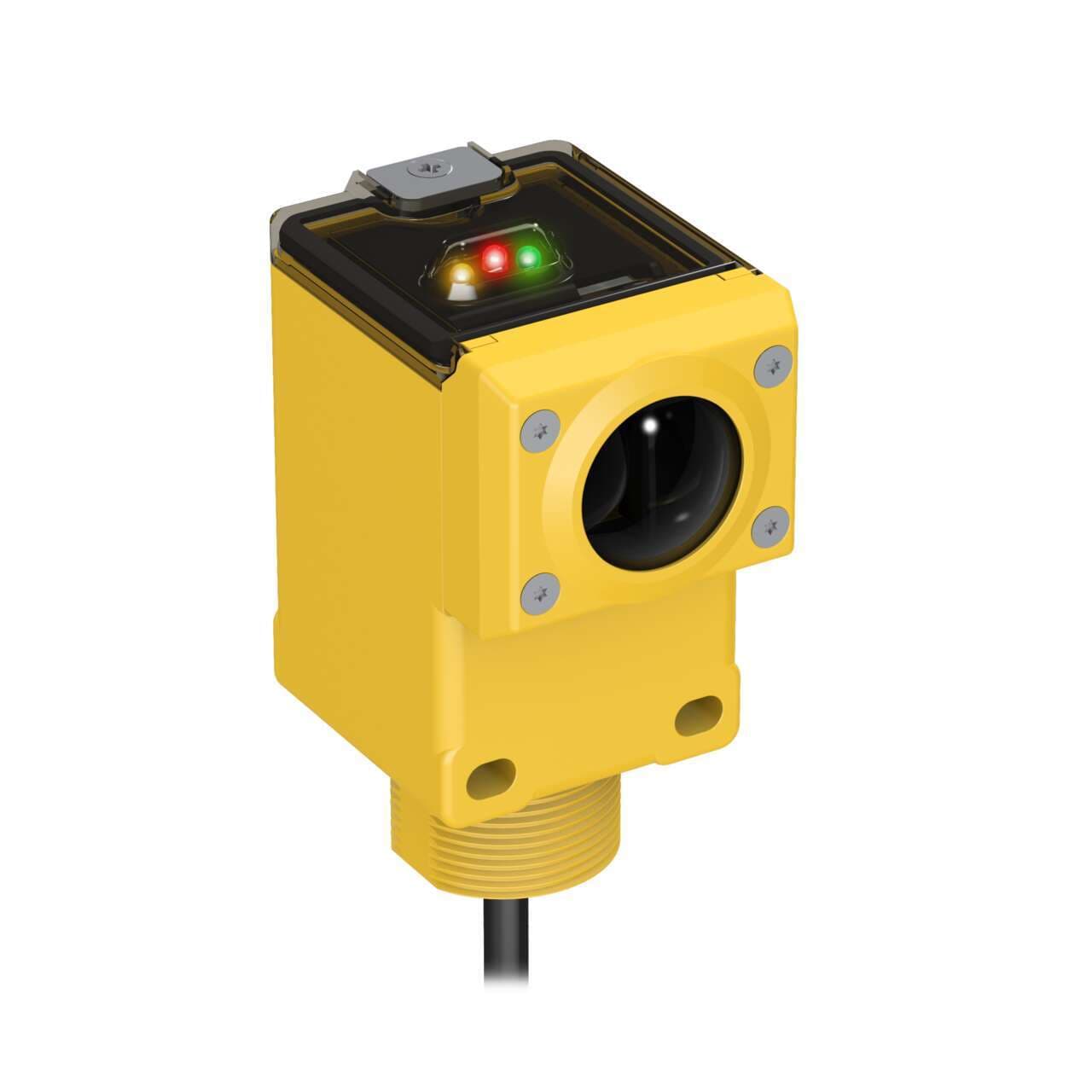

Q45AD9CV4 Banner Proximity Sensors
Part#:Q45AD9CV4
Manufacturer:Banner
Alt. Part#:37624
Product Lifecycle:Active
Get a quick Quote!
Q45 NAMUR: Convergent; Focal Point: 100 mm; Input: 5-15 V dc; Output: NAMUR; 2 m (6.5 ft) Cable
About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the Q45AD9CV4 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight335.65808 g
- Country Of OriginUS
- Primary brand Banner Engineering
- Functions Intrinsically-safe photo-electric sensor green LED (power ON) red LED (signal) yellow LED (output state) potentiometer adjustment
- Light Color Visible red
- Digital outputs 1 x digital output (NAMUR)
- Compliant with standard(s) ATEX FM cCSAus CE
- Main function Sensor (Photo-electric)
- Design convergent mode
- Connection type Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
- Sub-range name Q45AD9
- Supply voltage (DC) 5Vdc-15Vdc (12Vdc nom.)
- Shape Rectangular
- Thread size M30
- Mounting mode Threaded mount
- Degree of protection IP67 NEMA 6P
- Product series / family name Q series
- Sensing distance 100mm
- Wavelength 680 nm
- Material thermoplastic housing Acrylic lns.
- Ambient air temperature for operation -40...+70 °C
- Order code / Manufacturer SKU 37624
- Operating mode Light-ON Dark-ON
- Response time 5ms / 0.005 s
- Connection Cable
- Max Sensing Distance (mm) 100
- Repeatability (µs) N/A
- Feature: Timing (Hold/Delay) No
- Input/Output Discrete
- Min Op. Temp. (°C) -40
- IP Rating IP67
- Delay at Power-up (ms) N/A
- Sensing Mode (Detailed) Convergent
- Primary Housing Material Thermoplastic
- Operation Light/Dark Operate
- NEMA Rating NEMA 6P
- Quick Disconnect Type No QD
- Sensing Beam Visible Red LED
- Special Feature: Remote Teach No
- Lens Material Acrylic
- Sensing Mode (General) Proximity
- Power Supply/Supply Voltage 5-15 V dc
- Special Feature: Water Detection No
- Adjustments Potentiometer
- Feature: Encapsulated No
- Cable Length (m) 2
- Max Op. Temp. (°C) 70
- Sensing Beam Wavelength 680
- Barrel Diameter (mm) 30
- Housing Style Rectangular
- Outputs Constant Current
- Special Feature: Intrinsically Safe Yes
- Number of Pins 2
- DeviceNet No
- Power DC
- Output response time (ms) 5
- Max Op. Relative Humidity [%] 90% @ 50°C
- Feature: Audible No
- Indicator LEDs
- Feature: Chemical Resistant No
- Opposed Mode Emitter/Receiver N/A
- IO Link No
- Feature: Hazardous Area Yes
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Q45AD9CV4 Description
Banner Engineering Q45AD9CV4 is an intrinsically-safe photo-electric sensor designed for precise detection tasks. It features a convergent mode with potentiometer adjustment and is equipped with a pre-wired 6.5ft / 2m cable that terminates with bare end flying leads for easy installation. This sensor operates within an ambient air temperature range of -40 to +70°C and is housed in a thermoplastic casing with an acrylic lens, ensuring durability. It offers a sensing distance of 100mm and utilizes visible red light with a wavelength of 680 nm for detection. The Q45AD9CV4 operates in both Light-ON and Dark-ON modes, providing flexibility for various applications. It has a digital output (NAMUR) and boasts a quick response time of 5ms / 0.005 s. This model is part of the Q45AD9 series and is designed with an M30 threaded mount, ensuring secure installation. It operates on a supply voltage of 5Vdc-15Vdc (12Vdc nom.) and is protected against ingress with an IP67 NEMA 6P rating, making it suitable for challenging environments.
