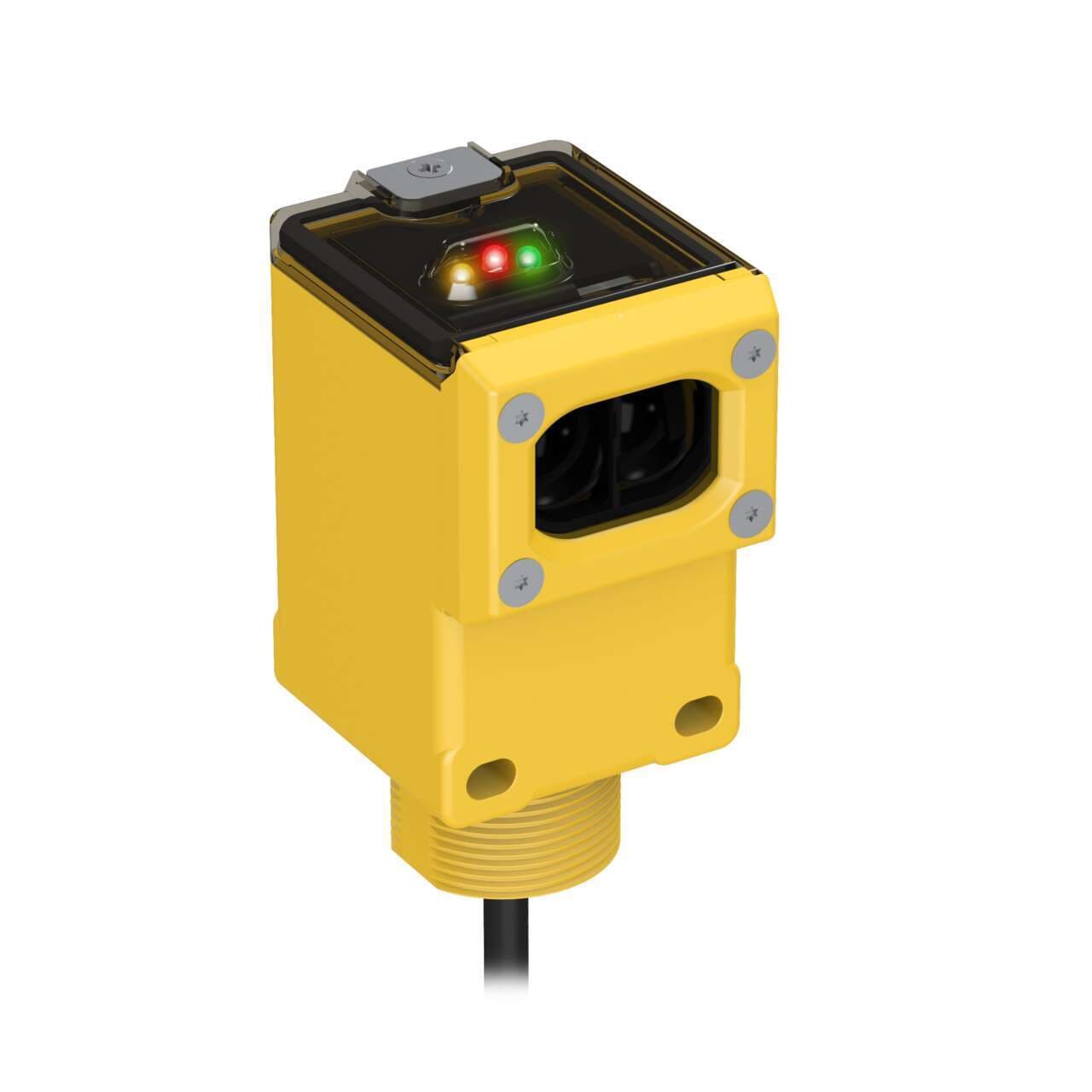

Q45AD9LP W/30 Banner Proximity Sensors
Part#:Q45AD9LP W/30
Manufacturer:Banner
Alt. Part#:40816
Product Lifecycle:Active
Get a quick Quote!
Q45 NAMUR: Polarized Retro; Range: 6 m; Input: 5-15 V dc; Output: NAMUR; 9 m (30 ft) Cable
About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the Q45AD9LP W/30 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight725.7472 g
- Country Of OriginUS
- Housing Style Rectangular
- Quick Disconnect Type No QD
- Special Feature: Remote Teach No
- Max Op. Relative Humidity [%] 90% @ 50°C
- Feature: Chemical Resistant No
- Connection Cable
- Special Feature: Intrinsically Safe Yes
- NEMA Rating NEMA 6P
- Indicator LEDs
- DeviceNet No
- Sensing Mode (Detailed) Polarized
- Max Sensing Distance (mm) 6000
- Output response time (ms) 5
- Repeatability (µs) N/A
- Opposed Mode Emitter/Receiver N/A
- Power DC
- Power Supply/Supply Voltage 5-15 V dc
- Delay at Power-up (ms) N/A
- Number of Pins 2
- Feature: Timing (Hold/Delay) No
- Sensing Beam Visible Red LED
- Outputs Constant Current
- Operation Light/Dark Operate
- IP Rating IP67
- Barrel Diameter (mm) 30
- Cable Length (m) 9
- Min Op. Temp. (°C) -40
- Feature: Encapsulated No
- Primary Housing Material Thermoplastic
- Special Feature: Water Detection No
- Lens Material Acrylic
- Feature: Hazardous Area Yes
- Sensing Mode (General) Retroreflective
- Input/Output Discrete
- Max Op. Temp. (°C) 70
- Sensing Beam Wavelength 680
- Adjustments Potentiometer
- Feature: Audible No
- IO Link No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Q45AD9LP W/30 Description
Banner Engineering Q45AD9LP W/30 is an intrinsically-safe polarized photo-electric sensor designed for precise detection tasks. It features a retro-reflective mode with potentiometer adjustment and is equipped with a pre-wired 30ft / 9m cable that terminates with bare end flying leads for easy installation. This sensor operates within an ambient air temperature range of -40 to +70°C and is housed in a thermoplastic casing with an acrylic lens, ensuring durability. It offers a sensing distance of up to 6m and utilizes visible red light with a wavelength of 680 nm for detection. The Q45AD9LP W/30 operates in both Light-ON and Dark-ON modes, providing flexibility for various applications. It has a quick response time of 5ms / 0.005 s and includes one digital output (NAMUR) for connectivity. This model is designed for M30 threaded mount installation and boasts an IP67 NEMA 6P degree of protection, making it suitable for challenging environments. It requires a supply voltage of 5Vdc to 15Vdc, with 12Vdc nominal.
